S-K1300 Initial Assessment & Technical Report Summary for the Cove Project, Lander County, Nevada Effective Date: December 31, 2024 Report Date: March 26, 2025 Prepared for: i-80 Gold Corp. 5190 Neil Road, Suite 460 Reno, Nevada 89502 Prepared By: Practical Mining LLC. TR Raponi Consulting Ltd. Montgomery & Associates


 Page ii .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



This page intentionally left blank.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page iii . 



Date and Signature Page

The undersigned prepared this Technical Report Summary (TRS) report, titled: S-K1300 Initial Assessment & Technical Report Summary for the Cove Project, Lander County, Nevada, dated the 26th day of March 2025, with an effective date of December 31, 2024, in support of i-80 Gold Corporations initial S-K 1300 disclosure of Mineral Resource estimates for the Cove Project.

Dated this March 26, 2025

/s/ Practical Mining LLC

Practical Mining LLC

495 Idaho Street, Suite 205

Elko, Nevada 89815, USA

/s/ T.R. Raponi Consulting Ltd.

T.R. Raponi Consulting Ltd.

15-223 Rebecca Street

Oakville, ON Canada L6K 3Y2

/s/ Montgomery & Associates

Montgomery & Associates

132 S. State Street

Salt Lake City, Utah 84111





 Practical Mining LLC   March 26, 2025 


 Page iv .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



This page intentionally left blank.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page v . 



Table of Contents



Date and Signature Page

     iii

Table of Contents

     v

List of Tables

     xi

List of Figures

     xiv

List of Abbreviations

     xvii

1.  Summary

     18

1.1.   Introduction

     18

1.2.   Property Description

     19

1.3.   Geology and Mineral Resource

     19

1.4.   Metallurgical Testing and Processing

     21

1.5.   Mining, Infrastructure, and Project Schedule

     22

1.6.   Economic Analysis

     23

1.7.   Conclusions

     25

1.8.   Recommendations

     27

2.  Introduction

     29

2.1.   Registrant for Whom the Technical Report Summary was Prepared

     29

2.2.   Terms of Reference and Purpose of this Technical Report

     29

2.3.   Sources of Information

     29

2.4.   Details of Inspection

     29

2.5.   Report Version

     30

2.6.   Units of Measure

     30

2.7.   Coordinate Datum

     31

2.8.   Mineral Resource and Mineral Reserve Definitions

     31

2.9.   Qualified Person

     34

3.  Property Description and Location

     35

3.1.   Property Description

     35

3.2.   Status of Mineral Titles

     36

3.3.   Property Holding Costs

     39





 Practical Mining LLC   March 26, 2025 


 Page vi .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



3.4.   Environmental Liabilities

     40

3.5.   Permits/Licenses

     40

4.  Accessibility, Climate, Local Resources, Infrastructure, and Physiography

     41

4.1.   Accessibility

     41

4.2.   Climate

     41

4.3.   Local Resources

     41

4.4.   Infrastructure

     41

4.5.   Physiography

     42

5.  History

     44

5.1.   Previous Owners

     44

5.2.   Historic Exploration

     44

5.3.   Historic Resource Estimates

     45

5.4.   Historic Mining

     45

6.  Geologic Setting, Mineralization and Deposit

     48

6.1.   Regional Geology

     48

6.2.   Local Geology

     49

6.3.   Structural Geology

     55

6.4.   Mineralization Controls

     56

6.5.   Post Mineral Faulting

     57

6.6.   Mineralization

     57

6.7.   Deposit Types

     60

7.  Exploration

     61

7.1.    Geologic

     61

7.1.1.  Resource Conversion Drilling

     65

7.1.2.  Drilling

     66

7.1.3.  Historic Drilling Methodology

     72

7.1.4.  Current Drilling Methodology

     73

7.1.5.  Sampling Methodology

     74

7.1.6.  Core Recovery

     75



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page vii . 



7.2.   Hydrogeology

     75

7.2.1.  Sampling Methods and Laboratory Determinations

     75

7.2.2.  Hydrogeology Investigations

     78

7.2.3.  Hydrogeologic Description

     79

7.2.4.  Mine Dewatering

     82

7.2.5.  Dewatering Discharge

     83

7.2.6.  Groundwater Flow Model

     84

8.  Sample Preparation, Analysis and Security

     94

8.1.   Pre-2012

     94

8.1.1.  Sample Preparation Procedures

     94

8.1.2.  Laboratory Analysis Procedures

     95

8.1.3.  Security

     96

8.2.   Premier 2012-2018

     96

8.3.   i-80 2023-Present Underground Resource Conversion Drilling

     97

8.4.   Quality Assurance and Quality Control

     97

8.4.1.  Standards and Blanks

     97

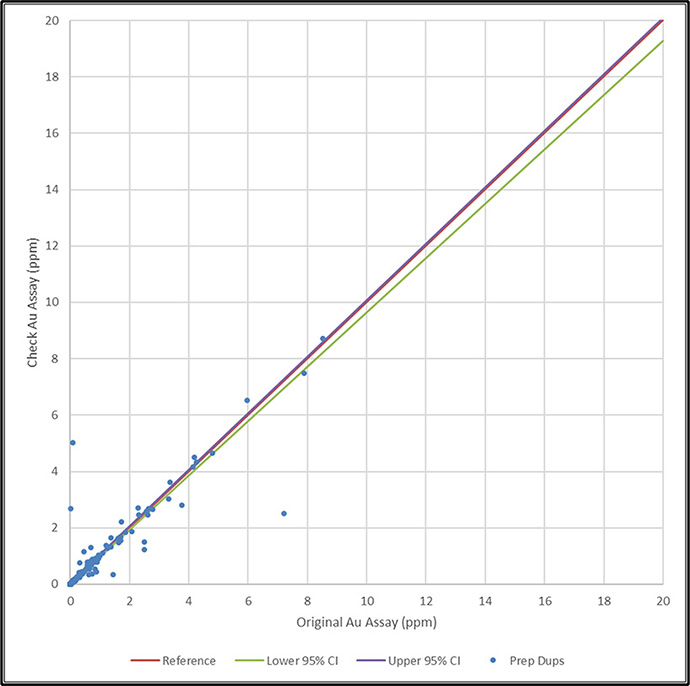

8.4.2.  Duplicate Assays

     101

9.  Data Verification

     104

10.  Mineral Processing and Metallurgical Testing

     106

10.1.  Historical Metallurgical Test Work

     106

10.1.1.  2008 KCA Program

     106

10.1.2.  2009 KCA Program

     108

10.1.3.  2017 SGS Programs

     108

10.1.4.  2021 KCA Program

     113

10.1.5.  2022 FLSmidth Program

     116

10.2   Mineral Processing and Metallurgical Discussion

     117

10.2.  QP Opinion

     117

10.3.  Conclusions and Recommendations:

     117

10.3.1.  Conclusions:

     118





 Practical Mining LLC   March 26, 2025 


 Page viii .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



10.3.2.  Recommendations

     118

11.  Mineral Resource Estimates

     120

11.1.  Introduction

     120

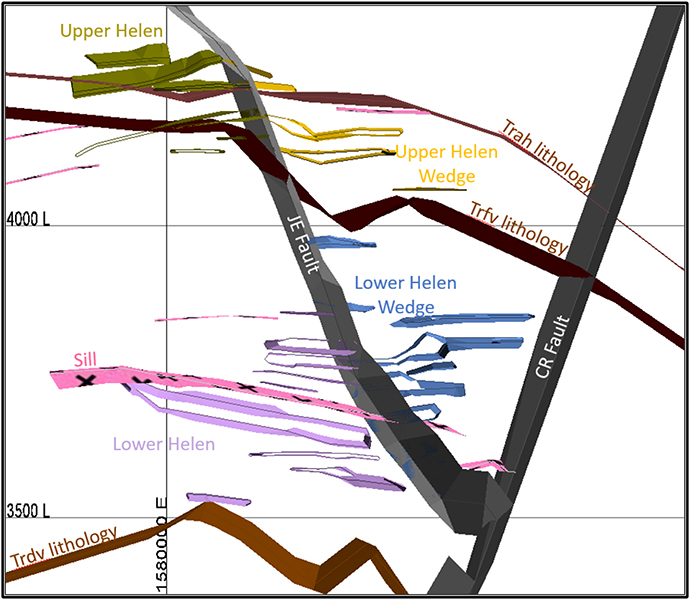

11.2.  Modeling of Lithology and Mineralization

     125

11.3.  Drill Data and Compositing

     129

11.3.1.  Drill Data Set

     129

11.3.2.  Compositing

     130

11.4.  Density

     131

11.5.  Statistics and Variography

     131

11.6.  Grade Capping

     133

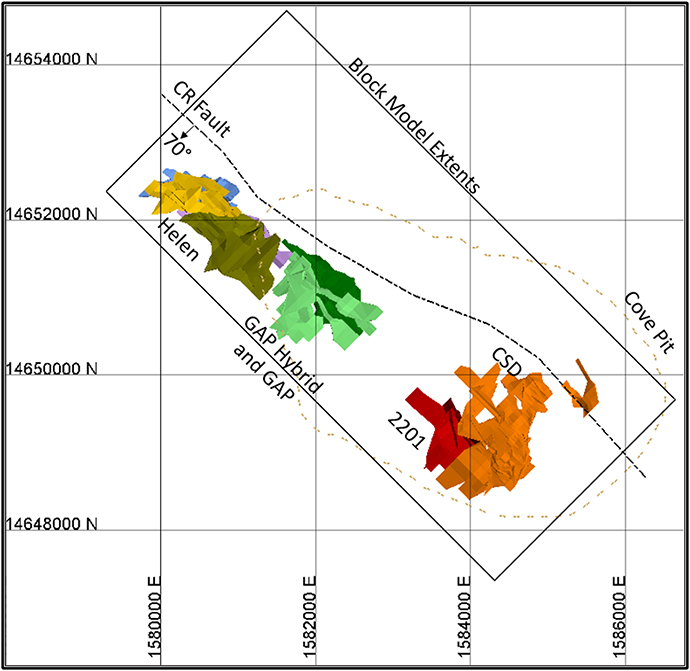

11.7.  Block Model

     134

11.8.  Grade Estimation and Resource Classification

     136

11.9.  Mined Depletion and Sterilization

     138

11.10. Model Validation

     139

11.10.1.  Estimation Comparison

     139

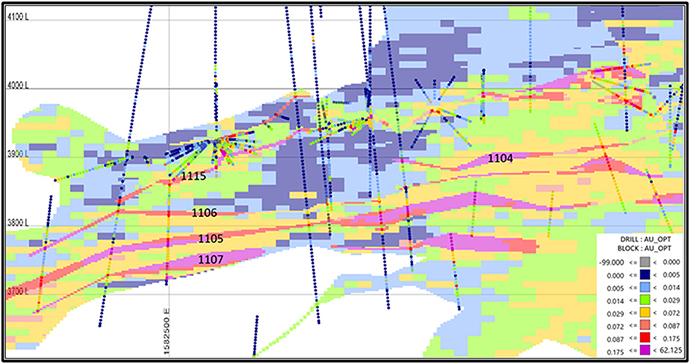

11.10.2.  Visual Comparison

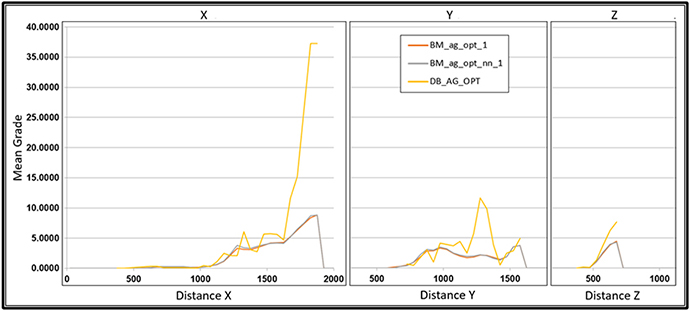

     143

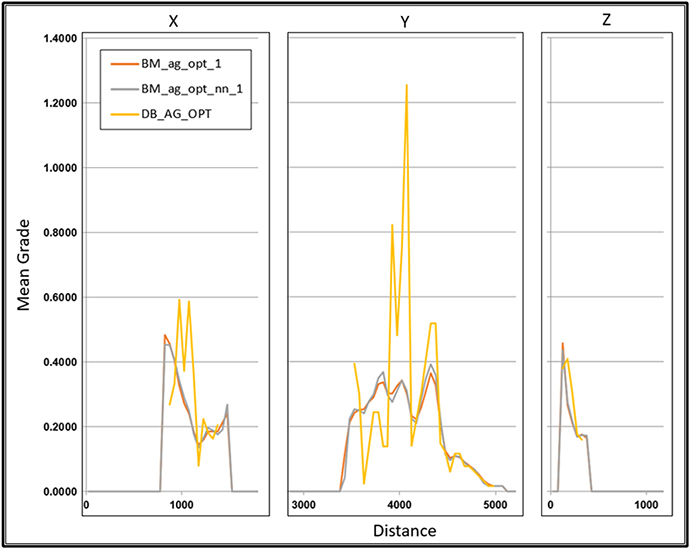

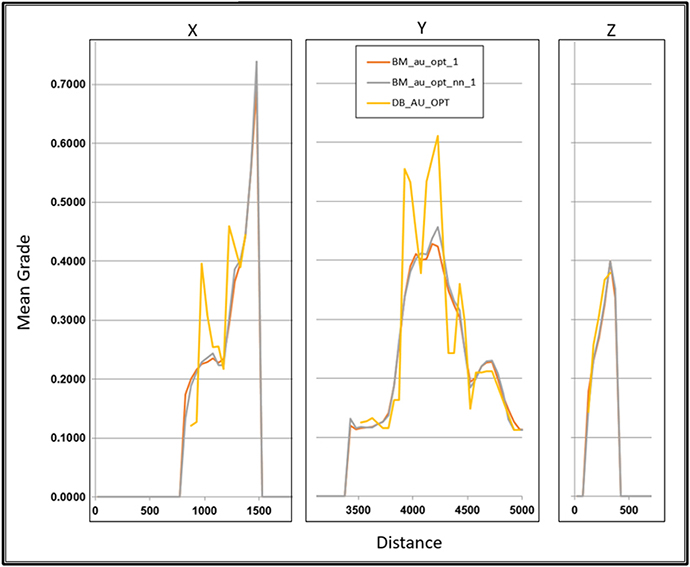

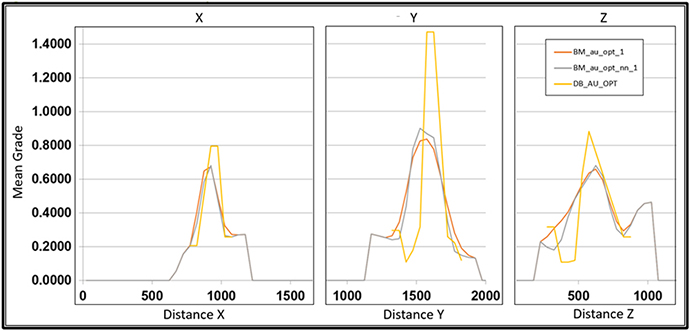

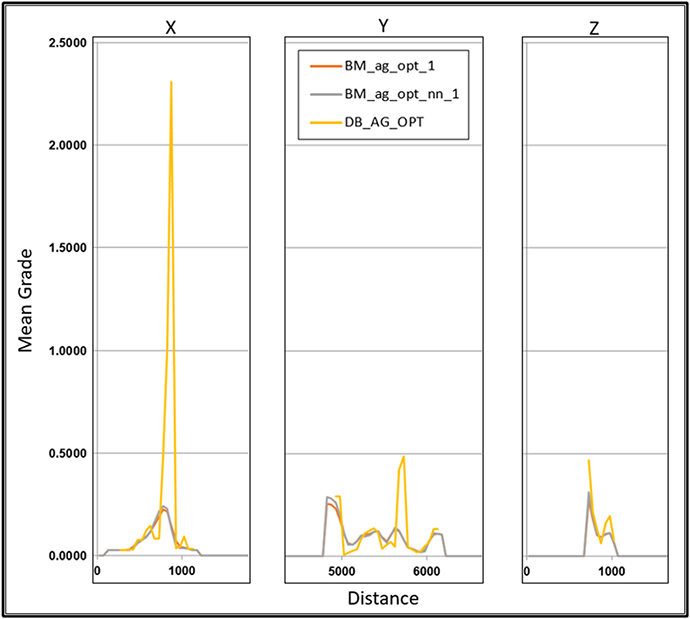

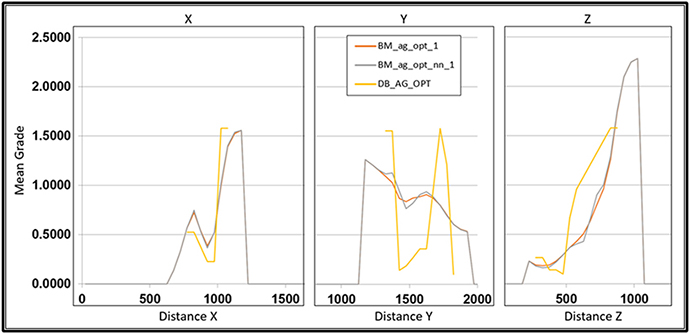

11.10.3.  Swath Plots

     146

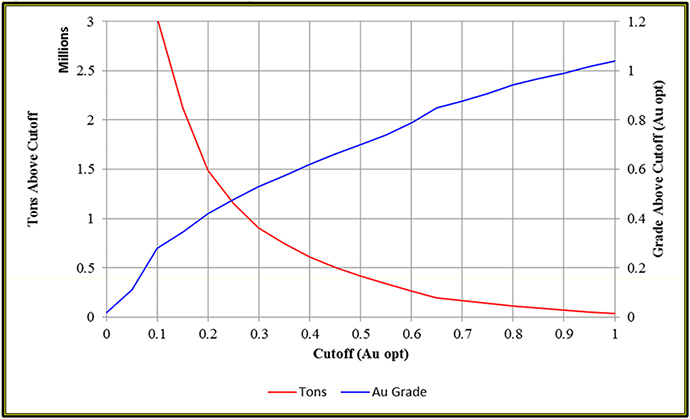

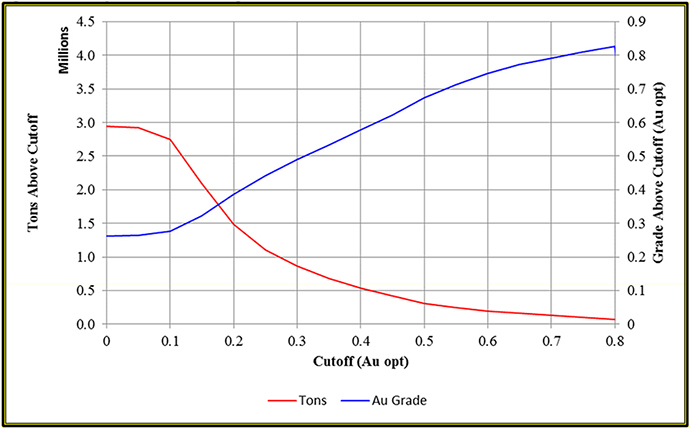

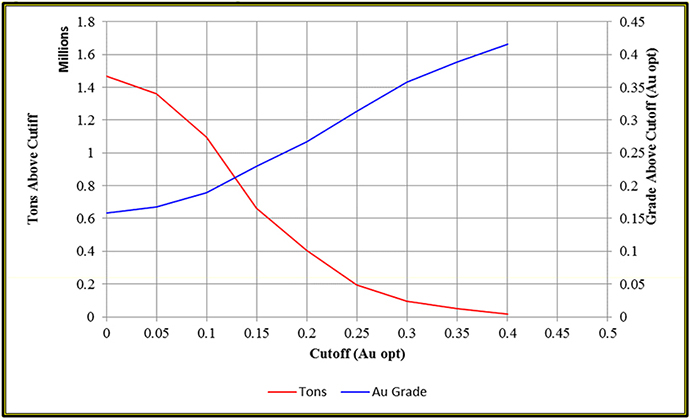

11.10.4.  Model Smoothing Checks – Grade Tonnage Curves

     151

11.11. Factors That May Affect Mineral Resources

     154

11.12. Reasonable Prospects for Economic Extraction

     154

11.12.1.  QP Opinion

     154

11.13. Mineral Resources

     155

12.  Mineral Reserve Estimates

     156

13.  Mining Methods

     157

13.1.  Mine Development

     157

13.1.1.  Access Development

     157

13.1.2.  Ground Support

     158

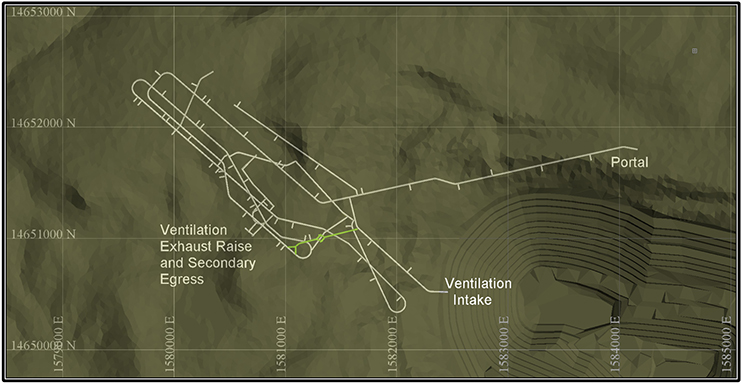

13.1.1.  Ventilation and Secondary Egress

     160

13.1.2.  Dewatering

     161



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page ix . 



13.2.  Mining Methods

     161

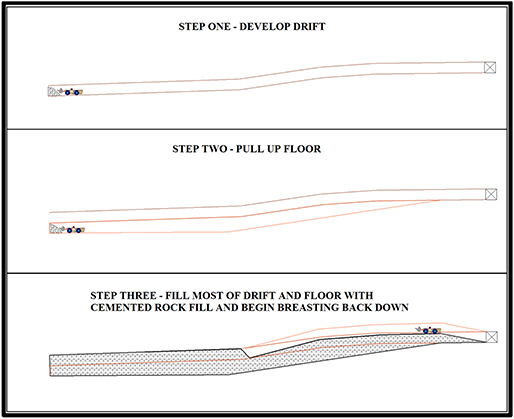

13.2.1.  Drift and Fill

     161

13.3.  Underground Labor

     162

13.4.  Mobile Equipment Fleet

     163

13.5.  Mine Plan

     164

14.  Recovery Methods

     169

14.1.  INTRODUCTION

     169

14.2.  Gold Quarry Roaster

     169

14.3.  Lone Tree Pressure Oxidation Facility

     171

14.3.1.  Lone Tree Mill Historic Processing

     171

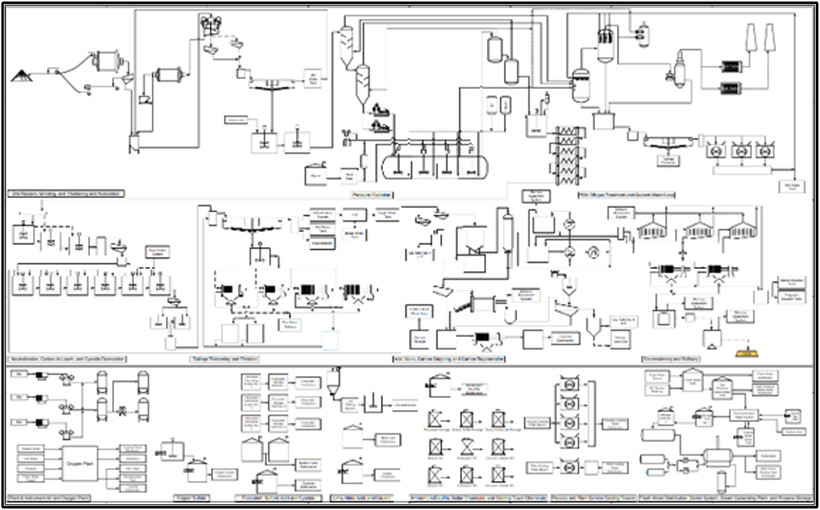

14.3.2.  Lone Tree Facility Block Flow Diagram

     171

14.3.3.  Key Design Criteria

     172

14.3.4.  Lone Tree Facility Description

     174

14.3.5.  Utilities Consumption

     181

15.  Infrastructure

     183

15.1.  Dewatering

     183

15.1.1.  History

     183

15.1.2.  Infrastructure

     183

15.2.  Electrical Power

     184

15.3.  Mine Facilities

     186

15.4.  Backfill

     187

16.  Market Studies and Contracts

     189

16.1.  Precious Metal Markets

     189

16.2.  Contracts

     190

16.2.1.  Private Placement Offering

     190

16.2.2.  Orion and Sprott Financing Package

     192

16.2.3.  Equinox Investment

     192

16.2.4.  Private Placement

     192

16.3.  Previous Financing Agreements

     192





 Practical Mining LLC   March 26, 2025 


 Page x .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



16.3.1.  Offtake Agreement

     192

16.3.2.  South Arturo Purchase and Sale Agreement (Silver)

     192

16.4.  Roaster Toll Milling Agreement

     193

16.5.  Other Contracts

     193

17.  Environmental Studies, Permitting and Plans, Negotiations or Agreements with Local Individuals or Groups

     194

17.1.  Social or Community Impacts

     195

17.2.  Permitting

     196

17.3.  Closure and Reclamation Requirements

     197

17.4.  Closure and Reclamation

     199

17.5.  QP Statement

     200

18.  Capital and Operating Costs

     201

18.1.  Capital Costs

     201

18.2.  Closure and Reclamation

     203

18.3.  Operating Costs

     203

18.4.  Cutoff Grade

     204

19.  Economic Analysis

     206

20.  Adjacent Properties

     215

21.  Other Relevant Data and Information

     216

22.  Interpretation and Conclusions

     217

22.1.  Risks and Opportunities

     219

22.2.  Work Program

     219

23.  References

     223

24.  Reliance on Information Provided by the Registrant

     226



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page xi . 



List of Tables



Table 1-1 Cove Mineral Resources

     20

Table 1-2 Financial Statistics

     24

Table 2-1 Personal Inspections by Qualified Professionals

     30

Table 2-2 Units of Measure

     31

Table 2-3 QP Responsibility for Sections of This Report

     33

Table 3-1 Property Holding Costs

     40

Table 5-1 Historic Resource and Reserve Estimates

     46

Table 5-2 Historic Cove and McCoy Mine Production 1986 through 2006

     46

Table 7-1 List of Drilling by Operator

     67

Table 7-2 Type of Drilling by Zone

     71

Table 7-3 Summary of Hydrogeological Studies

     78

Table 7-4 Calculated Model Calibration Statistics

     89

Table 8-1 Pre-2012 ICP Analysis

     94

Table 8-2 ICP Analysis 2012 - 2018

     95

Table 8-3 Gold Blank and Standard Summary Statistics

     98

Table 9-1 Data Review Summary

     105

Table 10-1 Metallurgical Testing Programs

     106

Table 10-3 Roasting Test Conditions

     109

Table 10-4 Chlorination Program Test Results

     115

Table 10-52022 FLSmidth Program Test Results

     116

Table 11-1 Geology Codes

     126

Table 11-2 Identification Codes for 3 g/t Grade Lenses

     126

Table 11-3 Identification Codes for 0.2 g.t Grade Lenses

     127

Table 11-4 Drill Hole Summary

     129

Table 11-5 Composite Summary

     130

Table 11-6 Density

     131

Table 11-7 Gold Composite Statistics

     132

Table 11-8 Silver Composite Statistics

     133

Table 11-9 Composite Grade Capping

     133

Table 11-10 Block Model Variables

     134

Table 11-11 Estimation Parameters

     137

Table 11-12 Classification Conditions

     137

Table 11-13 Estimate Comparison for Gold versus a Nearest Neighbor at 0 Cutoff

     139

Table 11-14 Estimate Comparison for Silver versus a Nearest Neighbor at 0 Cutoff

     141

Table 11-15 Cove Mineral Resources

     155

Table 13-1 Underground Workforce 2028 through 2029

     162





 Practical Mining LLC   March 26, 2025 


 Page xii .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



Table 13-2 Peak Underground Workforce beginning 2030

     163
Table 13-3 Underground Mobile Equipment and Support Equipment for Exploration Development Phase      163

Table 13-4 Underground Mobile Equipment and Support Equipment for Peak Production Mining

     163

Table 13-5 Heading Productivity

     164

Table 13-6 Annual Production and Development Schedule (Including Inferred Mineral Resource)

     164

Table 13-7 Annual Production and Development Schedule (Excluding Inferred Mineral Resource)

     166

Table 14-1 Summary of Key Process Statistics

     172

Table 14-2 Lone Tree Facility Water Consumption by Type

     182

Table 14-3 Lone Tree Facility Energy Usage by Area

     182

Table 15-1 Backfill Scoping Tests 28-Day Unconfined Compressive Strength (psi)

     188

Table 17-1 Cove Project Existing Permits

     196

Table 17-2 McCoy Cove Reclamation Bonds

     199

Table 17-3 Annual Closure and Reclamation Costs ($M)

     199

Table 18-1 Project Capital Costs ($M)

     201

Table 18-2 Mine Development Unit Costs

     201

Table 18-3 Mine Development Capital ($M)

     202

Table 18-4 Dewatering Capital ($M)

     202

Table 18-5 Facilities and Site General ($M)

     202

Table 18-6 Closure and Reclamation Costs ($M)

     203

Table 18-7 Unit Operating Costs

     203

Table 18-8 One Way Trucking Distance to Nevada Metallurgical Plants

     203

Table 18-9 Operating and Capital Costs

     204

Table 18-10 Cutoff Grades for Alkaline POX and Roaster

     204

Table 19-1 Income Statement Includes Inferred) (Millions $US except Unit Cost per Ounce)

     207

Table 19-2 Cash Flow Statement (Includes Inferred)

     207

Table 19-3 Income Statement (Excludes Inferred) (Millions $US except Unit Cost per Ounce)

     208

Table 19-4 Table 19-5 Cash Flow Statement (Excludes Inferred)

     208

Table 19-6 Financial Statistics1

     209

Table 22-1 Project Risks

     219

Table 22-2 Opportunities

     219

Table 22-3 Work Program Estimated Costs (US$M)

     220

Table 24-1 Reliance on Information Provided by the Registrant

     226



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page xiii . 







 Practical Mining LLC   March 26, 2025 


 Page xiv .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 



List of Figures



Figure 1-1 Section View of Cove Mineralization looking NE

     20

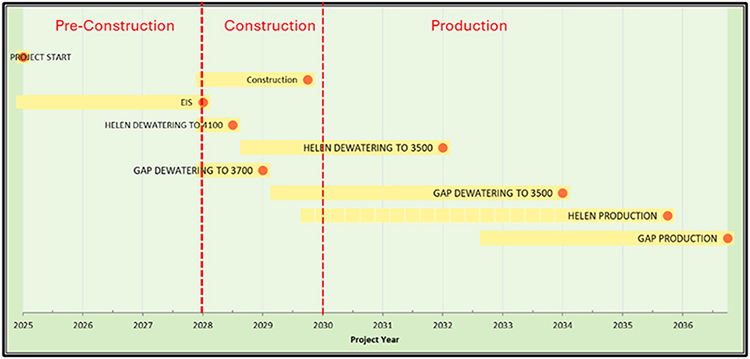

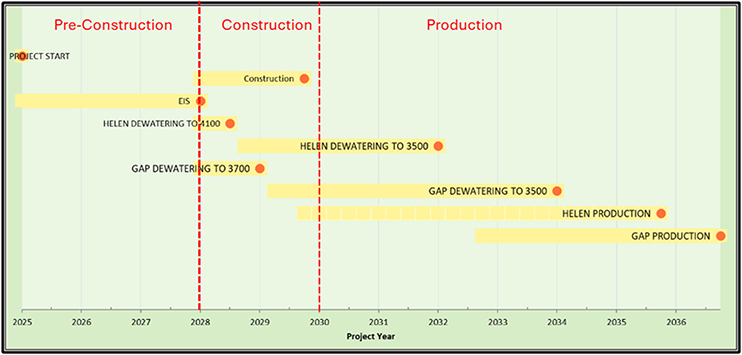

Figure 1-2 Project Timeline

     23

Figure 3-1 Cove Location Map

     36

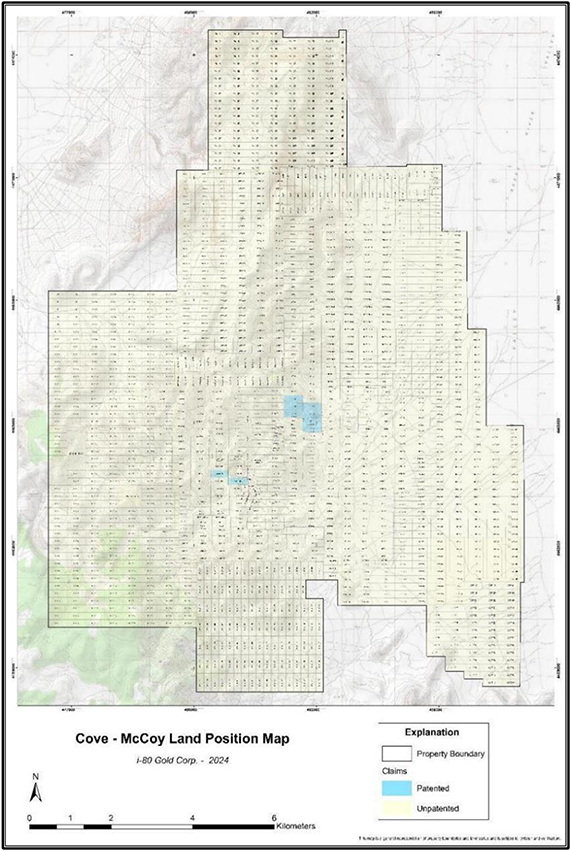

Figure 3-2 Mining Claim Map

     38

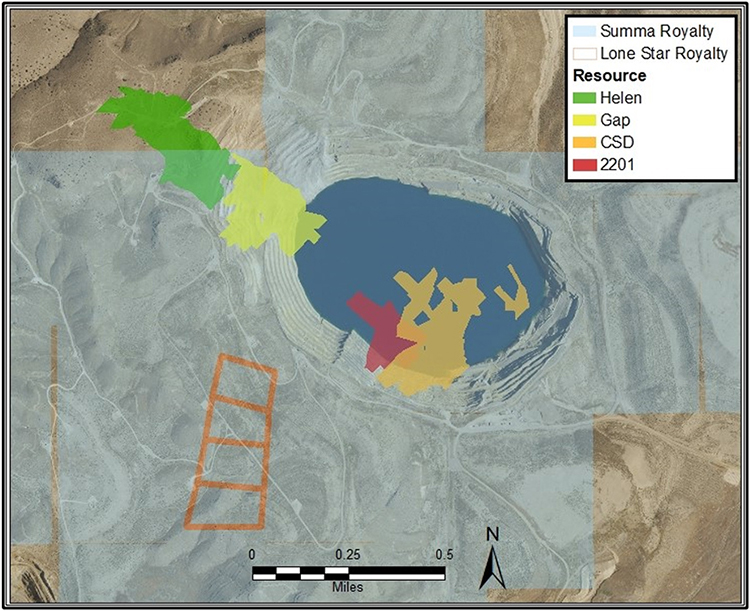

Figure 3-3 Summa and Chiara Royalties and Resource Location

     39

Figure 4-1 McCoy-Cove Project Area Looking Southeast

     43

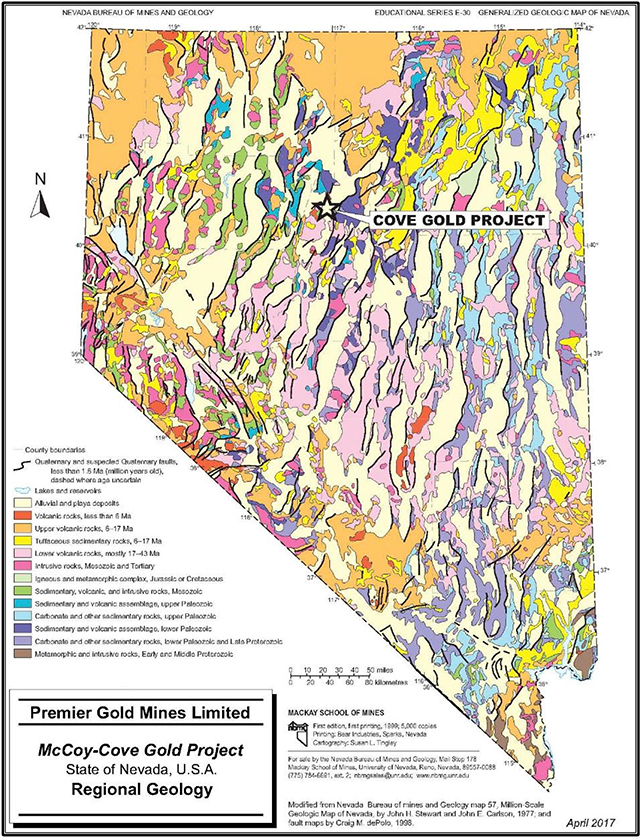

Figure 6-1 Regional Geology

     51

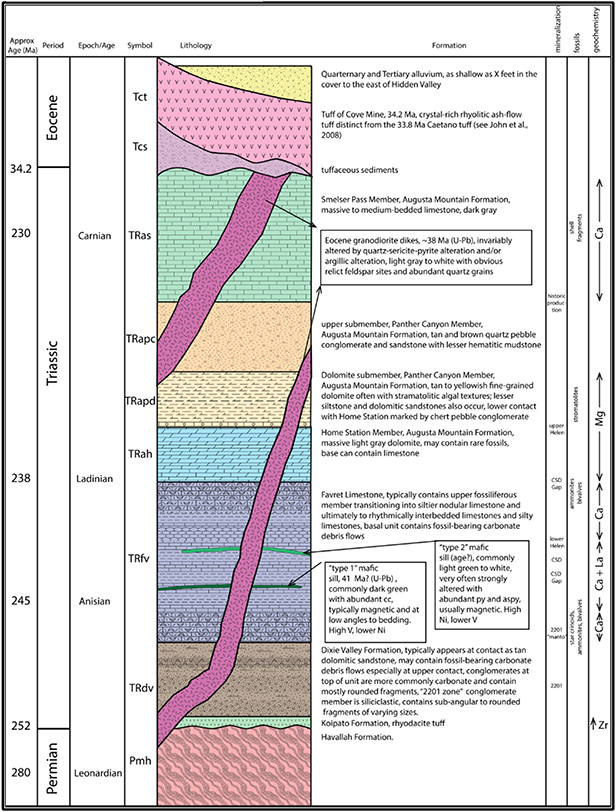

Figure 6-2 Triassic Stratigraphy and Mineralization

     52

Figure 7-1 Exploration Targets

     62

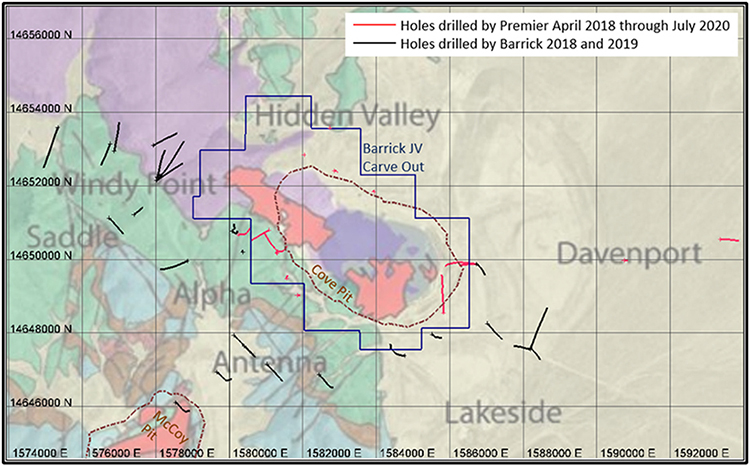

Figure 7-2 Barrick and Premier Exploration Drilling

     64

Figure 7-3 Underground Exploration Potential

     65

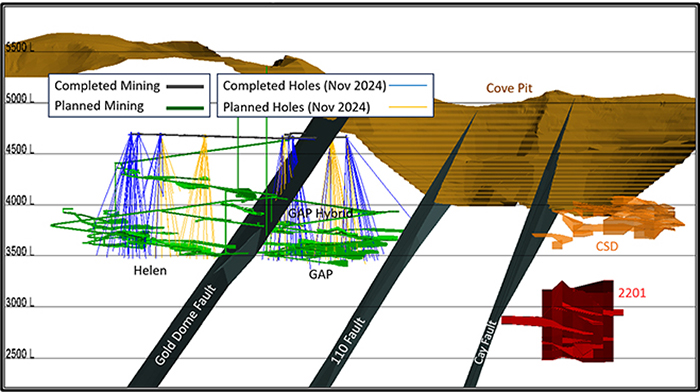

Figure 7-4 Resource Conversion Drill Program

     66

Figure 7-5 Plan View of Drill Holes Used for the Current Analysis

     67

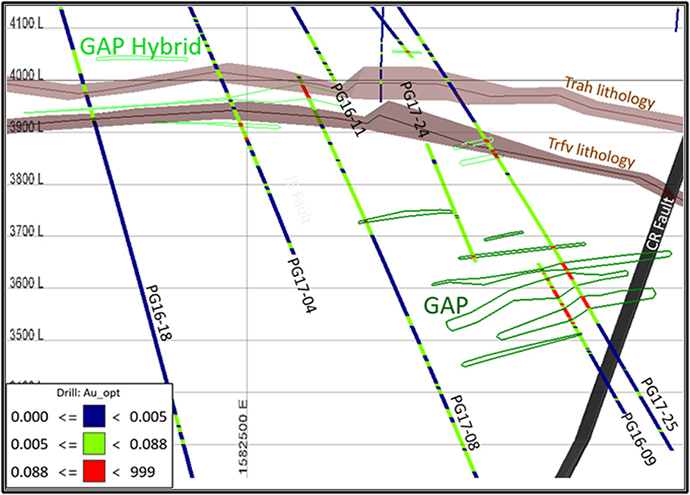

Figure 7-6 Sample Section of CSD-Gap and Gap Hybrid Drilling

     68

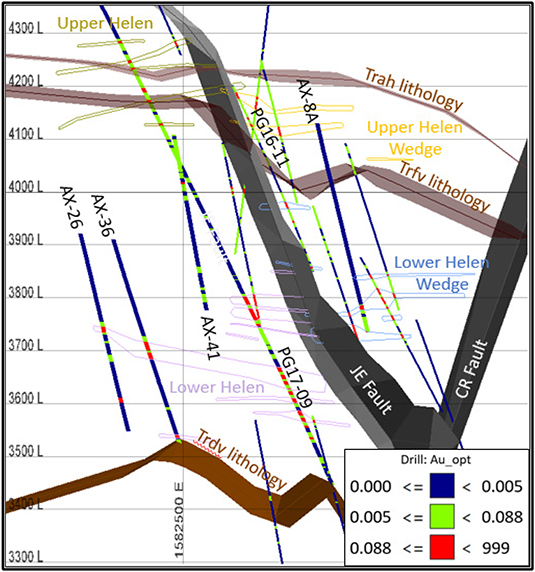

Figure 7-7 Sample Section of Helen Zone Drilling

     69

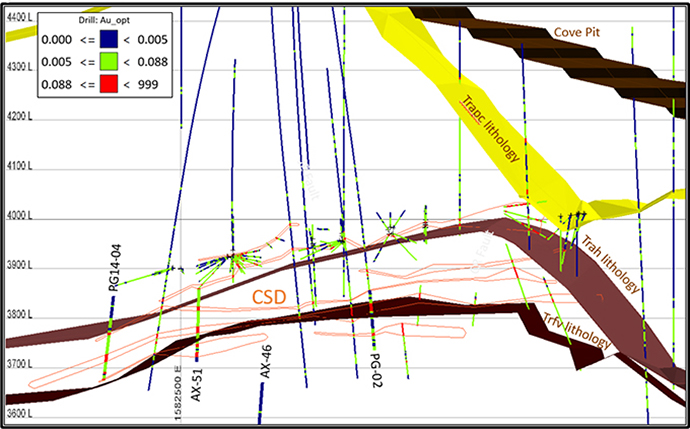

Figure 7-8 Sample Section of CSD Zone Drilling

     70

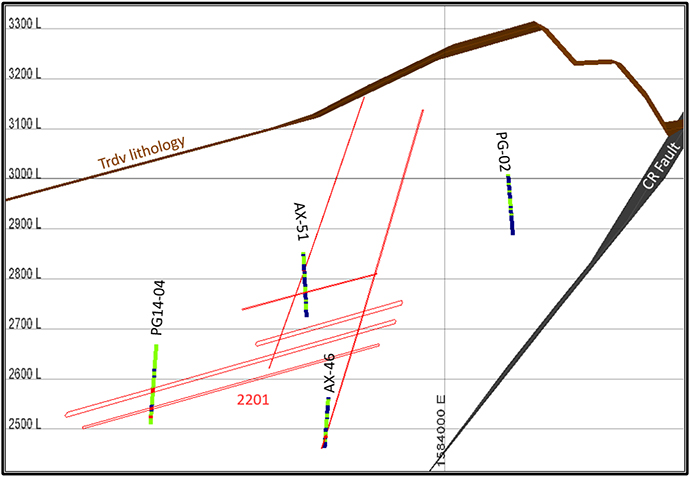

Figure 7-9 Sample Section of 2201 Zone Drilling

     71

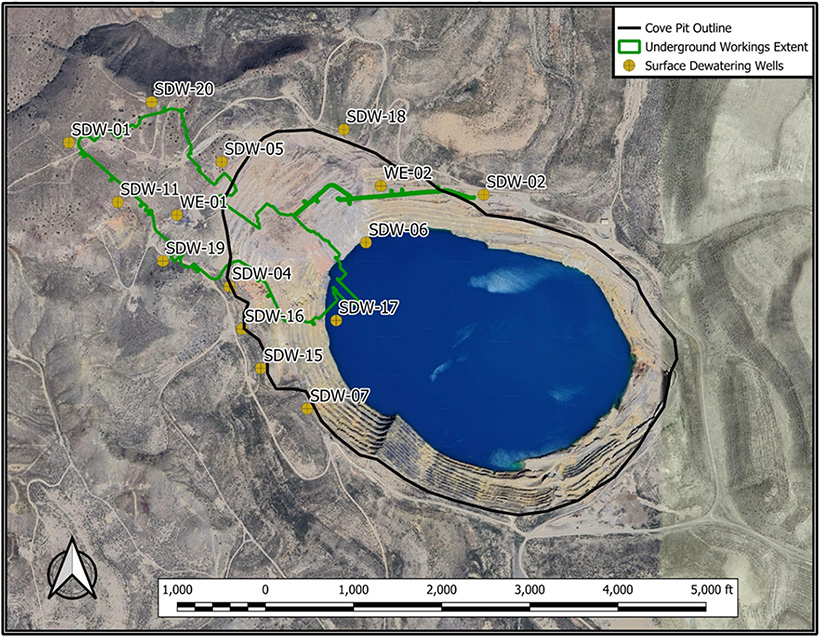

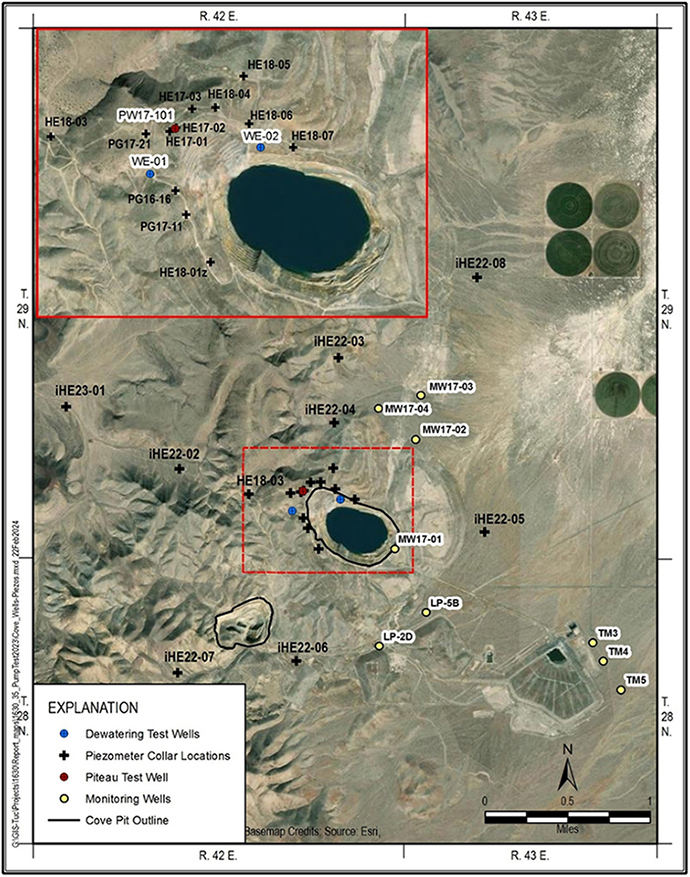

Figure 7-10. Vibrating Wire Piezometer and Groundwater Monitor Well Locations

     77

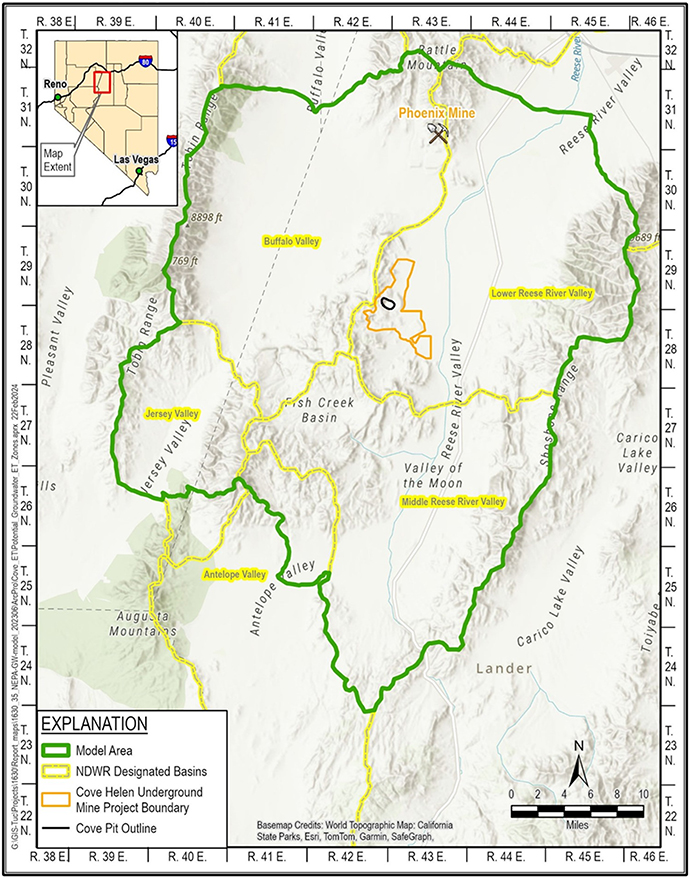

Figure 7-11 Hydrogeologic Study Area/Model Area

     81

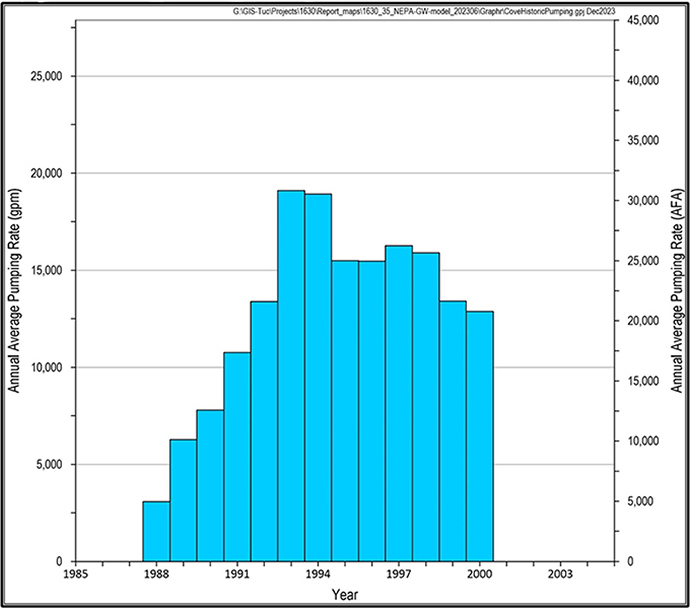

Figure 7-12 Historical Cove Dewatering Rates

     83

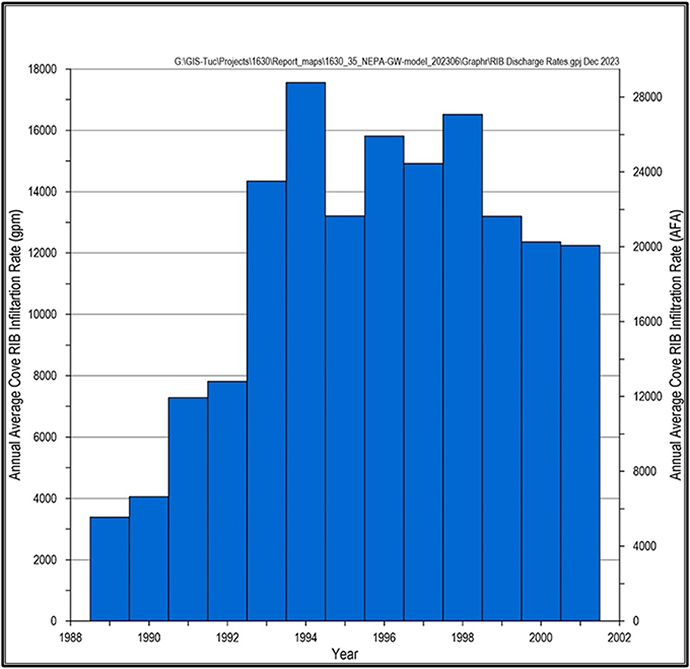

Figure 7-13 Historical Discharges to RIBs

     84

Figure 7-14 Model Grid Extent

     86

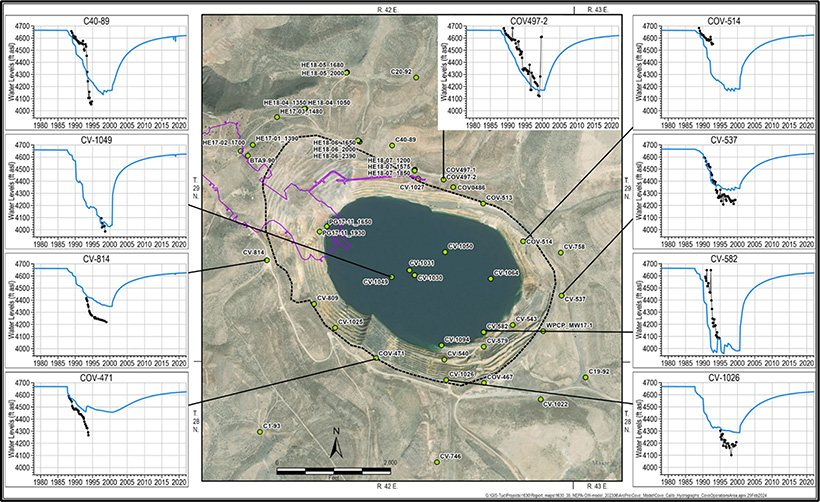

Figure 7-15 Representative Simulated and Observed Hydrographs around the Cove Pit Lake

     88

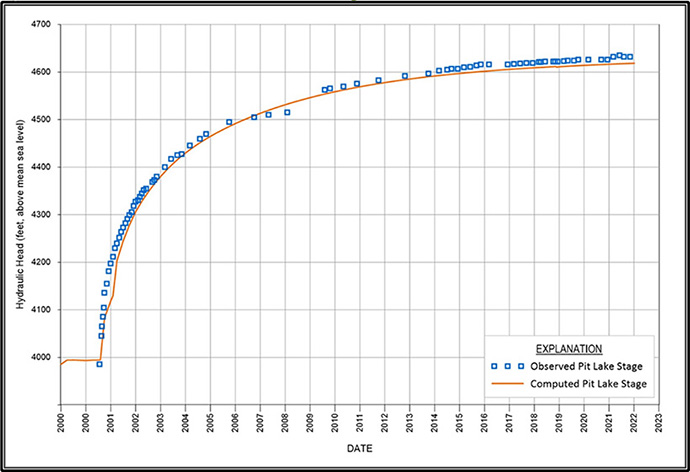

Figure 7-16 Simulated and Observed Cove Pit Lake Stage

     89

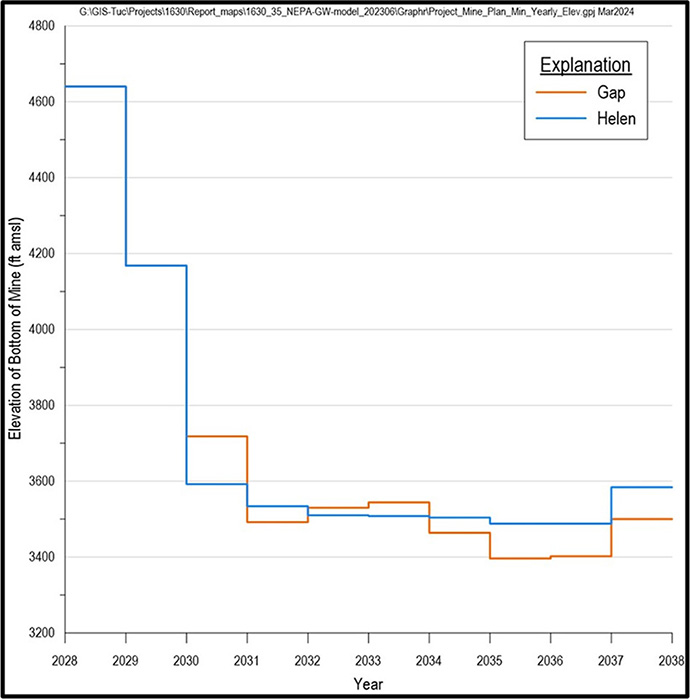

Figure 7-17 Projected Mine Elevation for Dewatering During Life of Mine

     90

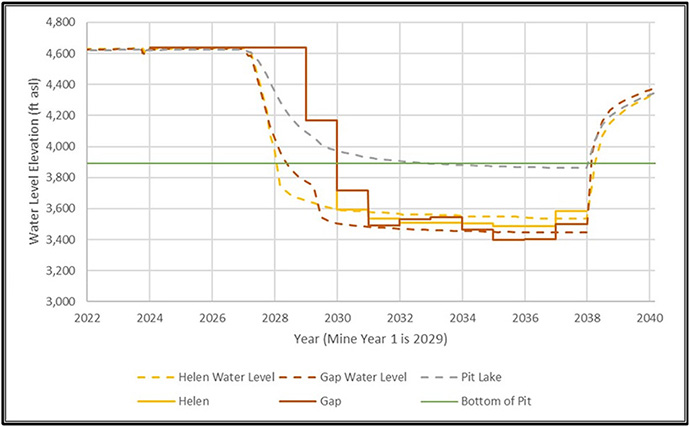

Figure 7-18 Simulated Water Levels During the Life of Mine

     91

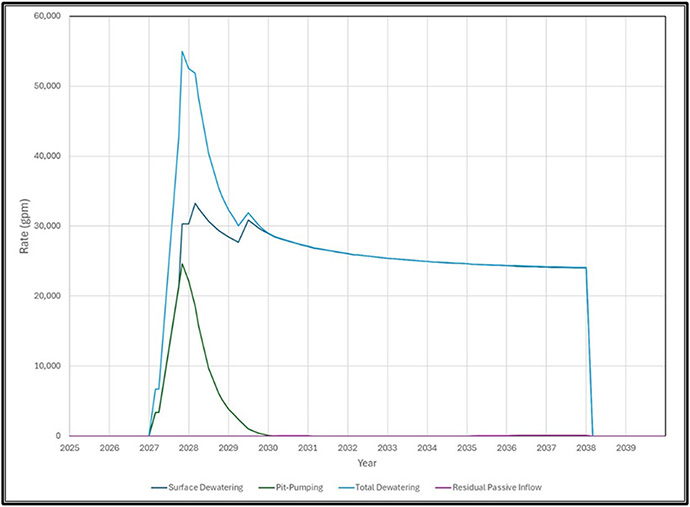

Figure 7-19 Simulated Dewatering Rates

     92

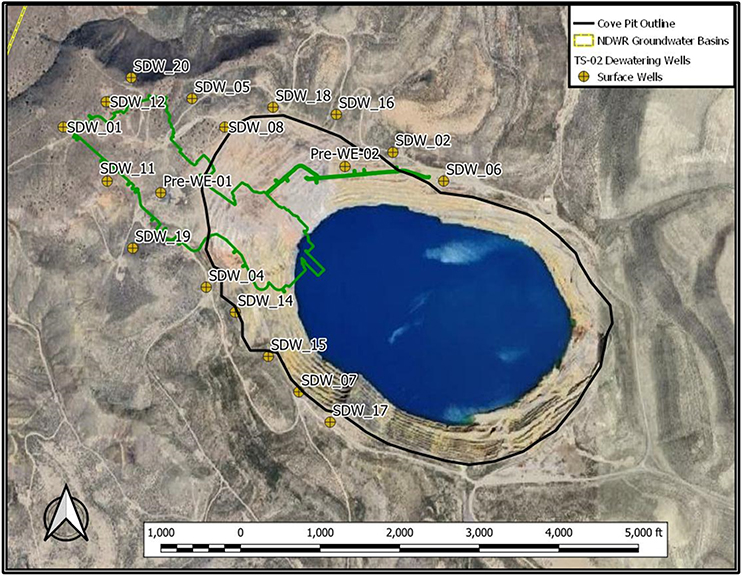

Figure 7-20 Dewatering Well Field Locations Used For Predictive Modeling

     93

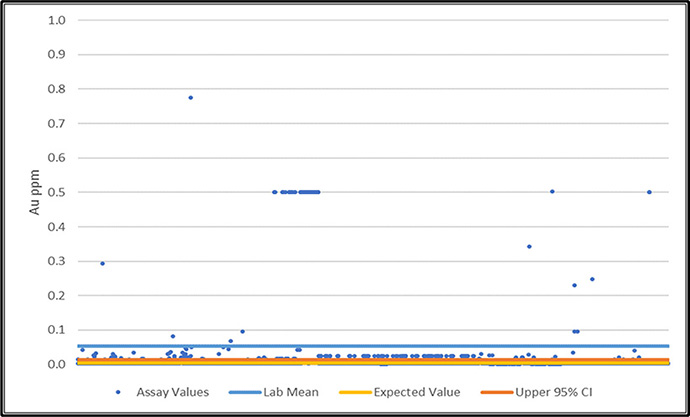

Figure 8-1 Blank Assay Results

     99

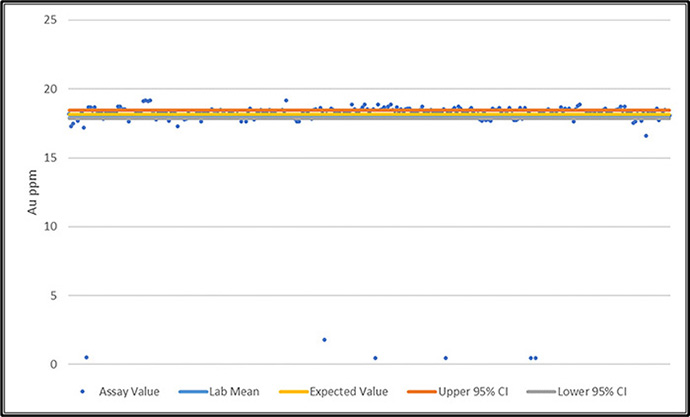

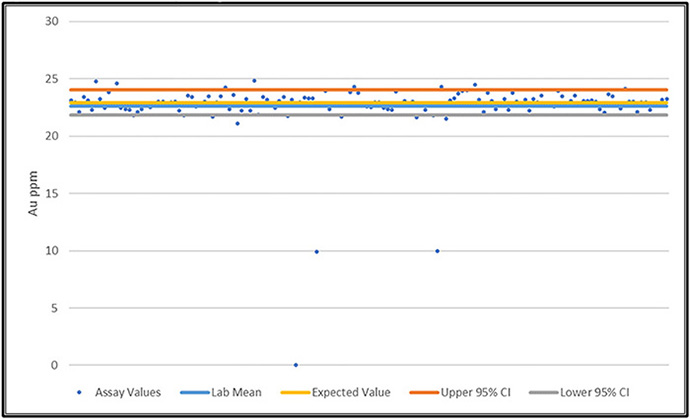

Figure 8-2 SP 37 Standard Reference Material Results

     99

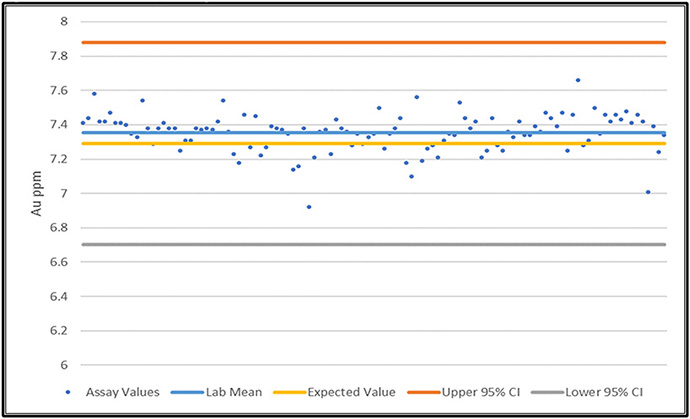

Figure 8-3 CDN-GS-22 Certified Reference Material Results

     100

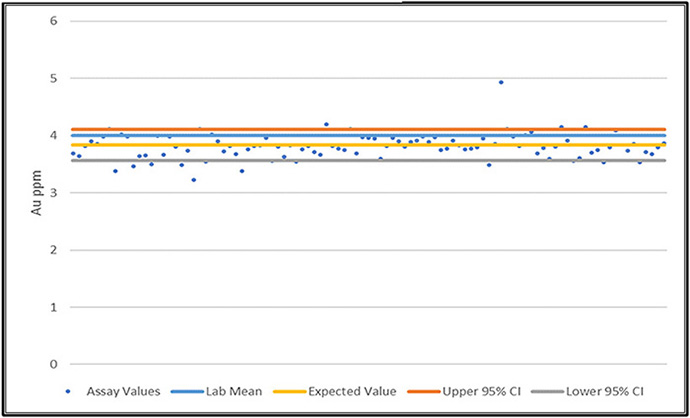

Figure 8-4 CDN-GS-5H Certified Reference Material Results

     100

Figure 8-5 GS912-1 Certified Reference Material Results

     101

Figure 8-6 Prep Duplicates - ALS Reno

     102

Figure 8-7 Lab Check Duplicates

     103

Figure 11-1 Plan View of Cove Mineralized Zones

     122



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page xv . 



Figure 11-2 Section View of Cove Mineralized Zones looking NE

     123

Figure 11-3 Section View of the Helen Zone looking NW

     124

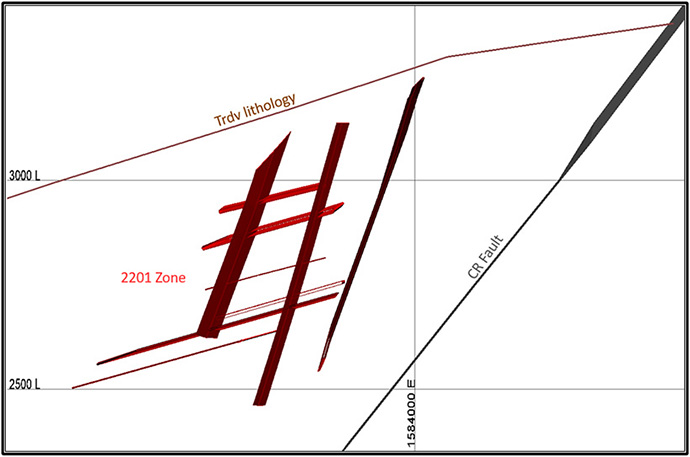

Figure 11-4 Section View of the 2201 Zone looking NW

     125

Figure 11-5 Low Grade Envelope

     127

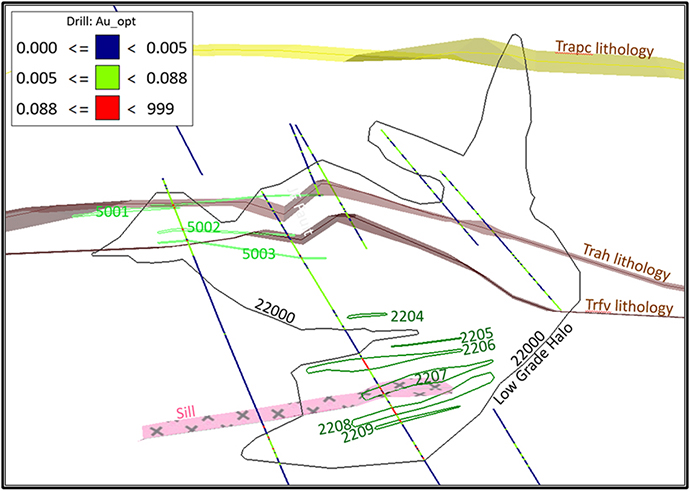

Figure 11-6 Section Looking AZ 315 Showing Mineralized Lenses in the GAP Zone

     128

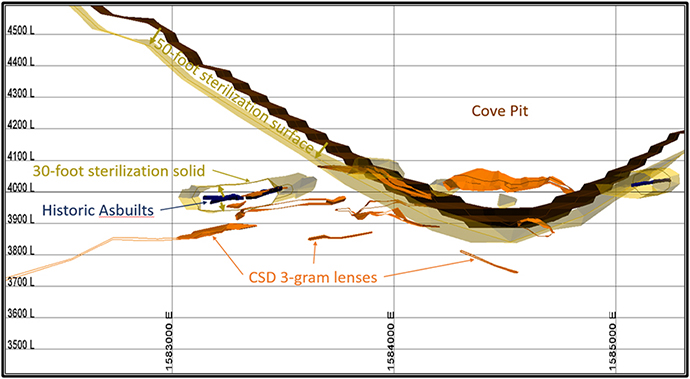

Figure 11-7 Sterilization Surfaces

     139

Figure 11-8 Comparison of Composite and Estimated Block Gold Grades, Helen Zone

     143

Figure 11-9 Comparison of Composite and Estimated Block Gold Grades, Gap Zone

     144

Figure 11-10 Comparison of Composite and Estimated Block Gold Grades, CSD Zone

     145

Figure 11-11 Comparison of Composite and Estimated Block Gold Grades, 2201 Zone

     145

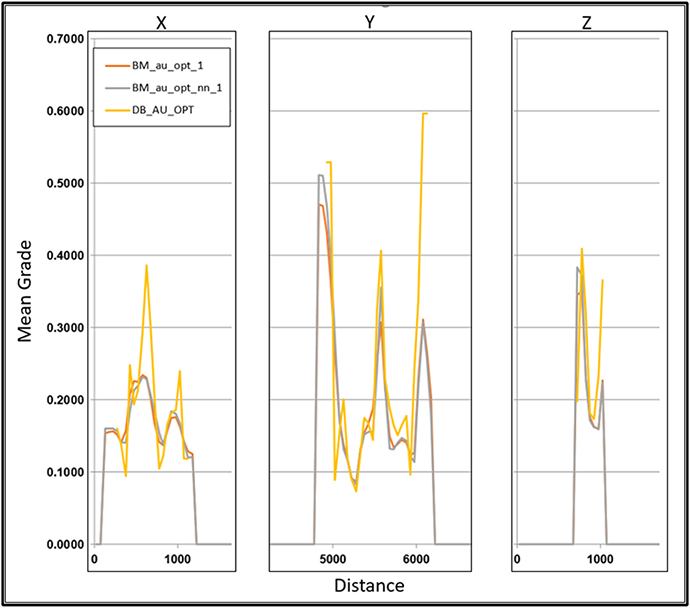

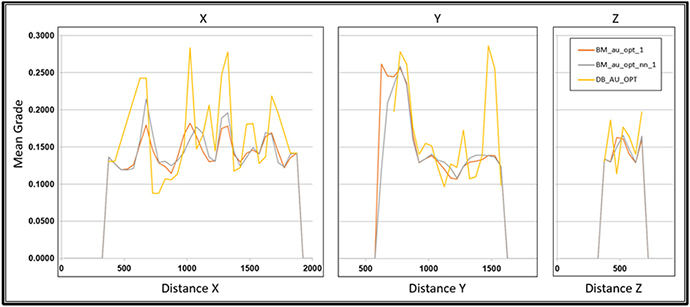

Figure 11-12 Gold Swath Plots of Helen Zone 3103

     146

Figure 11-13 Silver Swath Plots of Helen Zone 3103

     147

Figure 11-14 Gold Swath Plots of Gap Zone 2208

     148

Figure 11-15 Silver Swath Plots of Gap Zone 2208

     149

Figure 11-16 Gold Swath Plots of CSD Zone 1106

     149

Figure 11-17 Silver Swath Plots of CSD Zone 1106

     150

Figure 11-18 Gold Swath Plots of 2201 Zone 1302

     150

Figure 11-19 Silver Swath Plots of 2201 Zone 1302

     151

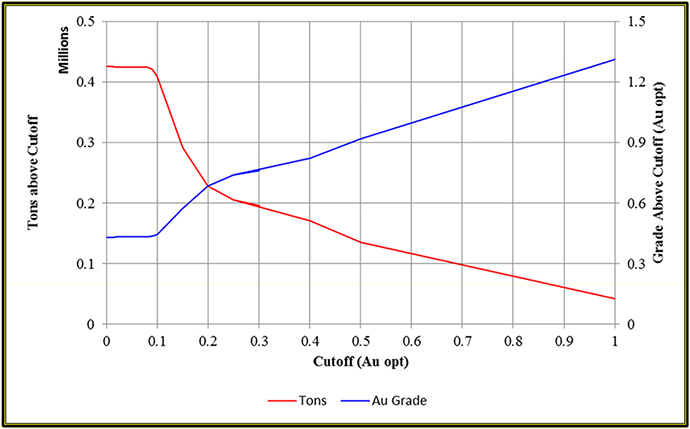

Figure 11-20 Helen Zone Grade Tonnage Plots

     152

Figure 11-21 Gap Zone Grade Tonnage Plots

     152

Figure 11-22 CSD Zone Grade Tonnage Plots

     153

Figure 11-23 2201 Zone Grade Tonnage Plots

     153

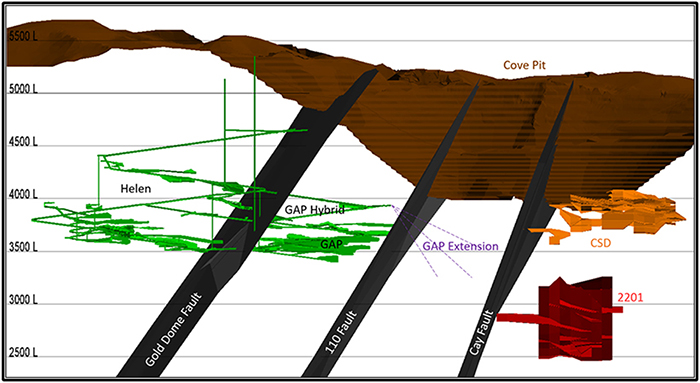

Figure 13-1 Exploration Development

     157

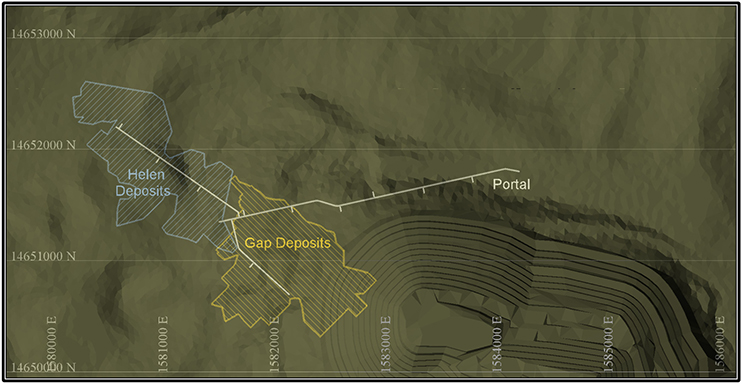

Figure 13-2 Plan view showing portal, main haulages, and two raises to surface

     158

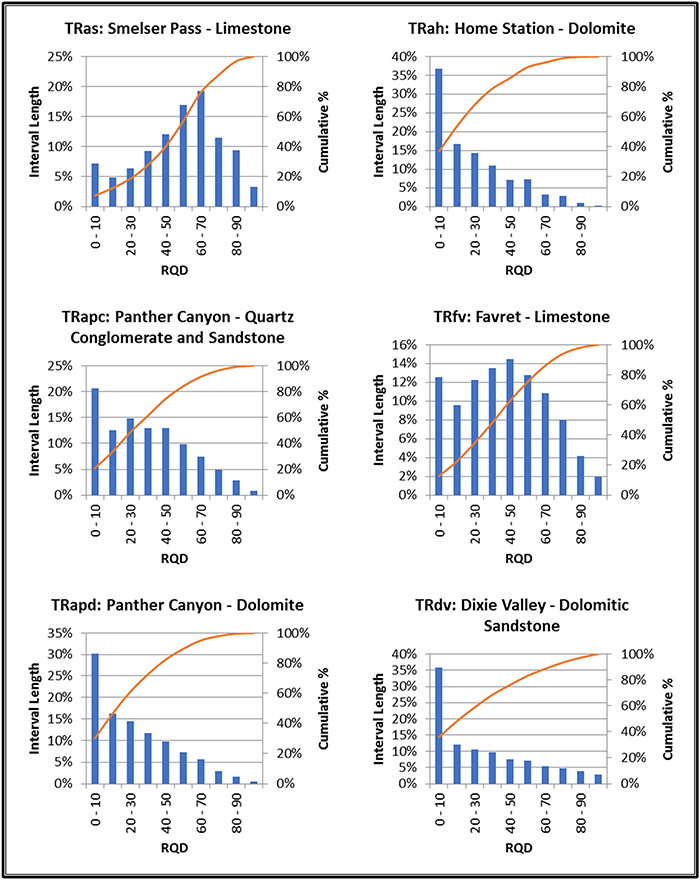

Figure 13-3 Formation RQD

     159

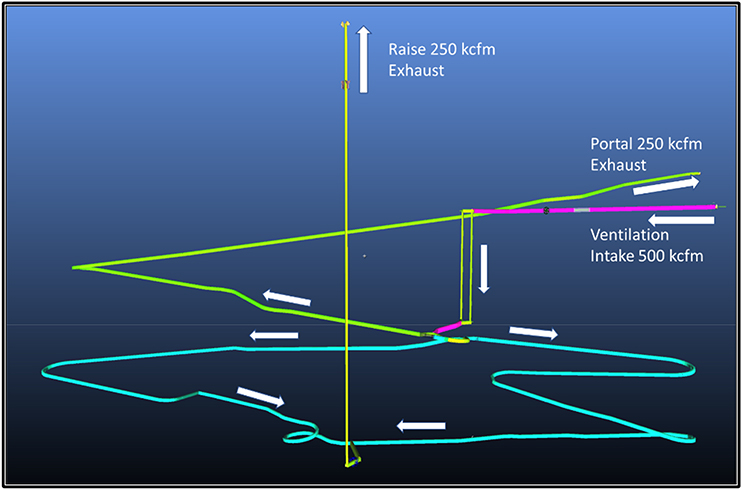

Figure 13-4 Ventilation Schematic

     160

Figure 13-5 Depiction of Drift and Fill method

     162

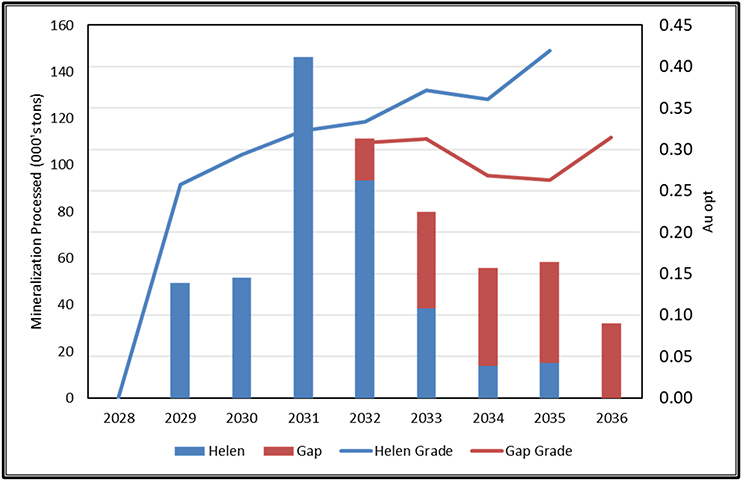

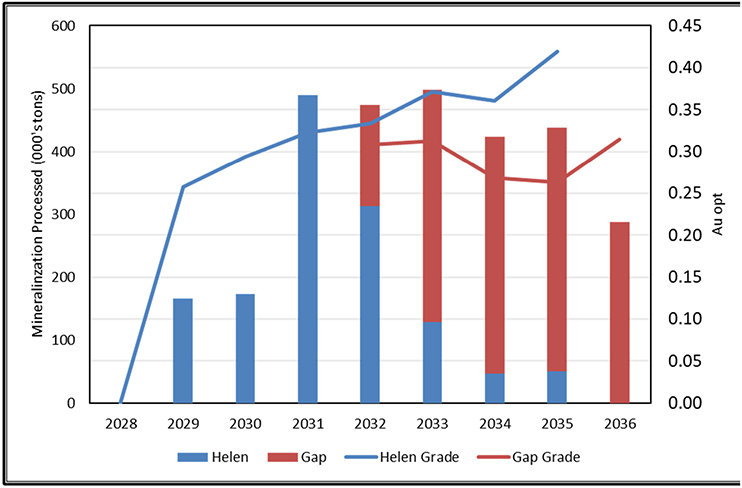

Figure 13-6 Production Profile (Including Inferred Mineral Resources)

     166

Figure 13-7 Production Profile without Inferred Mineral Resources

     168

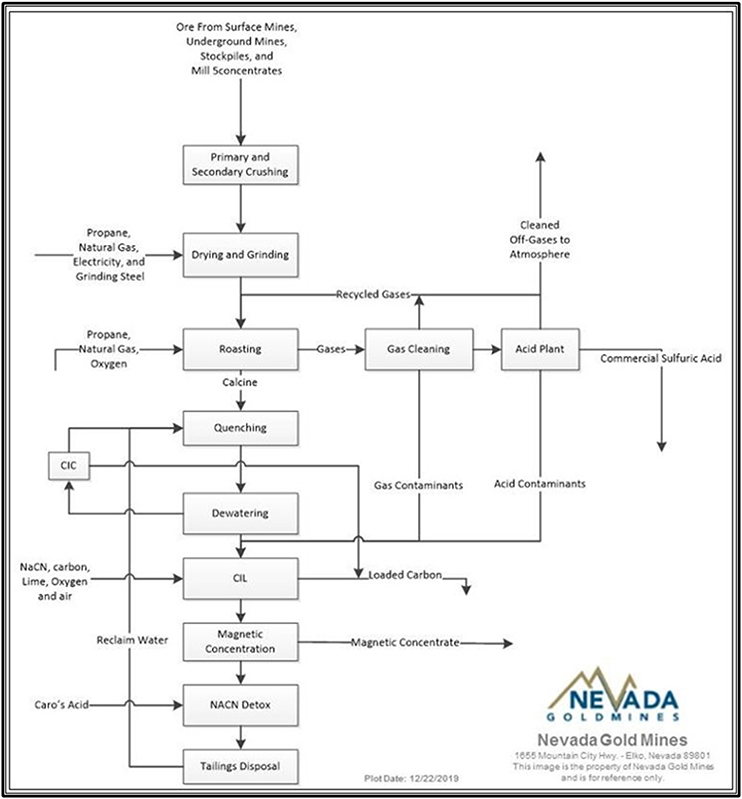

Figure 14-1 Nevada Gold Mines Gold Quarry Roaster Simplified Flowsheet

     170

Figure 14-2 Lone Tree Facility Block Flow Diagram

     173

Figure 15-1 Proposed Dewatering Well Location

     184

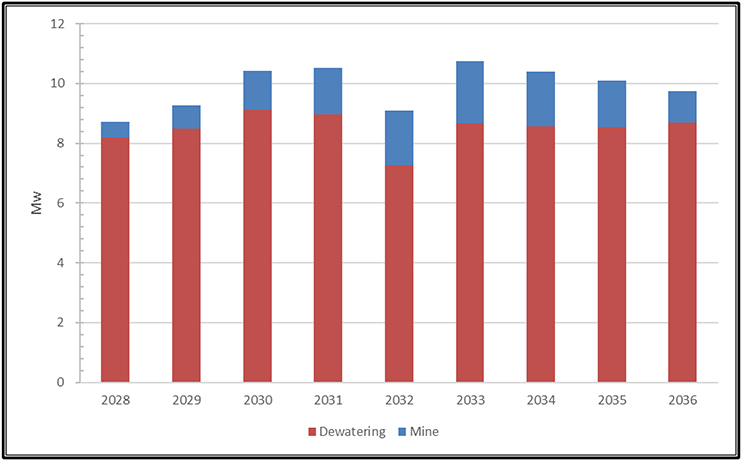

Figure 15-2 Electrical Demand

     185

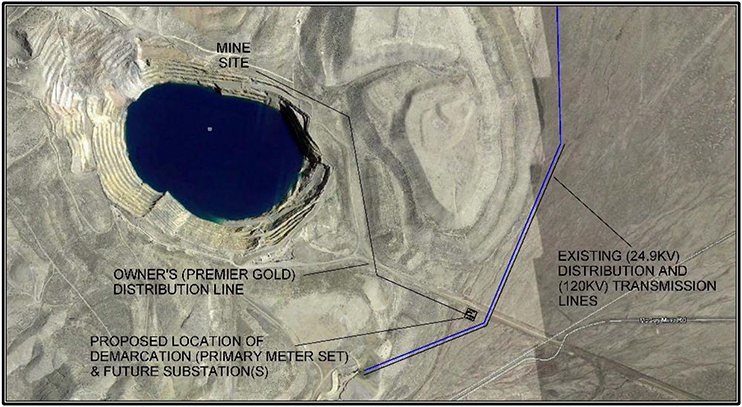

Figure 15-3 Electrical Site Plan

     186

Figure 15-4 Mine Facilities Layout

     187

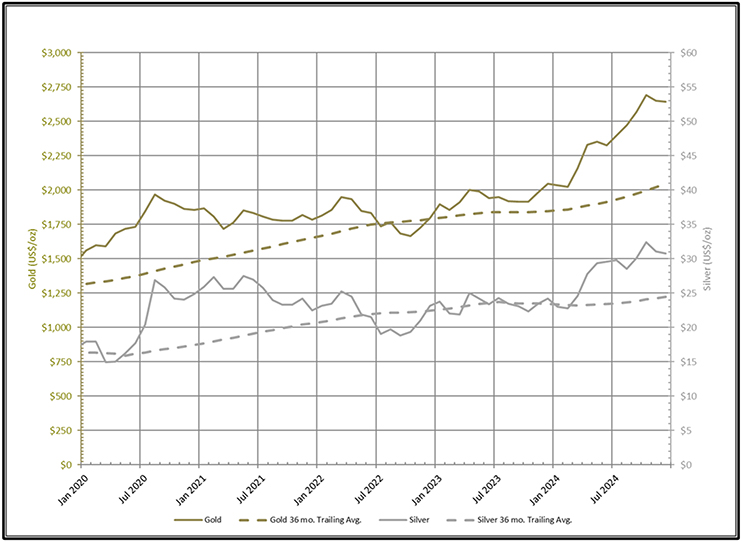

Figure 16-1 Historical Monthly Average Gold and Silver Prices and 36 Month Trailing Average

     189

Figure 19-1 Project Timeline

     206





 Practical Mining LLC   March 26, 2025 


 Page xvi .

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp. 

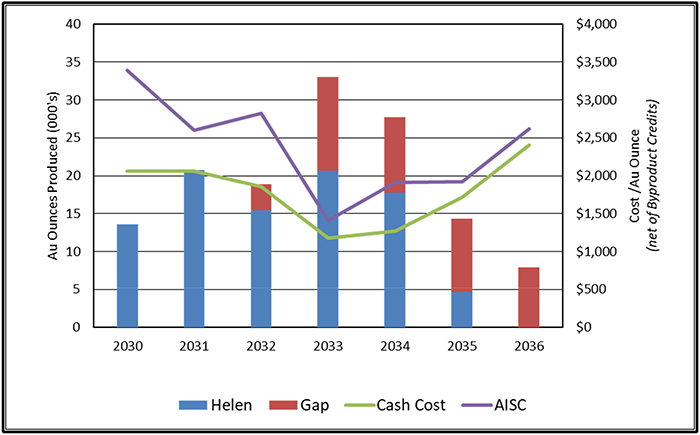

Figure 19-2 Gold Production and Unit Costs (With Inferred)

     211

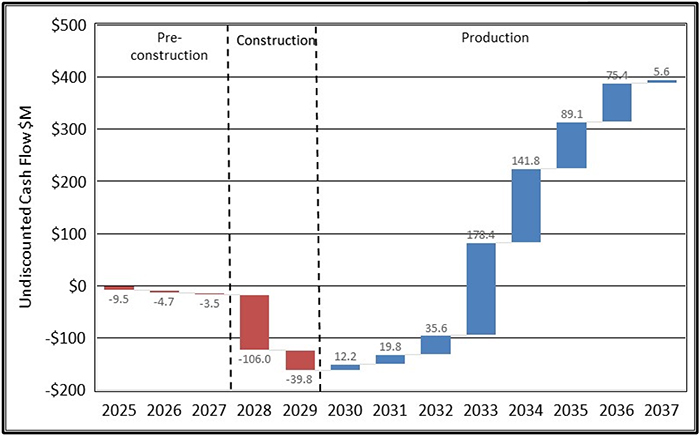

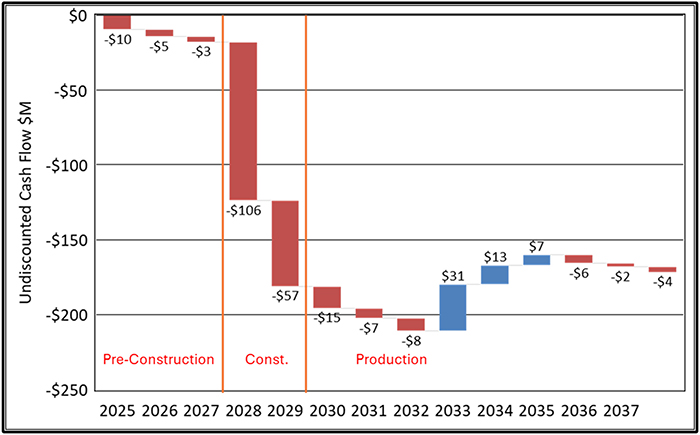

Figure 19-3 Cash Flow Waterfall Chart Including Pre-Construction Costs (With Inferred)

     211

Figure 19-4 Gold Production and Unit Costs (Without Inferred)

     212

Figure 19-5 Cash Flow Waterfall Chart Including Pre-Construction Costs (Without Inferred)

     212

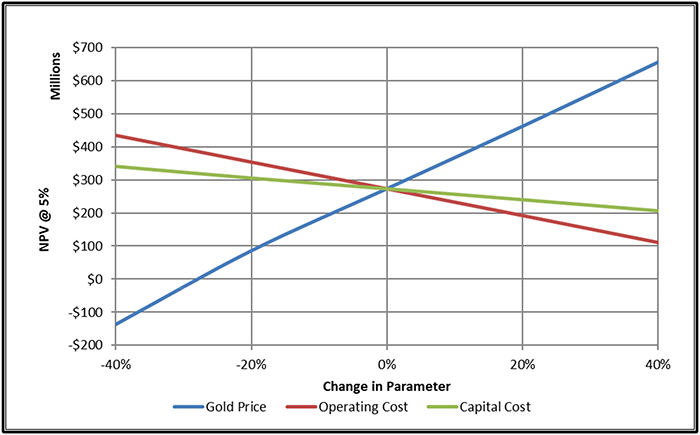

Figure 19-6 NPV 5% Sensitivity

     213

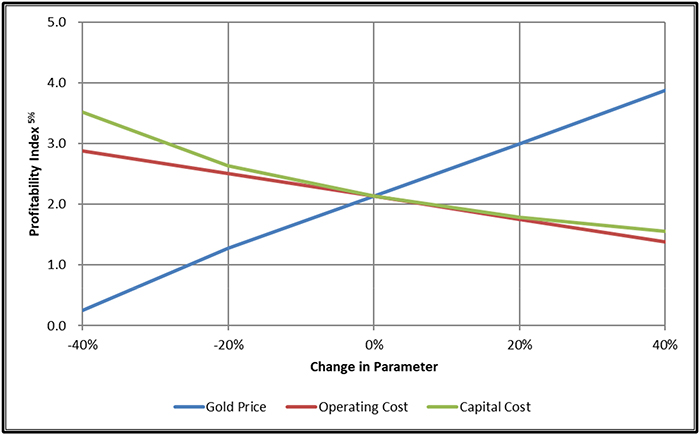

Figure 19-7 Profitability Index 5% Sensitivity

     213

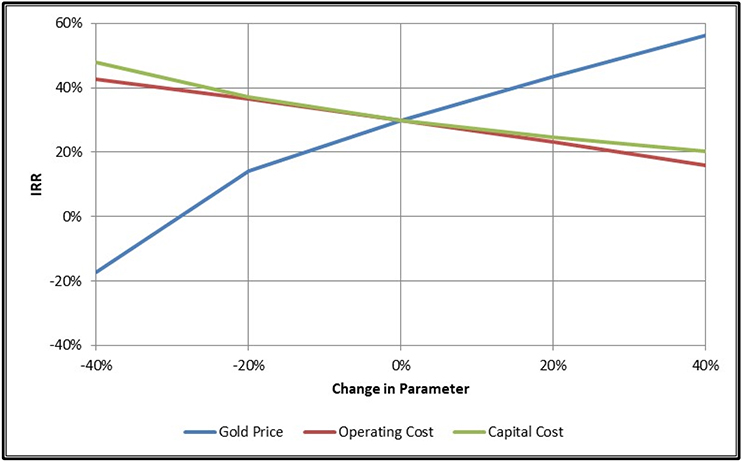

Figure 19-8 IRR Sensitivity

     214



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  Page xvii . 



List of Abbreviations





A



Ampere



kA



kiloamperes



AA



atomic absorption



kCFM



thousand cubic feet per minute



AGP



Acid Generation Potential



Kg



Kilograms



Ag



Silver



km



kilometer



ANFO



ammonium nitrate fuel oil



km2



square kilometer



ANP



Acid Neutralization Potential



kWh/t



kilowatt-hour per ton



Au



Gold



LoM



Life-of-Mine



AuEq



gold equivalent



m



meter



btu



British Thermal Unit



m2



square meter



°C



degrees Celsius



m3



cubic meter



CCD



counter-current decantation



masl



meters above sea level



CIL



carbon-in-leach



mg/L



milligrams/liter



CoG



Cut off grade



mm3



cubic millimeter



cm



centimeter



MME



Mine & Mill Engineering



cm2



square centimeter



Moz



million troy ounces



cm3



cubic centimeter



Mt



million tonnes



cfm



cubic feet per minute



MTW



measured true width



CRec



core recovery



MW



million watts



CSS



closed-side setting



m.y.



million years



CTW



calculated true width



NGO



non-governmental organization



°



degree (degrees)



NI 43-101



Canadian National Instrument 43-101



dia.



diameter



oz



Troy Ounce



EA



Environmental Assesment



opt



Troy Ounce per short ton



EIS



Environmental Impact Statement



oz/ton



Troy Ounce per short ton



EMP



Environmental Management Plan



%



percent



FA



fire assay



PLC



Programmable Logic Controller



Ft



Foot



PLS



Pregnant Leach Solution



Ft2



Square foot



PMF



probable maximum flood



Ft3



Cubic foot



POO



Plan of Operations



g



Gram



ppb



parts per billion



g/L



gram per liter



ppm



parts per million



g-mol



gram-mole



QAQC



Quality Assurance/Quality Control



g/t



grams per metric tonne



RC



reverse circulation drilling



ha



hectares



ROM



Run-of-Mine



HDPE



Height Density Polyethylene



RQD



Rock Quality Description



HTW



horizontal true width



SEC



U.S. Securities & Exchange Commission



ICP



induced couple plasma



Sec



second



ID2



inverse-distance squared



SG



specific gravity



ID3



inverse-distance cubed



SPT



Standard penetration test



mm



millimeter



ton



US Short Ton



mm2



square millimeter



Tonne



Metric Tonne





 Practical Mining LLC   March 26, 2025 


 Page 18

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  1.

Summary



  1.1.

Introduction

Practical Mining LLC (Practical or PM) was engaged by i-80 Gold Corp., and Premier Gold Mines USA, Inc. (together i-80, Premier or the Company) to prepare an Initial Assessment (IA) Technical Report Summary (TRS) on the McCoy Cove Project (Cove or The Project) in Lander County, Nevada. This Technical Report (TRS) has been prepared in accordance with Securities and Exchange Commission (SEC) S-K regulations (Title 17, Part 229, Items and 1300 through 1305).

This TRS dated the 26th day of March 2025 with an effective date of December 31, 2024 is the initial statement of mineral resources for i-80 Gold Corporation (i-80) under S-K regulations. The Company has previously reported mineral resources under Canadian NI 43-101 regulations. This TRS presents an underground mine plan, metallurgical testing, hydrogeologic summary, and financial analysis for the proposed Cove Underground Mine.

The mineral resource estimation generated for the 2021 Preliminary Economic Assessment (PEA) included only drillholes completed prior to January 1, 2021. Since then, i-80 has completed roughly 5,700 feet of underground drift development. A resource conversion drill program consisting of 125 drill holes totaling approximately 140,000 feet is ongoing and expected to be completed in Q3 2025. The resource estimation will be updated following the completion of the drill program. This TRS updates the mineral resource estimate with current metal pricing and cost estimates.

Cautionary Notes:



  1.

The financial analysis contains certain information that may constitute “forward-looking information” and “forward-looking statements” (together, “forward-looking information”) under applicable Canadian and United States securities legislation. Forward-looking information includes, but is not limited to, statements regarding the Company’s achievement of the full-year projections for ounce production, production costs, AISC costs per ounce, cash cost per ounce and realized gold/silver price per ounce, the Company’s ability to meet annual operations estimates, and statements about strategic plans, including future operations, future work programs, capital expenditures, discovery and production of minerals, price of gold and currency exchange rates, timing of geological reports and corporate and technical objectives. Forward-looking information is necessarily based upon a number of assumptions that, while considered reasonable, are subject to known and unknown risks, uncertainties, and other factors



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Summary

  Page 19 





which may cause the actual results and future events to differ materially from those expressed or implied by such forward looking information, including the risks inherent to the mining industry, adverse economic and market developments and the risks identified in i-80’s management information circular under the heading “Risk Factors”. There can be no assurance that such information will prove to be accurate, as actual results and future events could differ materially from those anticipated in such information. Accordingly, readers should not place undue reliance on forward-looking information. All forward-looking information contained in this report is given as of the date hereof and is based upon the opinions and estimates of management and information available to management as at the date hereof. i-80 disclaims any intention or obligation to update or revise any forward-looking information, whether as a result of new information, future events or otherwise, except as required by law; and

  2.

This IA is preliminary in nature, it includes inferred mineral resources that are considered too speculative geologically to have the economic considerations applied to them that would enable them to be categorized as mineral reserves, and there is no certainty that the IA will be realized.



  1.2.

Property Description

The Cove Project covers 32,110 acres and is located 32 miles south of the Town of Battle Mountain, in the Fish Creek Mountains of Lander County, Nevada. It is centered approximately at 40°22’ N and 117°13’ W and lies within the McCoy Mining District. The project area contains 1,728 unpatented and nine patented mining claims owned 100% by i-80, through its wholly-owned subsidiaries Premier Gold Mines USA, Inc. and Au-Reka Gold Corp. The unpatented claims are on land administered by the Bureau of Land Management (BLM).

The Cove deposit consists of the Helen, Gap, CSD, and 2201 zones. They are located beneath the historically mined Cove open pit and extend approximately 2,000 feet northwest from the pit. The Cove deposit was mined by Echo Bay Mines Ltd. (Echo Bay) between 1987 and 2001. During this period the Cove deposit produced 2.6 million ounces of gold and 100 million ounces of silver. Gold and silver production from heap leach pads continued until 2006.



  1.3.

Geology and Mineral Resource

The Cove Project contains four structurally controlled mineralized zones within the Triassic sedimentary package. The Helen and Gap zones are Carlin Style disseminated refractory gold deposits. The Cove South Deep (CSD) gold and silver mineralization is associated with disseminated sulfides and is characterized by Ag:Au ratios of 50:1 to over 100:1. The 2201 zone is comprised of sulfide mineralization within sheeted stockwork veins with high concentrations of lead and zinc (Figure 1-1).





 Practical Mining LLC   March 26, 2025 


 Page 20

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 

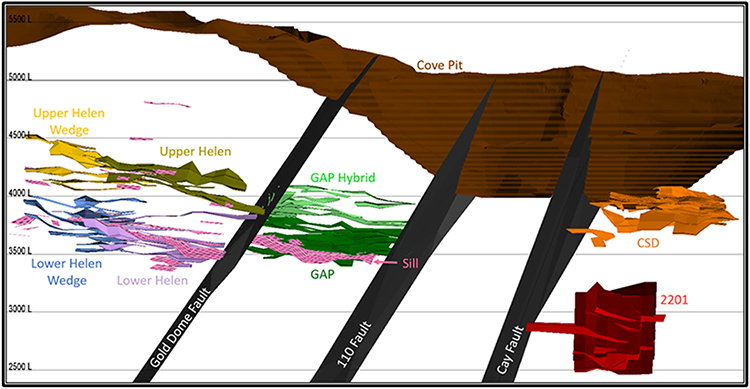

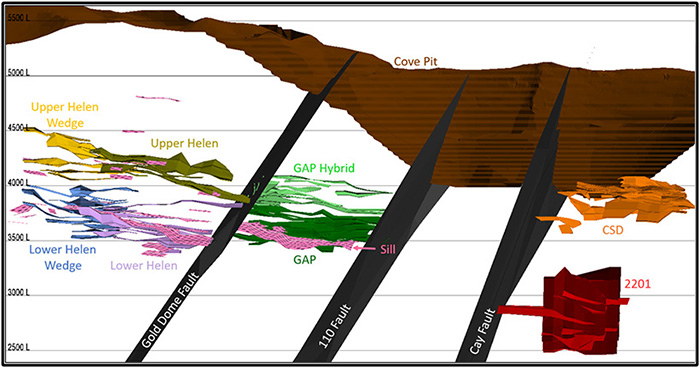

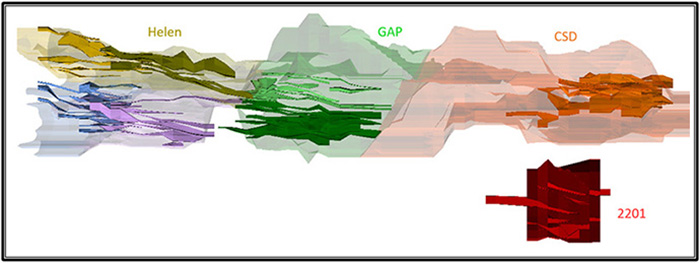

Figure 1-1 Section View of Cove Mineralization looking NE

LOGO

Mineral Resources are constrained to high-grade wireframe models constructed at a nominal 0.09 opt (3 g/t) grade shell. The mineral resource estimate relies on data from 387 core drill holes totaling 548,038 feet and 1,010 reverse circulation (RC) drill holes totaling 579,443 feet. From these drill holes, 3,146 samples were flagged within the high-grade wireframes to be used in grade estimation.

Parent block dimensions are 100 ft x 100 ft x 100 ft with sub-block dimensions as small as 1 ft x 1 ft x 1 ft. Block grades were estimated using Inverse Distance Cubed (ID3) methods.

A block is classified as Indicated if there are at least two composites within an average distance of 100 feet or less and at least one of the samples is within fifty feet. A block is classified Inferred if there are at least two composites within 300 feet but more than 100 feet. Cove Mineral Resources as of December 31, 2024 are presented in Table 1-1.

Table 1-1 Summary of Cove Mineral Resources at the End of the Fiscal Year Ended December 31, 2024


      Tons
(000)


 Tonnes 

 (000) 



  Au    

(opt) 



  Au  

  g/t  



  Ag  

  (opt)  



  Ag  

  (g/t)  



 Au ozs 

 (000) 



 Ag ozs 

 (000) 


      Indicated Mineral Resource


Helen

   743    674    0.271    9.3    0.074    2.6    201    55


Gap

   280    254    0.219    7.5    0.239    8.9    61    72


CSD

   275    249    0.175    6.0    1.603    55.0    48    441



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Summary

  Page 21 




      Tons
(000)


 Tonnes 

 (000) 



  Au    

 (opt)  



  Au  

  g/t  



  Ag  

  (opt)  



  Ag  

  (g/t)  



 Au ozs 

 (000) 



 Ag ozs 

 (000) 



Total Indicated

   1,298    1,177    0.239    8.2    0.438    15.0    310    568

      Inferred Mineral Resource


Helen

   1,743    1,582    0.245    8.4    0.083    2.9    427    146


Gap

   2,229    2,022    0.244    8.4    0.262    9.0    543    585


CSD

   319    290    0.173    5.9    1.685    57.8    55    538


2201

   168    153    0.780    26.7    1.016    34.8    131    171


Total Inferred

   4,459    4,047    0.259    8.9    0.323    11.1    1,156    1,439

Notes:



  1.

Mineral resources have been estimated at a gold price of $2,175 per troy ounce and a silver price of 27.25 per troy ounce. Refer to Section 16.1for a discussion on metal pricing;



  2.

Mineral resources have been estimated using gold metallurgical recoveries ranging from 73.2% to 93.3% for roasting and 78.5% to 95.1 % for pressure oxidation;



  3.

Roaster cutoff grades range from 4.15 to 5.29 Au g/t (0.121 to 0.154 opt) and pressure oxidation cutoff grades range from 3.83 to 4.64 Au g/t (0.112 to 0.135 opt);



  4.

The effective date of the mineral resource estimate is December 31, 2024;



  5.

Mineral resources, which are not mineral reserves, do not have demonstrated economic viability. The estimate of mineral resources may be materially affected by environmental, permitting, legal, title, socio-political, marketing, or other relevant factors;



  6.

An inferred mineral resource is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of limited geological evidence and sampling. Geological evidence is sufficient to imply but not verify geological and grade or quality continuity. An inferred mineral resource has a lower level of confidence than that applying to an indicated mineral resource and must not be converted to a mineral reserve. It is reasonably expected that the majority of inferred mineral resources could be upgraded to indicated mineral resources with continued exploration; and



  7.

The reference point for mineral resources is in situ.



  1.4.

Metallurgical Testing and Processing

Metallurgical testing of Cove samples dates back to the 1960’s. The most recent relevant testing are programs in 2008 and 2009 at Kappes Cassiday Associates and 2017 at SGS Lakefield Research.

The testing has generally shown that Helen and Gap resources based on the composites tested appear to be generally refractory to conventional whole ore cyanidation and will need some type of oxidation process to significantly increase gold extractions over whole ore cyanidation. Most of the samples were also double refractory where gold is both bound within sulfides and active carbonaceous matter which adsorbs dissolved gold (known as “preg-robbing”) faster than activated carbon. Both the sulfides and the preg-robbing carbonaceous matter requires higher temperature oxidation which can be achieved through roasting followed by carbon-in-leach. The testing showed that Helen Zone samples are generally more amenable to roasting and carbon-in-





 Practical Mining LLC   March 26, 2025 


 Page 22

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



leach (CIL) processing. Gap Zone samples were more amenable to treatment using pressure oxidation and residue CIL processing.

The 2017 data set was too small to establish any clear relationships between mineralogy, head grades, and recoveries for either Helen or Gap samples. although it is clear that mineralogy factors such as arsenic content and total carbonaceous matter or total organic carbon influence recoveries. Improved recovered were achieved using either roasting and calcine leaching/CIL or pressure oxidation followed by leaching or CIL compared to direct leaching or CIL alone.

In 2020, testing was commenced on Helen and Gap samples to evaluate chlorination as a lower cost method for sulfide oxidation and passivation of active carbonaceous matter. This method was previously employed at several Nevada operations. This method was not pursued due to higher than anticipated operating cost estimates.



  1.5.

Mining, Infrastructure, and Project Schedule

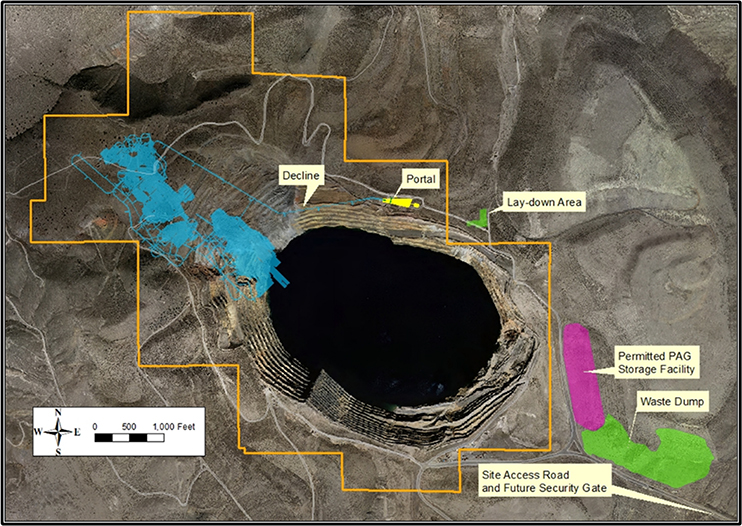

Access to the mineralized zones will be through a portal located just north of the Cove Pit. Primary development totals 23,048 feet with gradients up to +/- 15%. Ventilation and secondary egress will be gained through a ventilation intake portal in the southwest pit wall and an exhaust raise equipped with a personal hoist for evacuation.

Drift and fill mining with mining heights of fifteen feet will be the primary method for extraction of the Helen and Gap mineral resource. Where the mineralized lenses thicken, breasting the sill or back can recover additional mineralization. Waste rock from development and waste reclaimed from historic dumps will be used for Cemented Rock Fill (CRF) or unconsolidated (GOB) fill as appropriate to achieve high levels of extraction. Development and production mining will be performed by a qualified mining contractor thus reducing the capital requirements for the Project.

A trucking contractor will transport mineralization mined over local, state, and federal roads for processing at a third party roaster or at i-80’s Lone Tree pressure oxidation (POX) facility.

Dewatering will be accomplished using 15 surface wells and a pit lake barge producing up to 43,000 gallons per minute (gpm) Dewatering water will be piped to several Rapid Infiltration Basins (RIBs) constructed at the northern project boundary. The RIB locations have been selected to prevent recharge into the Cove hydrogeologic system. During the summer irrigation season water will be provided to local ranchers for irrigation of alfalfa crops.

Long term electrical power demands up to 11.5 MW will be supplied by NV Energy via an existing 120kV transmission line which connects the Project site to NV Energy’s Bannock substation. A new substation and 13.8kV distribution system will be constructed at Cove.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Summary

  Page 23 



Power for initial mine development and underground delineation drilling will be provided from an existing 24.9kV distribution line that also terminates on the property. A substation for the 24.9kV line and a distribution line to the portal site was constructed in 2019. Power will be stepped down from the 120kV substation and use the same distribution line.

Baseline environmental studies have been undertaken to facilitate the National Environmental Protection Act (NEPA) administered by federal land management agencies. This, along with dewatering, constitutes the critical path to production. The overall project timeline is shown in Figure 1-2.

Figure 1-2 Project Timeline

LOGO



  1.6.

Economic Analysis

Capital spending over the life of the project is subdivided into three categories. Pre-development spending of $17.3M encompasses definition drilling, baseline data collection, engineering, hydrogeologic investigations, metallurgical testing and permitting. Construction capital is required for Helen and Gap dewatering, infrastructure and mine development and is projected at $157.4 M over a two-year period commencing in 2028. Sustaining capital includes mine development and facilities. Sustaining capital totals $49.1M commencing in 2030.

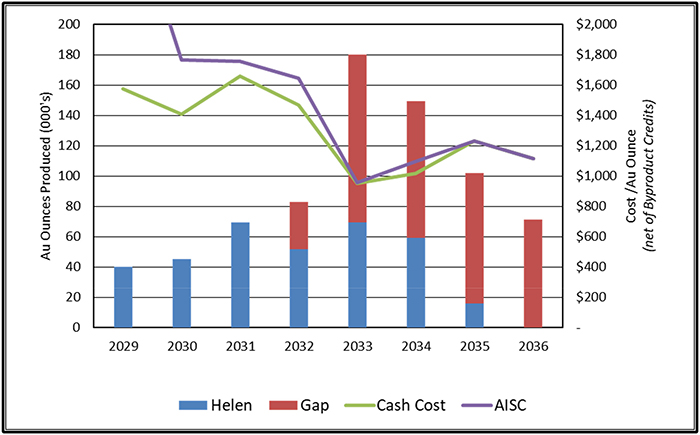

Gold recovery will total 740,000 ounces over the eight-year mine production life. Material mined for processing averages 0.305 Au opt. Full production is reached after two years of ramp up in 2031 and averages 1,190 tpd from 2031 through 2036.





 Practical Mining LLC   March 26, 2025 


 Page 24

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The Helen and Gap zones contain 70% and 89% inferred mineral resources respectively. The results without inferred are the result of a gross factorization of the production stream. There has been no adjustment to capital development, dewatering capital or mine facilities capital. Furthermore, there has not been any recalculation of productivities or operating costs due to the lower production rates.

Table 1-2 Financial Statistics

         With Inferred         Without  Inferred  

Gold price (US$/oz)

   $2,175

Silver price (US$/oz)

   $27.25

Mine life (years)

   8

Average mineralized mining rate (tons/day)

   1,010    200

Average grade (oz/t Au)

   0.305    0.313

Average gold recovery (roaster %)

   79%    79%

Average gold recovery (autoclave %)

   86%    86%

Average annual gold production (koz)

   92    19

Total recovered gold (koz)

   740    148

Pre-development capital ($M)

   $17.2    $17.2

Mine construction capital ($M)

   $157.4    $157.4

Sustaining capital (M$)

   $49.1    $49.1

Construction Start Date

   1/1/2028
Economic Indicators Post Construction Decision 3

Cash cost (US$/oz) 1

   $1,201    $1,697

All-in sustaining cost (US$/oz)2

   $1,310    $2,240

All in cost (US$/oz) 5

   $1,635    $3,302

Project after-tax NPV5% (M$)

   $274    ($160)

Project after-tax NPV8% (M$)

   $216    ($159)

Project after-tax IRR

   30%    NA

Payback Period

   5.5 Years    NA

Profitability Index 5%4

   2.4    0.2
Financial Statistics Including Pre-Construction Period (1/1/2025 – 12/31/2027) 6

All in cost (US$/oz) 5

   $1,658    $3,419



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Summary   Page 25 



         With Inferred         Without  Inferred  

Project after-tax NPV5% (M$)

   $256    ($178)

Project after-tax NPV8% (M$)

   $198    ($177)

Project after-tax IRR

   25%    NA

Payback Period

   6.8 years    NA

Profitability Index 5%4

   1.9    0.2

Notes:

  1.

Net of byproduct sales;



  2.

Excluding income taxes, pre-construction capital, construction capital, corporate G&A, corporate taxes and interest on debt;



  3.

Discounted to 2028, Construction Start;



  4.

Profitability index (PI), is the ratio of payoff to investment of a proposed project. It is a useful tool for ranking projects because it allows you to quantify the amount of value created per unit of investment. A profitability index of 1 indicates breakeven;



  5.

Excluding corporate G&A, corporate taxes and interest on debt;



  6.

Discounted to 2025;



  7.

This IA is preliminary in nature, it includes inferred mineral resources that are considered too speculative geologically to have the economic considerations applied to them that would enable them to be categorized as mineral reserves, and there is no certainty that the IA will be realized. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability;



  8.

Inferred mineral resources constitute 70 % of the Helen zone and 89% of the Gap zone. The “Without Inferred” statistics presented are a gross factorization of the mine plan without any redesign of mine excavations or recalculation of productivities and costs. Capital costs are the same for the “With Inferred” and “Without Inferred” scenarios. The “Without Inferred” scenario is presented solely to illustrate the projects dependence on inferred mineral resources.



  9.

The financial analysis contains certain information that may constitute “forward-looking information” under applicable Canadian and United States securities regulations. Forward-looking information includes, but is not limited to, statements regarding the Company’s achievement of the full-year projections for ounce production, production costs, AISC costs per ounce, cash cost per ounce and realized gold/silver price per ounce, the Company’s ability to meet annual operations estimates, and statements about strategic plans, including future operations, future work programs, capital expenditures, discovery and production of minerals, price of gold and currency exchange rates, timing of geological reports and corporate and technical objectives. Forward-looking information is necessarily based upon a number of assumptions that, while considered reasonable, are subject to known and unknown risks, uncertainties, and other factors which may cause the actual results and future events to differ materially from those expressed or implied by such forward looking information, including the risks inherent to the mining industry, adverse economic and market developments and the risks identified in Premier’s annual information form under the heading “Risk Factors”. There can be no assurance that such information will prove to be accurate, as actual results and future events could differ materially from those anticipated in such information. Accordingly, readers should not place undue reliance on forward-looking information. All forward-looking information contained in this Presentation is given as of the date hereof and is based upon the opinions and estimates of management and information available to management as at the date hereof. Premier disclaims any intention or obligation to update or revise any forward-looking information, whether as a result of new information, future events or otherwise, except as required by law;



  1.7.

Conclusions

Metallurgical Testing





 Practical Mining LLC   March 26, 2025 


 Page 26

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  1.

Head assaying for both the Helen Zone and Gap indicated that the gold in the two resources will likely be finely disseminated and not amenable to gravity gold recovery;





  2.

The mineralogy of the Helen and Gap resources differ in two significant areas, the first being that the Helen appears to be lower in arsenic content than the Gap resource and that the Gap resource appears to be lower on average in TCM and TOC than the Helen resource;





  3.

The Helen composite arsenic assays indicate the mineral resources in Helen are lower in arsenic content than those in the Gap;





  4.

Based on the composites tested the Helen Zone appears to generally be more amenable to roasting and CIL processing;





  5.

Based on the composites tested, the Gap resource appears to generally be more amenable to pressure oxidation and CIL processing; and,





  6.

The data set was too small to establish any clear relations between mineralogy, metal head grade, and extractions for either resource although it is clear that mineralogy factors such as arsenic content and TCM or TOC are influencing extractions.

Toll Processing



  1.

The feed specifications appear to be somewhat rigid and could preclude some material being sent to the toll processor or result in penalties. Blending may allow shipment of some off-specification material provided appropriate material is available for onsite blending prior to shipping to the toll processor;



  2.

The terms appear to be consistent and typical with those encountered in the industry; and,



  3.

The recovery terms appear to be the result of analyzing the metallurgical data provided by i-80 Gold.

Mining and Infrastructure



  1.

Mining conditions typical for sedimentary deposits in the northeastern Nevada extensional tectonic environments are anticipated;

  2.

Dewatering the Helen and Gap zones will require up to fifteen wells and a pit lake barge pumping up to 43,000 gpm.

Financials



  1.

Capital requirements total $206.5M excluding $17.3M in pre-construction capital;

  2.

The project achieves NPV 5% of $274M and NPV 8% of $216M (excluding preconstruction capital);



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Summary

  Page 27 



  3.

When including the pre-construction capital, the NPV 5% reduces to $256M and the NPV 8% is $198M; and,

  4.

The estimated payback period is 5.6 years with an IRR of 30%.



  1.8.

Recommendations

Resource Delineation and Exploration



  1.

Resource delineation drilling will be completed in 2025 along with an updated resource model and feasibility study.

  2.

The existing Cove Pit prohibits drilling the Gap extension area and portions of the Gap deposit. These are the most prospective nearby areas for adding significant Mineral Resources; and,

  3.

Expansion of the 2201 Zone could add high grade mineralization to the project which could be accessed through the Helen and Gap infrastructure.

Dewatering



  1.

A detailed hydrogeologic study has been completed along with estimates of pumping rates, water table drawdown estimates and construction cost estimates. This information will be included in the upcoming feasibility study.

Mining



  1.

A geotechnical data collection program is ongoing. Characterization of geotechnical parameters should be included in the upcoming feasibility study:



  a.

The objectives of the program are to characterize the mining horizons using the Rock Mass Rating (RMR) system;



  b.

Collect downhole Acoustic Tele Viewer (ATV) drill logs to collect joint orientation data for mine designs and accurately estimate ground support requirements; and,



  c.

Collect full core samples for physical rock property testing.



  2.

Complete additional testing of potential back fill sources to optimize the Cemented Rock Fill (CRF) mix design; and,



  3.

Complete a ventilation simulation to predict Diesel Particulate Matter (DPM), carbon monoxide, and other contaminant concentrations.

Metallurgical Testing



  1.

Additional metallurgical testing will be needed to thoroughly investigate the variability and viability of Helen and Gap resources to evaluate pressure oxidation with CIL cyanidation





 Practical Mining LLC   March 26, 2025 


 Page 28

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





under Lone Tree conditions. Testing should also include baseline CIL tests and roasting testing as a comparison. Sampling objectives will include:





Samples from GAP and Helen zones and their major lithological units; Favret, Panther Dolomite. The samples should also address spatial variability within each zone.





Sample intrusive formations in each zone.





Assess variability of the responses to roasting and calcine cyanidation across the resources;





Assess variability of the responses to pressure oxidation and residue cyanidation across the resources;





Testing should attempt to establish head grade and extraction relations for use in more detailed resource modelling;





Mineralogy impacts need to be established and geologic domains within each resource need to be determined, and;





Additional comminution data should be collected to assess hardness variability within the zones and any potential impacts on throughput in the Lone Tree process plant.



  2.

The resource model should be advanced to include arsenic, TCM, TOC, mercury, lead, zinc, total copper selenium, barium, cobalt, nickel, and cadmium as these will be important for predicting grades if toll process offsite is used and potentially for estimating extractions within the resources;



  3.

The estimated cost for the suggested next phase metallurgical program is to $850,000 based on current market pricing.

Permitting and Development Decision



  1.

Baseline data collection in support of the Environmental Impact Statement should be done simultaneously to reduce the Project’s critical path and bring forward production; and

  2.

The project should proceed directly with a feasibility study to support a development decision.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Introduction

  Page 29 



  2.

Introduction



  2.1.

Registrant for Whom the Technical Report Summary was Prepared

This TRS was prepared for i-80 Gold Corporation and its subsidiaries Premier Gold Mines USA, Inc. and AuReka Gold Corporation (together i-80) in accordance with the requirements of the Securities and Exchange Commission (SEC) S-K regulations (Title 17, Part 229, Items 601 and 1300 through 1305) for i-80.



  2.2.

Terms of Reference and Purpose of this Technical Report

This Technical Report Summary is i-80’s initial statement of mineral resources for the Cove Project under regulation S-K 1300 and presents an Initial Assessment (IA) based on indicated and inferred mineral resources.

The quality of information, conclusions, and estimates contained herein are based on: i) information available at the time of preparation and ii) the assumptions, conditions, and qualifications set forth in this report. This IA is a preliminary technical and economic study of the economic potential of all or parts of mineralization to support the disclosure of mineral resources. This IA is preliminary in nature. It includes Inferred Mineral Resources that are considered too speculative geologically to have the economic considerations applied to them that would enable them to be categorized as Mineral Reserves, and there is no certainty that the Initial Assessment will be realized. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.



  2.3.

Sources of Information

This report is based in part on internal Company technical reports, previous studies, maps, published government reports, Company letters and memoranda, and public information as cited throughout this report and listed in Section 0 References. Reliance on Information Provided by the Registrant is listed in the Section 24 when applicable.

2.4. Details of Inspection

Table 2-1 summarizes the details of the personal inspections on the property by each qualified person or, if applicable, the reason why a personal inspection has not been completed





 Practical Mining LLC   March 26, 2025 


 Page 30

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 2-1 Personal Inspections by Qualified Professionals

Company    Discipline    Dates of Personal
Inspection
   Details of Inspection
Practical Mining    Mining, Mineral Resources and Mineral Reserves    October 16, 2024    Site specific hazard training, examined core and core logging procedures, examined underground exploration decline, observed core drilling operations
Raponi Engineering    Metallurgical Testing and Mineral Processing    None    The Cove Project does not have facilities for mineral processing.
Montgomery and Associates    Hydrogeology



  2.5.

Report Version

This TRS presents the inaugural statement of the Cove Project mineral resources by i-80 under 17 CFR § 229.1300. The Company has most recently disclosed mineral resources for the project under Canadian Securities NI 43-101 regulations with the report Titled “Preliminary Economic Assessment for the Cove Project, Lander County, Nevada” dated January 25, 2021.



  2.6.

Units of Measure

U.S. Imperial units of measure are used throughout this document unless otherwise noted. The units of measure used in this report are shown in Table 2-2. Currency is expressed as United States Dollars unless otherwise noted.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Introduction

  Page 31 



Table 2-2 Units of Measure

US Imperial to Metric conversions

Linear Measure

1 inch = 2.54 cm

1 foot = 0.3048 m

1 yard = 0.9144 m

1 mile = 1.6 km

Area Measure

1 acre = 0.4047 ha

1 square mile = 640 acres = 259 ha

Weight

1 short ton (st) = 2,000 lbs = 0.9071 metric tons

1 lb = 0.454 kg = 14.5833 troy oz

Assay Values

1 oz per short ton = 34.2857 g/t

1 troy oz = 31.1036 g

1 part per billion = 0.0000292 oz/ton

1 part per million = 0.0292 oz/ton = 1g/t



  2.7.

Coordinate Datum

Spatial data utilized in analysis presented in this TR are projected to UTM Zone 11 North American Datum 1983 feet. All spatial measurements are in international survey feet.



  2.8.

Mineral Resource and Mineral Reserve Definitions

The terms “mineral resource” and “mineral reserves” as used in this Technical Report Summary have the following definitions.

Mineral Resources

17 CFR § 229.1300 defines a “mineral resource” as a concentration or occurrence of material of economic interest in or on the Earth’s crust in such form, grade or quality, and quantity that there are reasonable prospects for economic extraction. A mineral resource is a reasonable estimate of mineralization, taking into account relevant factors such as cut-off grade, likely mining dimensions, location or continuity, that, with the assumed and justifiable technical and economic conditions, is likely to, in whole or in part, become economically extractable. It is not merely an inventory of all mineralization drilled or sampled.

A “measured mineral resource” is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of conclusive geological evidence and sampling. The level of





 Practical Mining LLC   March 26, 2025 


 Page 32

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



geological certainty associated with a measured mineral resource is sufficient to allow a qualified person to apply modifying factors, as defined in this section, in sufficient detail to support detailed mine planning and final evaluation of the economic viability of the deposit. Because a measured mineral resource has a higher level of confidence than the level of confidence of either an indicated mineral resource or an inferred mineral resource, a measured mineral resource may be converted to a proven mineral reserve or to a probable mineral reserve.

An “indicated mineral resource” is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of adequate geological evidence and sampling. The level of geological certainty associated with an indicated mineral resource is sufficient to allow a qualified person to apply modifying factors in sufficient detail to support mine planning and evaluation of the economic viability of the deposit. Because an indicated mineral resource has a lower level of confidence than the level of confidence of a measured mineral resource, an indicated mineral resource may only be converted to a probable mineral reserve.

An “inferred mineral resource” is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of limited geological evidence and sampling. The level of geological uncertainty associated with an inferred mineral resource is too high to apply relevant technical and economic factors likely to influence the prospects of economic extraction in a manner useful for evaluation of economic viability. Because an inferred mineral resource has the lowest level of geological confidence of all mineral resources, which prevents the application of the modifying factors in a manner useful for evaluation of economic viability, an inferred mineral resource may not be considered when assessing the economic viability of a mining project and may not be converted to a mineral reserve.

Mineral Reserves

17 CFR § 229.1300 defines a “mineral reserve” as an estimate of tonnage and grade or quality of indicated and measured mineral resources that, in the opinion of the qualified person, can be the basis of an economically viable project. More specifically, it is the economically mineable part of a measured or indicated mineral resource, which includes diluting materials and allowances for losses that may occur when the material is mined or extracted.

This Initial Assessment was compiled by Practical Mining LLC (Practical or PM), Raponi Engineering (Raponi) and Montgomery and Associates (M&A). All three firms are third-party firms comprising experts in their respective fields in accordance with 17 CFR § 229.1302(b)(1). i-80 has determined that all three firms meet the qualifications specified under the definition of qualified person in 17 CFR § 229.1300



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Introduction

  Page 33 



Table 2-3 QP Responsibility for Sections of This Report

Section     Title    QP Firm
1.1.

Introduction



Practical, Raponi

1.2.

Property Description



Practical

1.3.

Geology and Mineral Resource



Practical

1.4.

Metallurgical Testing and Processing



Raponi

1.5.

Mining, Infrastructure, and Project Schedule



Practical

1.6.

Economic Analysis



Practical

1.7.

Conclusions



Practical, Raponi, M&A

1.8.

Recommendations



Practical, Raponi M&A

2

Introduction



Practical

3

Property Description and Location



Practical

4

Accessibility, Climate, Local Resources, Infrastructure, and Physiography



Practical

5

History



Practical

6

Geologic Setting, Mineralization and Deposit



Practical

7

Exploration



Practical

7.1

Geologic



Practical

7.2

Hydrogeologic



M&A

8

Sample Preparation, Analysis and Security



Practical

8.1.

Pre-2012



Practical

9

Data Verification



Practical

10

Mineral Processing and Metallurgical Testing



Raponi

11

Mineral Resource Estimates



Practical

12

Mineral Reserve Estimates



Practical

13

Mining Methods



Practical

14

Recovery Methods



Raponi

15

Infrastructure



Practical

16

Market Studies and Contracts



Practical

17    Environmental Studies, Permitting and Plans, Negotiations or Agreements with Local Individuals or Groups

Practical

18.1.

Capital Costs



Practical, Raponi

18.2.

Closure and Reclamation



Practical

18.3.

Operating Costs



Practical, Raponi

18.4.

Cutoff Grade



Practical

19

Economic Analysis



Practical

20

Adjacent Properties



Practical

21

Other Relevant Data and Information



Practical

22

Interpretation and Conclusions



Practical, Raponi, M&A

23

Recommendations



Practical, Raponi, M&A





 Practical Mining LLC   March 26, 2025 


 Page 34

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Section     Title    QP Firm
24

References



Practical, Raponi, M&A

25

Reliance on Information Provided by the Registrant



Practical, Raponi, M&A



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Property Description and Location

  Page 35 



  3.

Property Description and Location



  3.1.

Property Description

The McCoy-Cove Project covers 32,110 acres and is located 32 miles south of the Town of Battle Mountain, in the Fish Creek Mountains of Lander County, Nevada. It is centered approximately at 40°22’ N and 117°13’ W and lies within the McCoy Mining District (Figure 3-1).

The Cove Mineral Resource consists of the Helen, Gap, CSD, and 2201 deposits. They are located beneath the historically mined Cove open pit and extend approximately 2,000 feet northwest from the pit. The historic McCoy open pit is located approximately 0.6 mi to the southwest. The Cove deposit was mined by Echo Bay Mines Ltd. (Echo Bay) between 1987 and 2001 and produced 2.6 million ounces of gold and 100 million ounces of silver. McCoy was mined between 1986 and 2001 and produced approximately 0.88 million ounces of gold and 3.0 million ounces of silver. Gold and silver production from heap leach pads continued until 2006. The McCoy-Cove project area also includes several exploration targets.

The Project is located on federal land administered by the US Department of Interior - Bureau of Land Management (BLM) and patented mining claims.





 Practical Mining LLC   March 26, 2025 


 Page 36

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 3-1 Cove Location Map

LOGO



  3.2.

Status of Mineral Titles

The McCoy-Cove Project consists of 1,727 100%-owned unpatented claims and nine owned patented claims. The claim map provided by i-80 is shown in Figure 3-2.

On June 15, 2006, Victoria Gold Corporation (Victoria) entered into a “Minerals Lease and Agreement” to lease a portion of the Project from Newmont. Under the terms of the Minerals Lease and Agreement, Victoria was subject to escalating yearly work commitments in the aggregate amount of $8.5 million over a period of seven years (consisting of $0.3 million, $0.7 million, $1.0 million, $1.25 million, $1.5 million, $1.75 million, and $2.0 million, respectively, in each year of the first seven years of the agreement dated June 15, 2006), of which $1.0 million was a firm obligation and was to be expended by June 15, 2008 (completed). Excess expenditures were allowed to be carried forward. Newmont acknowledged that Victoria spent over $9.1 million in exploration at the Project between June 15, 2006 and March 16, 2009 and satisfied the work commitment of Section 2(a) of the Minerals and Lease Agreement.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Property Description and Location

  Page 37 



On June 14, 2012, Premier, through its wholly owned subsidiary, Au-Reka Gold Corporation (Au-Reka Gold), acquired a 100% interest in the Cove portion of the Project from Victoria pursuant to an asset purchase agreement dated June 4, 2012 (Cove Purchase Agreement). In connection with the acquisition, Premier paid an aggregate of C$8,000,000 on closing, C$4,000,000 of which was paid in cash and the balance of which was satisfied by the issuance of 892,857 common shares of Premier. In addition, Premier issued a promissory note (Cove Acquisition Promissory Note) in the amount of C$20,000,000 payable in C$10,000,000 allotments on the first and second anniversary dates of the closing date of the acquisition. The Cove Promissory Note was repaid in full in June 2014. The Company also reimbursed Victoria in the amount of $1,206,277 in respect of exploration and related activities conducted on the Cove portion of the Project between March 15, 2012 and the closing of the transaction.

Pursuant to the Cove Purchase Agreement in the event of production from the Cove portion of the Project, Premier will make additional payments to Victoria in the aggregate amount of C$20,000,000 (consisting of cash and/or the equivalent value of Premier common shares, at Premier’s option), payable in four installments of $5,000,000 each upon the cumulative production, to Premier’s account, of 250,000, 500,000, 750,000 and 1,000,000 troy ounces of gold from the Cove potion of the Project (Deferred Bullet Payment Consideration).

In September 2014, Premier entered into an agreement with Newmont to acquire a 100% interest in the property. Upon closing of the transaction, Premier paid Newmont $15 million, replaced bonding of approximately $4 million via a surety policy, and transferred to Newmont all land sections that comprised the South Carlin Property. In addition, Premier made staged payments to Newmont over 18 months equal to $6 million. Additional details of the transaction included the elimination of Newmont’s previous “back-in” rights to the Project, a 10-year good faith milling agreement for ores mined at McCoy-Cove and retention of a 1.5% NSR in the property.

Premier entered into an earn-in agreement (Barrick Earn-In Agreement) dated December 11, 2017, but effective January 8, 2018, with certain subsidiaries of Barrick Gold Corporation (Barrick).

Pursuant to the Barrick Earn-In Agreement, Barrick had the option to earn a 60% interest in the exploration portion of the Project (McCoy Joint Venture Property) by spending $22.5 million in exploration before June 30, 2022 (Barrick Earn-in). The McCoy Joint Venture Property excludes the “Cove Deposits” (being the claims within the “Carveout”) portion of the Project which was retained solely by Premier.

On December 16, 2020 Premier Gold Mines announced that it entered into an agreement with Equinox Gold whereby Equinox Gold would acquire all the outstanding shares of Premier. At Closing, Premier would spin-out i-80 Gold Corporation. i-80 was to include 100% of Premier’s interest in the McCoy/Cove Project.





 Practical Mining LLC   March 26, 2025 


 Page 38

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 3-2 Mining Claim Map

LOGO

Cove - mccoy Land Position map



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Property Description and Location

  Page 39 



On February 6, 2020 Barrick formally terminated the Earn-In Agreement and all land subject to it is once again 100% held by Premier.

On May 17, 1977 Houston Oil and Minerals granted a 2% net Smelter return royalty to the Summa Corporation. The royalty applies to the portion of the claims in existence on that date.

A 2% net smelter return royalty was collectively reserved by Robert Chiara, et. al., on the Lone Star 1 – 4 claims. These claims do not contain any of the Cove Mineral Resource. Figure 3-3 shows the area covered by the Summa and Chiara Royalties.

Figure 3-3 Summa and Chiara Royalties and Resource Location

LOGO



  3.3.

Property Holding Costs

Unpatented claims have annual maintenance fees of $200 per claim payable to the Bureau of Land Management and a notice of intent to hold (NIH) in the amount of $12 per claim payable to Lander





 Practical Mining LLC   March 26, 2025 


 Page 40

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



County. The BLM MLRS mining claim database shows all claim fees paid through September 2025. County NIH fee payments are current.

Patented claims are subject to property taxes, which were current at the time of this report. There was also a special assessment for Reese River Basin water rights in 2024, which was paid. Annual property holding costs are shown in Table 3-1.

Table 3-1 Property Holding Costs


Description    Payee    Quantity     Amount

Unpatented Claim Maintenance Fee    BLM    1,728      $345,600.00

Notice of Intent to Hold    Lander County       1,728      $20,748.00

Patented Claim Property Taxes    Lander County    9      $281.20

2024 Reese River Basin water right special assessment    Lander County         $10,578.73


Total                $377,179.81



  3.4.

Environmental Liabilities

The Project was under active reclamation by Newmont from 2003 to 2014. Activities include re-contouring and seeding of the dumps, leach pads, and tailings facility. All surface infrastructure outside of the maintenance shop and guard shack has been removed.

Au-Reka is responsible for all environmental liabilities related to the closure of the McCoy-Cove Project as well as final clean-up of surface drill pads and minor drill roads. All closure activities other than evaporation of the tailings facility, reclamation of water treatment and storage ponds, reclamation of exploration drill pads, and water quality testing have been temporarily put on hold pending the potential for future production out of the Cove-Helen underground.

The authors are not aware of any additional environmental liabilities on the property. The authors are not aware of any other significant factors and risks that may affect access, title, or the right or ability to perform the proposed work program on the property.



  3.5.

Permits/Licenses

Currently, Au-Reka is working under the Cove-Helen Underground Mine Project Plan of Operations (POO No. NVN-088795) approved 2018. The POO authorizes Au-Reka to complete up to 100 acres of surface exploration disturbance as well as an underground exploration decline and subsequent bulk sample of up to 120,000 tons.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Accessibility, Climate, Local Resources, Infrastructure,

and Physiography

  Page 41 



4.  Accessibility, Climate, Local Resources, Infrastructure, and Physiography



  4.1.

Accessibility

Access to the Project area is via State Highway 305, 30 miles south from the town of Battle Mountain, and then west approximately seven miles along the paved McCoy Mine Road. Battle Mountain is located on Highway 80, approximately 70 miles west of Elko, Nevada.

Topographic elevations vary across the project site from 4,600 to 7,200 feet amsl.



  4.2.

Climate

The climate in Lander County is typical of the high-desert environment. Average July temperatures range between 65°F and 75°F in the lower valleys and cooler in the higher elevations. Summer highs in the valleys are approximately the mid-90°F, with temperatures in the range of 50°F or 60°F at night. Winter temperatures average between 20°F and 30°F in the valleys with the possibility of frost from early September through June.

Average rainfall is 10 in to 15 in, with less than 10 in. of rain in the lowest areas and up to 20 in. occurring in the mountains. The majority of precipitation falls between November and May, with the possibility of summer thunderstorms.

All of the mining operations in the area operate 365 days per year.



  4.3.

Local Resources

The McCoy Mining District has a long history of mining activity, and mining suppliers and contractors are locally available. Both experienced and general labor is readily available from the towns of Elko in Elko County (100 miles north and east of the Project) and Winnemucca in Humboldt County (83 miles north and west of the Project). Some services are also available in Battle Mountain (30 miles north of the Project). There are a number of mining operations in the area and as such there is always competition for employees.



  4.4.

Infrastructure

Dirt track access roads are located throughout the property for exploration access. The Project exploration facilities consist of a guard shack, mechanic shop and numerous shipping containers used as storage sheds in the laydown and core storage yards.





 Practical Mining LLC   March 26, 2025 


 Page 42

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Nevada Energy (formerly Sierra Pacific) power lines run to the property at the McCoy-Cove Project. Power is available at the site from a 120 kV transmission line and a 24.9 kV distribution line.

Previous mining within the Project has left a legacy of:





Cove open pit and pit lake;





Reclaimed leach pads;





Tailings dam (partially reclaimed);





Reclaimed dumps; and





Reclaimed infiltration basins.

All aforementioned facilities except for the tailings dam have been released by state and federal agencies and are considered reclaimed.



  4.5.

Physiography

The Project lies in the Basin and Range Province, a structural and physiographic province comprised of generally north to north-northeast trending, fault bounded mountain ranges separated by alluvial filled valleys.

The property is located on the northeastern side of the Fish Creek Mountains. Elevation in the McCoy Mining District ranges from about 4,800 feet to 6,900 feet above sea level. The valley in the Helen deposit area is at approximately the 4,800 feet elevation and the area overlying the deposit has an elevation of approximately 5,500 feet.

Vegetation is typical of the high desert; greasewood characterizes the salt flats, sagebrush dominates the alluvial fans, and piñon and juniper are found on the mountain slopes. Rabbit brush, white sage, and mountain mahogany are also present (Figure 4-1).



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Accessibility, Climate, Local Resources, Infrastructure,

and Physiography

  Page 43 



Figure 4-1 McCoy-Cove Project Area Looking Southeast

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 44

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



5.  History

Gold was first discovered in the McCoy Mining District in 1914 by Joseph H. McCoy. Production through 1977 included approximately 10,000 ounces of gold plus minor amounts of silver, lead, and copper. Production in these early years came from placers and from gold-quartz veins that occurred in northeast striking faults and in intersections of northeast and northwest striking faults. Most of the non-placer production, however, came from argillized and oxidized skarn at what became the McCoy open pit mine.



  5.1.

Previous Owners

Summa Corporation (Summa), a Howard Hughes company, acquired most of the mining claims in the McCoy Mining District in the 1950s and 1960s. In 1977, Houston Oil and Minerals Corporation (Houston) purchased the McCoy-Cove Project. Gold Fields Mining Corporation (Gold Fields) leased the property in 1981 until September 1984, whereupon the property was returned to Tenneco Minerals Company (Tenneco), which had acquired Houston. Echo Bay Mines Ltd. (Echo Bay) purchased the precious metal holdings of Tenneco in October 1986. Newmont took ownership of the Cove and McCoy properties in February 2003 following the merger between TVX Gold Inc. (TVX), Echo Bay, and Kinross Gold Corporation (Kinross).

Victoria Gold Corp (Victoria) leased the property in June 2006 as previously described in Section 3. In June 2012, Premier entered into an agreement to acquire the lease of the McCoy-Cove Project from Victoria and subsequently acquired a 100% interest in the land package from Newmont in September 2014.



  5.2.

Historic Exploration

Modern exploration for copper and gold in the McCoy Mining District started in the 1960s by Bear Creek Mining Company and Pilot Exploration drilling in 1967. Summa conducted extensive exploration on the McCoy skarn deposit from 1969 to 1977. Summa also undertook regional geologic mapping of 55 square miles (including the McCoy-Cove Project area) and extensive rock chip surveys.

Houston explored the property in 1980, including geologic mapping, soil geochemical surveys, ground magnetic surveys, and drilling.

Gold Fields conducted an extensive induced polarization (IP) program, airborne magnetic surveys, detailed rock chip sampling, as well as limited geologic mapping and drilling between 1981 and 1984.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

History

  Page 45 



In 1985, Tenneco undertook drilling, metallurgical testing, engineering and feasibility studies and began mining the McCoy deposit in February 1986. Tenneco also began systematic district-wide exploration in 1985 with the collection of 500 stream sediment samples from an eight-square mile area around the McCoy deposit. Evidence of what would become the Cove deposit was found in early 1986, when seven samples yielded gold values of between 15 ppb and 72 ppb with associated anomalous Ag, As, Hg, Sb, and Ti. Subsequent detailed geologic mapping identified jasperoid, manganiferous limestone, and outcrops of altered felsic dikes in the area of the anomalous samples. Surface rock chip samples of these rocks all contained significant gold mineralization. Tenneco’s detailed mapping covered a large area that included both McCoy and Cove and extended to the north, west, and south. In September and October 1986, a total of 147 soil samples were collected from the B and C soil horizons over the altered area at Cove on a 100-foot by 200-foot grid.

Echo Bay continued the systematic district exploration program initiated by Tenneco that included stream sediment, soil, and rock chip sampling plus geologic mapping, exploration trenching using a bulldozer and drilling. Later soil sampling at Cove defined a gold anomaly measuring 2,800 feet long by 100 feet to 600 feet wide, with gold values ranging from 100 ppb to 2,600 ppb. Bulldozer trenching exposed ore grade rock over the entire length of this soil anomaly. Echo Bay discovered the Cove deposit with drilling in January 1987. By March 1987, Echo Bay had drilled 42 shallow exploration holes and development drilling began in late March. Echo Bay drilled 458 reverse circulation (RC) holes totaling 315,000 feet from January 1987 through June 1988 and 51 core holes totaling approximately 65,800 feet through 1989 (Briggs, 2001).

In 1999, Echo Bay drilled eight surface drill holes totaling 6,700 feet on the Cove South Deep deposit. This drilling, combined with bulk sampling from an underground exploration drift, confirmed the presence of a high-grade zone (0.25 opt Au) that could be mined by underground methods (Briggs, 2001). Detailed underground drilling of this deposit continued during 2000 as mining proceeded.

Newmont drilled 15 vertical holes on the property from 2004 to 2005. Victoria began exploring the property in 2006 resulting in the discovery of the Carlin-style Helen Zone immediately northwest of the Cove pit.



  5.3.

Historic Mining

The earliest known significant mining was in the early 1930s at the Gold Dome mine, previously located on northeast side of the present McCoy open pit mine. This operation included a 250-foot shaft and five levels of workings at 50-foot intervals producing gold grades ranging between 0.25 opt and 2.0 opt.





 Practical Mining LLC   March 26, 2025 


 Page 46

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 6-2 summarizes the annual production between 1986 and 2006 at the McCoy and Cove mines. Tenneco commenced mining at the McCoy open pit mine in 1986 and Echo Bay began open pit mining of the Cove deposit in 1988, accompanied by three phases of underground mining.

Underground access at the Cove Mine was via a decline with rubber-tire machines using a room and pillar mining method. From 1988 to 1993, underground mining was used to recover high grade ore ahead of the pit. In 1999, additional underground mining at Cove South Deep (CSD) recovered approximately 300,000 tons of mineralization beyond the ultimate pit limits. The mineralization was relatively flat lying from 10 feet to 80 feet thick. Longhole stoping and drift and fill methods were used with cemented rock fill (CRF).

Conventional open pit mining methods were utilized at Cove open pit, with drilling and blasting of ore on 20-foot benches (double benched to 40 feet) and waste on 30-foot benches (double benched to 60 feet). The lower sulfide orebody was reached in late 1991.

Processing of low grade, run-of-mine heap leach ores from Cove began in 1992 and mining of high-grade ores was completed in 1995. Open pit mining ended at Cove in October 2000.

In 1996, the mill facility was expanded from 7,500 stpd to 10,000 stpd, with milling of stockpiled ores from the Cove open pit beginning in the second half of 1997. Mill recoveries declined during the remaining life of the mine as lower grade, more refractory ores were processed. By October 2000, the mill was processing 11,369 stpd. As of that date, the gold grade was 0.055 opt Au and plant gold recovery was 51.8%; silver grade was 4.00 opt Ag and plant silver recovery was 71.5%.

The mill contained gravity, flotation, and cyanide leach circuits. Through 2006, a total of 3.41 million ounces of gold and 110.2 million ounces of silver were produced from Cove and McCoy, with the vast majority of both metals reportedly coming from the Cove deposit. Approximately 2.6 million ounces of gold were produced from the Cove open pit.

Table 5-2 Historic Cove and McCoy Mine Production 1986 through 2006

Mineralized Material Processed   Oxide   Sulfide   Heap Leach
Year

Milled

Oxide

Tons

(000)



Milled

Sulfide

Tons

(000)



Heap

Leach

Tons

(000)



Au

(opt)



Ag

(opt)



Au

(opt)



Ag

(opt)



Au

(opt)



Ag

(opt)



Au

Ounces

  Ag Ounces


1986

  -   -   1,851   -   -   -   -       34,035   na


1987

  -   -   4,292   -   -   -   -   0.04   -   90,788   56,800


1988

  -   -   2,994   -   -   -   -   0.053   1.14   104,009   764,116


1989

  1,358   -   5,696   0.107   3.21       0.02   0.44   214,566   2,259,653


1990

  2,004   201   5,709   0.084   0.82   0.227   6.17   0.021   0.2   255,044   1,982,455


1991

  2,094   364   5,174   0.077   1.7   0.194   8.42   0.02   0.69   284,327   5,619,007



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

History

  Page 47 



Mineralized Material Processed   Oxide   Sulfide   Heap Leach
Year

Milled

Oxide

Tons

(000)



Milled

Sulfide

Tons

(000)



Heap

Leach

Tons

(000)



Au

(opt)



Ag

(opt)



Au

(opt)



Ag

(opt)



Au

(opt)



Ag

(opt)



Au

Ounces

  Ag Ounces


1992

  1,483   990   9,029   0.075   2.54   0.163   7.57   0.014   0.6   301,512   7,921,496


1993

  2,308   552   8,938   0.107   4.61   0.136   4.65   0.017   0.88   395,608   12,454,338


1994

  506   2,304   7,892   0.126   6.71   0.143   4.91   0.013   0.48   359,360   10,443,151


1995

  497   2,151   4,355   0.15   5.42   0.104   5.23   0.018   0.49   310,016   11,905,806


1996

  -   3,287   6,068   -   -   0.086   3.14   0.018   0.27   271,731   7,102,348


1997

  -   3,391   6,494   -   -   0.061   4.54   0.018   0.29   187,034   11,021,708


1998

  -   4,306   4,112   -   -   0.046   2.95   0.021   0.26   167,494   9,412,823


1999

  -   4,452   4,178   -   -   0.038   3.02   0.022   0.37   124,536   8,430,072


2000

  -   4,172   1,809   -   -   0.053   3.71   0.024   0.93   162,784   12,328,297


2001

  -   -   -   -   -           94,633   6,451,425


2002

  -   -   -   -   -           33,142   1,987,421


2003

  -   -   -   -   -           4,699   706


2004

  -   -   -   -   -           8,454   64,335


2005

  -   -   -   -   -           2,740   776


2006

  -   -   -   -   -           2,939   596



Total

  10,250   26,170   78,591   0.10   2.93   0.08   3.98   0.02   0.48   3,409,451   110,207,329





 Practical Mining LLC   March 26, 2025 


 Page 48

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



6.  Geologic Setting, Mineralization and Deposit



  6.1.

Regional Geology

The McCoy-Cove Project is located in the central Nevada portion of the Basin and Range Province, which underwent regional extension during the Tertiary that created the present pattern of alternating largely fault bounded ranges separated by alluvial filled valleys (Figure 6-1). Prior to this extension, central Nevada had been the site of numerous tectonic events, including at least two periods of regional compression. The property lies west of the central part of the Battle Mountain-Eureka Trend.

During the Paleozoic, central Nevada was the site of the generally north-northeast trending continental margin of North America, along which pre-orogenic rocks of Cambrian to Early Mississippian age were deposited. A carbonate platform sequence was deposited to the east along the continental margin, with siliceous and volcanic rocks deposited to the west. In Late Devonian to Early Mississippian time during the Antler Orogeny, rocks of the western assemblage moved eastward along the Roberts Mountains thrust, perhaps as much as 90 miles over the eastern assemblage carbonate rocks. A post-orogenic assemblage of coarse clastic sedimentary rocks of Mississippian to Permian age was shed eastward from an emerging highland to the west, overlapping the two earlier facies.

During Pennsylvanian and Permian time, chert, pyroclastic rocks, shale, sandstone, conglomerate, and limestone of the Havallah sequence were deposited in a deep eugeosynclinal trough to the west of the Antler orogenic belt. These rocks were thrust eastward along the Golconda thrust over the Antler overlap assemblage in Late Permian and Early Triassic time during the Sonoma Orogeny. The Golconda thrust is exposed to the west of the Roberts Mountains thrust.

Mesozoic rocks, primarily shallow water siliciclastic and carbonate units with minor volcanic and volcaniclastic rocks, are found in this part of Nevada. At least three additional tectonic events are recorded in late Paleozoic and Mesozoic time, including the formation of the late Jurassic Luning-Fencemaker fold and thrust belt in western and central Nevada. The most recent events in the Great Basin are widespread Cenozoic volcanism and extensional faulting. Late Jurassic (168-143 Ma), Cretaceous (128-90 Ma), and Eocene to Oligocene (43-30 Ma) intrusions have been reported from this part of Nevada.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 49 



  6.2.

Local Geology

The stratigraphy of the McCoy Mining District is well documented and has been described in detail by Emmons and Eng (1995) and Johnston (2003). Generalized Triassic stratigraphy of the local area is presented in Figure 6-2 and the major lithological units are described below.

HAVALLAH FORMATION

The Permian Havallah Formation is the deepest drilled unit on the property and is composed of reddish-brown to green argillite and chert. Where it hosts veins, the Havallah displays alteration envelopes containing fine-grained quartz-illite/sericite. The total thickness of the Havallah across the property is unknown. Its contact with the overlying Dixie Valley Formation is sometimes demarcated by the presence of an unconformable rhyodacite tuff (assumed to be Koipato Formation), while in other areas of the property, it is simply defined by the change from coarse-grained clastic conglomerates and sedimentary breccias to argillite.

KOIPATO FORMATION

Locally, at the contact between the Dixie Valley Formation and the Havallah, there is a maroon rhyodacite tuff assumed to be part of the Permo-Triassic Koipato sequence described by Silberling and Roberts (1962). The upper and lower contacts of this rhyodacite tuff are unconformities.

DIXIE VALLEY FORMATION

The early Middle Triassic Dixie Valley Formation consists primarily of coarse-grained conglomerates and intercalated dolomitic sandstones, as well as lesser fossiliferous limestone units generally restricted to the upper portion of the formation.

FAVRET FORMATION

The late Middle Triassic Favret Formation, approximately 750 feet thick, consists of an upper fossiliferous limestone unit containing ammonites and pelecypods, a middle unit of finely interbedded silty limestones and limestones (principal Carlin-style ore host), and a basal unit of debris flow fossil hash containing ammonites, pelecypods, and star-shaped crinoids.

AUGUSTA MOUNTAIN FORMATION – HOME STATION MEMBER

The late Middle Triassic Home Station Member is 100 feet to 150 feet thick and was previously described as a thicker unit consisting of massive calcareous and dolomitic limestone with lenses or beds of sandstone and conglomerate (Kuyper et al., 1991). Johnston (2003) however, classified this unit as silty dolostones based on exposures in the Cove open pit which displayed medium to





 Practical Mining LLC   March 26, 2025 


 Page 50

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



dark grey, very thickly bedded (greater than 3 feet) dolostone consisting of three to 25 volume percent quartz grains (averaging 0.0016 in. diameter) in a recrystallized dolomite matrix. The clastic components of Kuyper et al.’s (1991) Home Station are now classified as Panther Canyon and the lower limestone is now considered the upper part of the Favret Formation. Although the contact between the Home Station Member and the overlying Panther Canyon Member was described as gradational by Kupyer et al. (1991), Johnston (2003) mapped the contact in the Cove open pit as sharp, and Premier and i-80 geologists use a prominent lag gravel deposit (generally less than 15 feet to 20 feet thick) to mark this contact.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 51 



Figure 6-1 Regional Geology

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 52

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 6-2 Triassic Stratigraphy and Mineralization

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 53 



AUGUSTA MOUNTAIN FORMATION – PANTHER CANYON MEMBER

The Panther Canyon Member at Cove is divided into two informal units, the lower Dolostone Sub member and upper Transitional Sub member. The lower Dolostone Sub member unit is generally 140 feet to 165 feet thick and consists of a 20-30 foot thick gray chert pebble conglomerate at the base that transitions to a dark gray dolostone with local thin bedding and then to a well bedded, pink, white, and beige silty dolostone with common stromatolitic textures. Individual beds are typically less than three feet in thickness. The contact with the overlying Transitional Sub member is very gradational over a distance of approximately 10 feet, but is picked in geochemistry where magnesium percentage becomes less than 4%. The upper Transitional Sub member is a 500 feet thick unit which coarsens upward, from a basal primary maroon and dark gray sandstone with common liesegang banding, through middle carbonate cemented silt- and red bed sandstones, to conglomerate near the top. The general transition is not smooth, however, as contrasting lithologies are interspersed throughout the unit at all levels, typically as lensoid bodies. This Transitional Sub member can be further separated into a lower carbonate rich and an upper clastic section as follows:





Lithologies in the 140-165 feet thick lower carbonate rich section are highly variable. Although the strata are primarily made up of dolostone, lenses, and beds of carbonate cemented siltstone and very fine-grained sandstone, coarser sandstone and conglomerate are abundant. The lower 80 feet of this section consists principally of massive dolostone. Typical strata in the upper 80 feet of this section consist of 0.001 in. to 0.003 in. diameter, subrounded, moderately sorted quartz grains. Individual beds are typically less than 3.3 feet in thickness. The diagenetic cement is calcite, but it has been dissolved and/or replaced by illite-sericite where hydrothermally altered.



The 300 feet thick upper clastic section in the Transitional Submember generally consists of fine-grained sandstone to cobble conglomerate. The thickness of bedding is highly variable, but the conglomerate beds are generally thicker (up to 16 feet thick) than the sandstone beds (up to 3.3 feet thick). Crossbedding is common, and conglomeratic strata typically grade upwards from relatively coarse to relatively fine grained sediments. Detrital grains and cobbles consist of chert, quartzite, and quartz. These grains are rounded to subrounded and moderately sorted. Primary porosity, which was originally high, ranges up to 20 volume percent as observed by Johnston (2003). The contact with the overlying Smelser Pass Member is sharp to gradational over several tens of feet.

AUGUSTA MOUNTAIN FORMATION – SMELSER PASS MEMBER





 Practical Mining LLC   March 26, 2025 


 Page 54

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The Smelser Pass Member unit is volumetrically the largest at Cove with a maximum thickness of just over 900 feet. The unit is predominantly a microcrystalline limestone with abundant recrystallized bioclasts, however, the upper 500 feet contain very minor thin interlaminated calcareous shale beds. The limestone is thick bedded to massive, with individual beds ranging from three feet to 16 feet in thickness. Macro allochemical remains consist of partial to complete brachiopods, pelecypods, gastropods, crinoids, corals, sponges, and ammonites, in decreasing order of abundance. The lowermost beds contain up to 15 volume percent of 0.0006 in. diameter quartz grains.

The Smelser Pass Member is separated from the overlying Oligocene tuffaceous sediments and Tuff of Cove Mine by an angular unconformity. Kuyper et al. (1991) determined that the upper 575 feet of the Smelser Pass were removed by erosion prior to deposition of the Oligocene units. More than 2,100 feet of the Triassic Cane Spring and Osobb Formations, which overlie the Smelser Pass Member elsewhere in the McCoy Mining District, are also missing at Cove. Much of the Smelser Pass Member has been subjected to supergene oxidation, giving the originally medium grey limestone an orange to brown appearance.

TUFF OF COVE MINE

The tuff of Cove Mine, previously thought to be the 33.8 Ma Caetano Tuff, has a maximum thickness of approximately 1,500 feet in the deepest parts of the paleovalley it filled. It consists of 0.016 in. to 0.276 in. long fragments of plagioclase, biotite, potassium-feldspar, and resorbed quartz phenocrysts in a glassy to devitrified matrix. Phenocrysts comprise 40 volume percent and matrix 60 volume percent of the rock. John et al. (2008) reported a 40Ar/39Ar age of approximately 34.2 Ma on a set of samples including some collected in the northern Fish Creek Mountains.

INTRUSIVE IGNEOUS ROCKS

Abundant dikes and sills are encountered in drilling at Cove, and historic convention at the property has been to classify them as either “felsic” or “mafic.” The majority are “felsic” and can be mapped at surface associated with and occupying the main faults extending from the Eocene Brown stock at McCoy. Though commonly altered, their textural similarities to the unaltered granodioritic feldspar porphyry of the Brown Stock suggest that they were of similar composition. These dikes are light grey to white in colour due to sericitic or argillic alteration. Their porphyritic texture is preserved. They may be observed over drill hole intercepts ranging in length from less than 0.5 to 215 vertical feet and are usually steeply dipping. Less altered samples collected from the Cove open pit retain evidence for secondary biotite replacing hornblende suggesting a weak potassic alteration event that has been overprinted by lower temperature alteration events at depth.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 55 



The Gold Dome is the most prominent “felsic” dike at the deposit and is cross-cut by both polymetallic veins and pervasively altered by weak Carlin-style mineralization.

As a result of the intense alteration, many occurrences of rocks of different composition have been incorrectly logged as “felsic.” Multi-element geochemistry was used in 2016 to reclassify all igneous rocks by filtering for high occurrences of Cr, Ni, and V. When the reclassified lithologies were remodelled in 3D it became apparent that the mafic intrusive rocks are present as thin, laterally extensive, stacked sills that terminate down the northeast limb of the Cove anticline. As a result of that exercise, two distinct trends were discovered in the Ni and V concentrations of these mafic dikes and sills. Whole rock geochemistry and subsequent remodelling confirms the presence of three distinct mafic compositions and this detailed discrimination has been continued with more recent drilling. The mafic intrusions are classified as “Type 1” characterized by high V and lower Ni, “Type 2” characterized by low V and higher Ni, and “Type 3” characterized by strongly elevated Ce, La, and Th with elevated Ni and V. Type 1 in drill core is typically dark green in color, contains abundant calcite filling vesicles, and may be magnetic. Though the Type 1 sills have a strong spatial association to Carlin-style mineralization across the deposit, they are rarely mineralized and can be devoid of As, Au, and Ag in direct contact with mineralized limestone. Typically, the Type 1 intrusions show pervasive propylitic alteration with very occasional weak argillic alteration. The Type 2 and 3 intrusions are generally light green to white in color and can be difficult to distinguish from similarly altered “felsic” dikes. They appear to have been hornblende-biotite porphyries prior to alteration and commonly contain magnetite. They also share a spatial association to Carlin-style mineralization but, unlike Type 1 sills, are very commonly mineralized (up to 20 ppm Au, 20 ppm Ag) and strongly argillically altered. Type 2 and 3 intrusions are less prevalent overall than Type 1 sills. Type 2 and 3 intrusions are generally restricted to filling a northwest striking fault corridor that marks the southern boundary of both the Gap and Helen zones.

QUATERNARY ALLUVIUM

Emmons and Eng (1995) divided the Quaternary surficial units in the McCoy Mining District into alluvium, talus, and colluvium. Quaternary sediments exposed in the Cove open pit were not differentiated in this study. These sediments include unconsolidated sand and gravel, and are less than 215 feet thick.



  6.3.

Structural Geology

Deposits on the McCoy-Cove Project are related to specific structural features.

MAJOR DEFINING STRUCTURES





 Practical Mining LLC   March 26, 2025 


 Page 56

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The major structure and control on fluid movement is the broad northwest-striking, gently southeast-plunging Cove anticline interpreted as a fault propagation fold over a deep northwest striking reverse fault identified in deep drill holes under the Cove pit. While the reverse fault can be identified in the 2201 zone, its presence at the Gap and Helen Zones is uncertain due to limited drilling in areas that would confirm its continuation. A northwest striking vertical dike called the Northwester Dike (classified as “type 2 and 3”) extends from the Bay fault through the Gap and into the Helen. It appears to prohibit the flow of mineralizing fluids to the southwest in areas between the major northeast striking faults. Though there is no discernible separation on the dike, it may be related to a near vertical to steeply southwest dipping fault mapped in the pit by Echo Bay geologists called the Northwester fault.

The other major structures for fluid movement and mineralization are a number of northeast striking normal faults (Cay, Blasthole, Bay, 110, and Gold Dome). The northeast striking faults commonly host altered granodioritic dikes, the largest of which is the Gold Dome. The north-south striking Lighthouse fault also contains altered granodioritic dikes and is believed to have had both pre- and post-mineralization movement.

These faults and structures were defined and confirmed by:





Surficial and open pit geologic mapping by Echo Bay, Victoria, and Premier;





Offset observed during detailed cross section work by Premier in 2016; and





Oriented core measurements by Victoria and Premier, especially in the Helen and Gap.



  6.4.

Mineralization Controls

Carlin-style mineralization appears to be controlled by a combination of the axis of the Cove anticline, normal faults that cut the anticline, mafic sills and dikes throughout the property, and contacts between different sedimentary units. Generally, the highest grades are found where the rhythmically bedded unit of the Favret Limestone is cut by mafic dikes and sills along the axis of the anticline, and especially where this area is cut by apparent small-scale, unmapped faults. Lower-grade (0.05 opt to 0.25 opt Au) Carlin-style mineralization in the Helen and Gap zones is typically found along the Favret-Home Station contact and the contact between the Panther Canyon’s upper conglomerate unit and lower dolomite unit.

The northeast striking faults commonly contain quartz-sericite-pyrite and argillic altered granodioritic dikes that carry low to anomalous values of Au and Ag. Carlin-style mineralization in the Favret and other units is typically bounded by these northeast structures with higher grades focused in the axis of the anticline and lower grades with associated pathfinder elements (As, Sb,



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 57 



Tl, Hg, etc.) typically along the margins of the anticline as well as immediately adjacent to these major structures.

In the 2201 zone, structural controls are poorly defined, however, vein-bearing Au occurrences do trend northwest and may be related to structures formed in the hanging wall of the deep-seated reverse fault or to the near vertical to steeply southwest dipping Northwester fault.



  6.5.

Post Mineral Faulting

There is at least one instance of significant post-mineral faulting. The Striper Splay is believed to be a splay off of the Lighthouse fault which is known to have both pre- and post-mineralization movement. It dips steeply northeast and strikes approximately 320° along the northeast limb of the Cove anticline causing significant post-mineral normal displacement before terminating against the Bay/110 fault complex. The overlying volcanics are not significantly faulted, as defined by holes NW-1, NW-2 & 2A, and NW-3. It is likely there is minor post-mineral movement on all northeast and north striking faults as a result of Basin and Range extension beginning the Miocene and continuing through present day.



  6.6.

Mineralization

There are four distinct mineralization types known on the property: Carlin-style, polymetallic sheeted veins, carbonate replacement (Manto) and skarn. The Helen, Gap and CSD deposits are Carlin-style deposits while the 2201 zone is comprised of steeply dipping polymetallic sheeted veins.

CARLIN-STYLE (AU-AG)

The gold in Carlin-style deposits is usually sub-micron in size and generally occurs in pyrite and arsenical pyrite. An envelope characterized by decalcification, silicification, and argillization accompanied by anomalous amounts of silver, arsenic, antimony, thallium, and mercury often accompanies mineralization. The Carlin-style mineralization at Cove is relatively rich in silver compared to similar deposits elsewhere in northern Nevada (Johnston, 2003). When Carlin-style mineralization occurs in the silty limestones and packstones of the Favret Formation and Home Station Dolomite, decarbonatization replaces fine-grained calcite and/or dolomite with quartz and forms very fine-grained illite and pyrite. Diagenetic pyrite was probably present in the Helen Zone before Carlin-style mineralization based on the abundant presence of subhedral pyrite grains that bear no arsenian rims. The arsenic-bearing pyrite precipitated as a product of Carlin-style mineralization in the Helen are fine-grained (~10 microns) patchy, anhedral “fuzzy” pyrite generally smaller than the diagenetic pyrite grains. In the CSD zone, most pyrite grains in





 Practical Mining LLC   March 26, 2025 


 Page 58

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



high-grade samples are larger (~20 microns), display spectacular, sharp geochemical zonations, and are rimmed with arsenian pyrite or stoichiometric arsenopyrite. The few samples studied from the Gap under the SEM suggest it shares more in common with the CSD zone though its silver content is lower overall.

POLYMETALLIC SHEETED VEINS (AU-AG±PB-ZN)

The polymetallic veins in the 2201 zone are enveloped by a zone of illitization of the conglomerate matrix detected by sodium cobaltinitrite staining and confirmed by scanning electron microscope (SEM) analysis. Minor silicification is relatively common, especially in the conglomerate, however, it is not present everywhere and not always directly associated with mineralization.

CARBONATE REPLACEMENT (AG-PB-ZN±AU)

Carbonate replacement mineralization occurs as local pods of manto-style mineralization characterized by massive sulfide (pyrite-sphalerite-galena) replacing basal limestone at the Dixie Valley/Favret contact. Mineralization is discontinuous and generally defined by high-grade Ag-Zn-Pb±Au.

SKARN (AU-AG±CU)

Skarn mineralization at the historic McCoy pit occurs as both endoskarn and exoskarn mineralization characterized by a predominantly garnet-diopside-magnetite mineral assemblage.

The Carlin-style mineralization across the deposit appears to represent an evolving system from a “primary” endmember represented by the CSD zone with higher Ag/Au, coarser-grained pyrite, and a close proximal relationship to Ag-Pb-Zn-(Au) mineralization to the “evolved” endmember represented by the Helen Zone with lower Ag/Au, very fine-grained pyrite, and weak spatial association with any other styles of mineralization. The Gap can be considered a “transition” zone between the two endmembers until more petrography is conducted on the recently discovered Gap to test this hypothesis. Helen Zone geochemistry is distinct from the CSD zone in many ways. For samples greater than 1 ppm Au, less than or equal to 100 ppm Ag, and confirmed to be Carlin-style mineralization by core photo review, the Helen Zone has an average Ag/Au ratio of approximately 0.85 whereas the CSD zone is 2.25. Gold in both the Helen and CSD zones correlates with As, Sb, and Hg, however, Au correlates moderately (0.52 correlation coefficient) with Ag in the CSD zone but more weakly (0.3652 correlation coefficient) in the Helen Zone.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Geologic Setting, Mineralization and Deposit

  Page 59 



Like the geochemistry, the mineralization in the Helen and CSD is also distinct. The As-bearing (assumed to also be Au-bearing) pyrite in the Helen are generally finer-grained, less euhedral, and more poorly zoned than the As-bearing CSD zone pyrite. Helen pyrite overall have lower As content – ranging from just at detection limit (~0.3 wt% to 0.5 wt%) to 2.1 wt% – than the CSD zone which contains pyrite with arsenic contents ranging from detection limit to 6 wt%. The SEM-EDS system first detected trace elements such as Te, Tl, Hg, Sb, and even Au and Ag in CSD zone pyrite, while electron microprobe analysis confirmed the presence of Au, Ag, As, Tl, Hg, Sb, and Pb in CSD mineralization. Other pyrite in the CSD zone contain fewer trace elements but still display complex elemental zoning and growth patterns visible only in backscatter electron imaging. The complicated nature of the mineralized pyrite at the CSD zone is suggestive of a more complex and long-lasting mineralizing event in comparison to the seemingly simple Helen mineralization.

In the 2201 zone, Au correlates with Ag, As, Cu, Fe, Pb, Sb, and Zn – a distinctly different grouping of elements from the CSD, Gap, and Helen Zones. The 2201 zone veins typically occur as sheeted veins and range in thickness from 0.1 cm to 6.5 cm and contain both quartz and carbonate minerals as gangue. Generally, the calcite and dolomite-dominant veins are shallower and thinner whereas the quartz (-carbonate)-bearing veins are deeper and can reach widths of 15 cm. The sulfides are mostly pyrite, sphalerite, and galena with arsenopyrite, chalcopyrite, and pyrrhotite also locally present. Visible gold is mostly limited to the thicker veins and is always observed along the margins with coarse-grained quartz. When microscopic, the gold is present as electrum with approximately 15 wt% Ag (measured on SEM-EDS) and hosted within sulfides such as chalcopyrite or arsenopyrite. Galena may also carry up to 10 wt% Ag. An oriented hole drilled in 2014 (PG14-23) provided some structural data for the vein-type mineralization. There were no trends for veins grouped by gangue or thickness, however, when grouped by depth, the data show that veins shallower than 1,750 feet generally strike northeast-southwest with varying dips and veins deeper than 1,900 feet generally strike northwest-southeast and dip steeply in both directions.





 Practical Mining LLC   March 26, 2025 


 Page 60

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  6.7.

Deposit Types

Mineralization at McCoy-Cove consists of two mineralization styles, Carlin-style and polymetallic sheeted veins, as outlined in Section 6 of the report. The Carlin-style mineralization within the Helen, Gap, and CSD zones comprises approximately 85% of the existing resource with high gold and silver grades occurring as both stratabound and structurally controlled mineralization at the intersection of the Cove anticline and favorable lithologic beds, structures, intrusive dikes and sills.

The polymetallic 2201 zone is a separate deposit from the shallower Carlin-style mineralization and is believed to be a structurally controlled sheeted vein system. Veining is oriented northwest, with vein geometry being controlled by a deeper northwest striking reverse fault. Due to its depth, the 2201 zone has seen limited drilling since its original discovery in late 2013, however, additional infill and step-out drilling in the future will help to better define deposit potential and mineralization controls.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 61 



7. Exploration



  7.1.

Geologic

McCoy-Cove is a large property with advanced-stage deposits as well as numerous sparsely tested prospective areas. Historical exploration from the 1960’s to 2012 included stream sediment (silt) sampling, soil sampling, rock chip sampling, geophysical surveys, and geologic mapping. Since acquiring the property in 2012 through mid-2018 when the mineral resource estimate was completed, Premier carried out soil sampling, field mapping, geophysics and drilling projects. Highlights of Premier’s exploration through mid-2018 included the discovery of the 2201 and CSD Gap zones as well as the re-interpretation of the litho-structural model, which resulted in expansion and improved continuity throughout the Cove-Helen zone. The updated litho-structural model has helped guide property-wide target generation.

Numerous exploration targets have been identified within the McCoy-Cove land package. All targets are thought to be Carlin-style and/or polymetallic 2201-style mineralization. Since mid-2018, exploration efforts have focused on eight areas: Windy Point, Antenna, Alpha, Davenport, Lakeside, Saddle, Reflection, and Hidden Valley (Figure 7-1).





 Practical Mining LLC   March 26, 2025 


 Page 62

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 

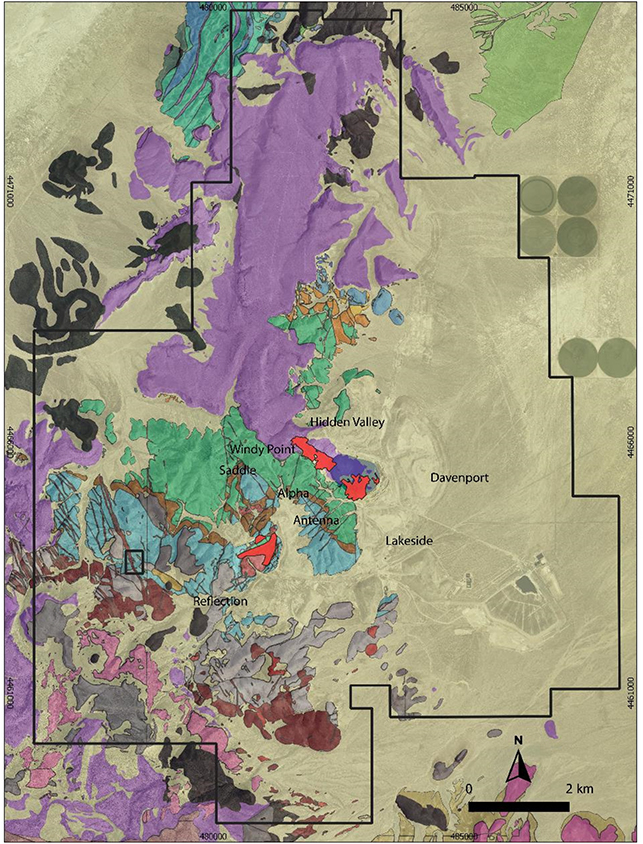

Figure 7-1 Exploration Targets

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 63 



The Windy Point area contains significant surface alteration that includes decarbonatization and silicification. Surface samples have returned >1.2 opt Au, with silver and base metals largely absent. The Cove anticline continues through Windy Point. Here, the anticline has an east-west orientation rather than northwest-southeast as in the Cove pit. Granodiorite dikes and mafic sills are present both at the surface and in drill core. Several drill holes have intersected >300 ft intervals of <0.06 opt Au with isolated intervals of >0.2opt Au.

The area between the McCoy and Cove pits is referred to as the Antenna target. Eocene granodiorite dikes extend from the Brown stock northward through Antenna and into the Cove pit. Geochemically anomalous surface rock-chip samples of sedimentary rocks generally coincide spatially with granodiorite dikes at Antenna. Drilling has intersected multiple >0.15 opt Au intervals displaying both Carlin-style and polymetallic mineralization.

The Alpha target is located 1 km south of Windy Point. Surface rock-chip samples have returned >3 opt Au from jasperoid. Intrusive sills outcrop at surface with jasperoid occurring in proximity to the sills. In 2019, one deep hole was drilled into Alpha, intersecting weakly anomalous Carlin-style geochemistry and alteration.

Davenport and Lakeside are both pediment targets that lack substantial drilling. Most drilling in these areas consist of shallow condemnation holes drilled by Echo Bay. A large magnetic high is present at Davenport and was drill tested in 2020. Results indicate the magnetic high is a large granodiorite sill. Mesozoic sedimentary rocks are present beneath the granodiorite. Two deep holes drilled at Davenport in 2020 intersected long intervals of geochemically anomalous Carlin-style altered rock. In addition, one hole intersected polymetallic 2201-style mineralization in the Dixie Valley formation. The pediment remains a large, underexplored area on the property capable of containing a large Carlin-style ore body.

The Saddle target is located 0.3 mi. south of the western margin of Windy Point. This target lies along the north striking Saddle fault at the intersection with northwest striking faults. A historic drill hole intersected 60 feet of 0.2 opt Au in the Panther Canyon formation. The drill hole was ended before reaching the favorable Home Station dolomite and Favret limestone units. Future exploration work should include twinning the historic hole and drilling deeper to intersect the underlying favorable stratigraphic units.

The Reflection target is located southwest of the McCoy pit. At Reflection, northeast striking granodiorite dikes extend from the Brown stock where they intersect the margin of the Jurassic McCoy Pluton, a north striking anticline, and the large north striking Saddle fault. In addition, a string of jasperoid outcrops extend northwest along the McCoy Pluton margin in the target area. A single hole tested favorable stratigraphic horizons in the target area in 2022 without any significant intercepts of mineralization or alteration. Metasomatic iron skarns are present along the





 Practical Mining LLC   March 26, 2025 


 Page 64

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



margins of the McCoy Pluton and have been mined historically. Iron-bearing minerals may be present in the sedimentary rocks near the margin of the McCoy Pluton representing a compelling target in non-traditional host rocks given sulfidation is the primary mode of gold deposition for Carlin-style fluids.

The Hidden Valley target is located north of the Helen and Gap zones where a northwest striking anticline is mapped at surface. The anticline appears to be a much tighter fold than the Cove anticline and may be a parasitic fold to the Cove anticline. Drilling at Hidden Valley should target the axis of the anticline in the Favret limestone near the intersection with northeast striking granodiorite dikes.

In January 2018, Premier and Barrick entered into the Barrick Earn-In Agreement which included a significant exploration budget commitment from Barrick to be spent on the McCoy-Cove property. Exploration on the Joint Venture Property began in mid-2018 and continued until Barrick exercised its right to terminate the agreement on February 6, 2020. Work completed by Barrick included detailed surface mapping, soil sampling, gravity survey, and drilling. Barrick drilled 30 holes and Premier has drilled 16 holes since mid-2018. None of the new holes intersect the modelled resource area. Eight of Premier’s holes were drilled for piezometer installations. (Figure 7-2)

Figure 7-2 Barrick and Premier Exploration Drilling

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 65 



Underground mine development commenced in 2022 and roughly 4,900’ of development was completed down to the 4640 elevation to provide platforms for infill drilling. A roughly 140,000 foot resource conversion drill program was ongoing at the time of this report. Further mine development will provide platforms for exploration drilling, including access to the difficult-to-reach prospective Gap Extension target under the Cove pit (Figure 7-3).

Figure 7-3 Underground Exploration Potential

LOGO



  7.1.1.

Resource Conversion Drilling

All drilling since January 2023 has been conducted from recently mined underground drill platforms for resource conversion of the Helen and Gap zones. The drill project is ongoing and is not included in the resource. The resource will be updated to include the resource conversion holes when the drill project is complete, projected for Q1 2025. The project includes about 125 drillholes totaling 140,000 feet of drilling.





 Practical Mining LLC   March 26, 2025 


 Page 66

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 7-4 Resource Conversion Drill Program

LOGO



  7.1.2.

Drilling

The McCoy-Cove drill hole database is large, containing many holes drilled across the large land package. For the current resource estimate, the drill data was filtered to contain only holes within and near the Helen, CSD, CSD-Gap, Gap Hybrid and 2201 Zones. A total of 1,397 holes totaling 1,127,481 feet of drilling were included in the current estimate. Holes were drilled using both core and reverse circulation (RC) methods. Premier drilled 123 of the holes, and the remainder were drilled by Victoria, Newmont and Echo Bay. Figure 7-5 shows a plan view of the drill holes, and Table 7-1 lists the type and extent of drilling completed by each operator.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 67 

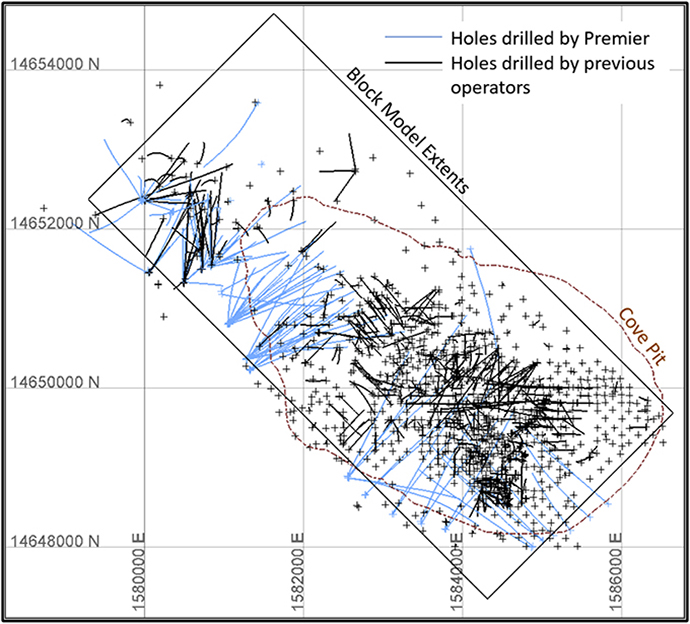

Figure 7-5 Plan View of Drill Holes Used for the Current Analysis



LOGO

Table 7-1 List of Drilling by Operator


Year    Drill Hole Type    Operator    Number
of Holes


 Length 

Drilled

(ft)


1985-2000    Reverse Circulation    Echo Bay    788    520,194

1999-2000    Cubex (RC)    Echo Bay    201    22,829

1987-2000    Diamond Drill    Echo Bay    251    216,059

2004-2005    Reverse Circulation    Newmont    13    22,080

2006-2009    Diamond Drill    Victoria    21    47,118





 Practical Mining LLC   March 26, 2025 


 Page 68

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Year    Drill Hole Type    Operator    Number
of Holes


 Length 

Drilled

(ft)


2013-2017    Reverse Circulation    Premier    8    14,340

2012-2018    Diamond Drill    Premier    115    284,862

Total              1,397    1,127,481

Figure 7-6 through Figure 7-9 show 100-foot thick sample sections of drilling in the CSD-Gap, Helen, CSD and 2201 zones. Holes drilled by Premier are labeled and shown with thicker traces. Models of lithologic surfaces and 3-gram grade polygons are shown for reference.

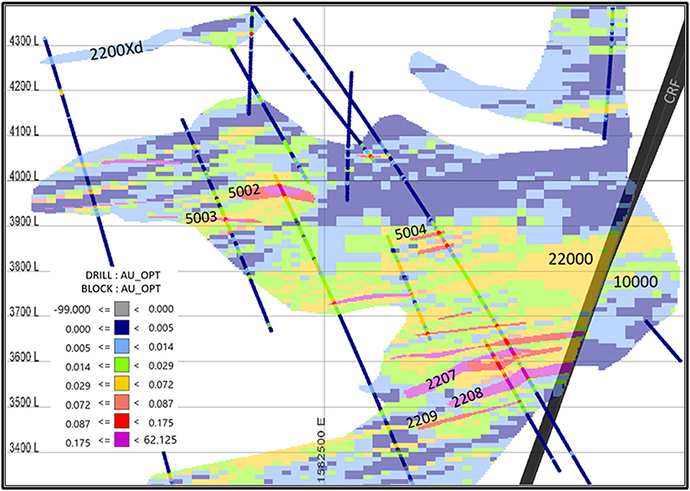

Figure 7-6 Sample Section of CSD-Gap and Gap Hybrid Drilling



LOGO







 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 69 



Figure 7-7 Sample Section of Helen Zone Drilling



LOGO





 Practical Mining LLC   March 26, 2025 


 Page 70

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 7-8 Sample Section of CSD Zone Drilling



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 71 

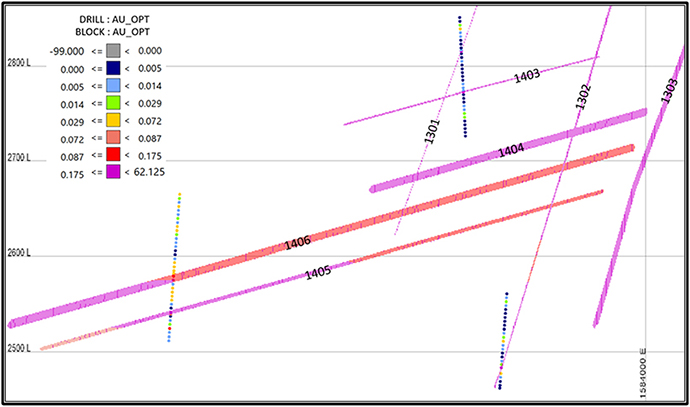

Figure 7-9 Sample Section of 2201 Zone Drilling



LOGO

Recent drill projects have predominantly been completed by coring, while RC drilling was used extensively to delineate historic pit and underground resources. Accordingly, the recently discovered Helen, 2201 and CSD-Gap zones were modeled almost exclusively using core holes, while the pit-proximal CSD Zone and low-grade lenses were modeled using a mix of RC and core. Table 7-2 details the proportion of core drilling used to model each zone. The authors have carefully reviewed the data and consider both core and RC data to be reliable.

Table 7-2 Type of Drilling by Zone


Zone    

 Mineral Lens 

Codes



 Number 

of Holes



RC

 Composites 



Core

 Composites 



Total

 Composites 

     % Core


CSD Gap

   220X      27        0        327        327        100


GAP Hybrid

   500X      27        1        132        133        99


CSD

   110X      269        1,276        699        1,975        35


Helen

   310X, 320X,
330X, 340X
     65        23        871        894        97


2201

   130X, 140X      8        0        53        53         100





 Practical Mining LLC   March 26, 2025 


 Page 72

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Zone    

 Mineral Lens 

Codes



 Number 

of Holes



RC

 Composites 



Core

 Composites 



Total

 Composites 

     % Core


Low Grade CSD, Gap and Gap Hybrid

   22000      157        3,897        6,153        10,050        61



  7.1.3.

Historic Drilling Methodology

Evan et al., (2011) described drilling protocols for Victoria:

“Victoria diamond drill holes NW-01 to NW-09, inclusive, were spotted by hand-held GPS. This included collar, foresight and backsight. Drill holes NW-10 to NW-15, inclusive, were surveyed by All Points North, registered Nevada Land Surveyors. A Brunton compass was used to set the drill head.

“All diamond drill holes were proposed and collared based on the property grid, which was referenced in a historical digital terrain map (DTM) created prior to full scale mining and reclamation.” (page 74)

“All Victoria diamond drilling was completed from surface retrieving whole core. The holes were collared HQ size and reduced down to NQ size dependent upon ground or drilling conditions. Drill muds were utilized to ensure consistent core recovery.” (pg. 71)

“Victoria downhole surveys were completed using a North Seeking Gyro (NSG) by Major Technical Services and International Directional Services. NSGs eliminated the need for sighting on surface (gyro-compass alignment) and offered high accuracy. Generally, NSG surveys were performed twice, once at mid-hole and again at hole completion. Readings of dip and azimuth were taken at nominal 50 ft intervals.

“RPA notes that no directional tests were taken during regular drilling operations. Holes NW-02 and NW-09A were unable to be downhole surveyed as the holes had to be abandoned due to poor ground conditions.” (Page 74)

Formal records of Newmont and Echo Bay drill procedures have not been located, but methods are assumed to have followed industry standard.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 73 



  7.1.4.

Current Drilling Methodology



  7.1.4.1.

Drill Hole Placement

Initial surface collar locations are based on drill plan targeting – collar locations are marked in the field by a geologist using a handheld global positioning system (GPS) device loaded with coordinates from drill plans in either Gemcom or MapInfo project files. A wooden collar picket is marked with both the azimuth and dip designations. The azimuth is also painted in a line on the ground directly in-line with the collar picket allowing the drill rig to line up on the correct bearing from the collar location. The geologist re-confirms both azimuth and dip once the rig is lined up on the drill pad using a Brunton compass. After drilling is complete, holes are abandoned and marked with a metal tag cemented into the collar. A final collar location survey is performed by a professional contract surveyor. The project uses UTM NAD83 Zone 11N international feet coordinate system.



  7.1.4.2.

Downhole Surveys

International Directional Services (IDS) of Elko performs downhole surveys on all drill holes. Holes are surveyed on 50-foot intervals using a north-seeking gyroscopic downhole survey tool.



  7.1.4.3.

RC Drilling Procedures

Holes are drilled using industry standard RC drilling equipment. Samples are collected on five-foot intervals using a cyclone sample collector. The sample interval is written on the sample bag using permanent marker. Drilling advances are paused at the end of each sample run to ensure the complete sample has been collected and avoid contamination of the following sample. The optimum sample size collected is approximately one quarter to one half of a 17-inch by 22-inch sample bag (about 4.5 to 9 kg or 10-20 pounds.)



  7.1.4.4.

Core Drilling Procedures

Core holes are drilled using HQ (about 3-inch diameter) core. Holes may be reduced to NQ (about 2.4-inch diameter) to permit continuation of a hole in difficult drill conditions. Premier has used both standard and triple-tube tooling. Triple-tube is preferable in broken ground because it facilitates placement of core into the core box, allowing the sample to remain more intact. Drilled material is placed in wax-impregnated core boxes. Drillers label the end of the core run to the nearest half of a foot, and measure and record the recovery in feet on wooden blocks, which are placed in the core box at the end of each drilled interval. Core boxes are labeled with company





 Practical Mining LLC   March 26, 2025 


 Page 74

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



name, property, bore hole identifying number (BHID), box number and drilled interval. The authors believe the drilling procedures are adequate.



  7.1.5.

Sampling Methodology

Boxed core is transported by i-80 personnel from Cove to the Lone Tree core storage yard adjacent to the logging facility. When a geologist is ready to log the hole, a geotechnician moves the core inside the logging facility, places it on logging tables and washes off any drill mud. A geologist records detailed geology data directly into acQuire software. Data fields include geotechnical, sampling intervals, lithology, alteration, oxide, sulfide, structure, point data, veins and density.

Sample intervals are chosen by the geologist based on detailed geologic observations. Sample intervals may range from ten feet to a minimum of one foot, with a maximum of five feet in areas of interest. The geologist marks sample intervals on the core and staples a sample ticket double-stub in the core box at the end of the sample interval. Sample IDs are automatically generated in acQuire, with a prefix that designates the project. Sample tickets are then printed out with sample IDs. Logged core boxes are photographed with a high-resolution camera while wet and then stacked on a wooden pallet prior to being moved to the sample cutting area.

The geologist prints a cut-sheet from acQuire software with the sample numbers and intervals and gives the cut-sheet to the geotechnician. The geotechnician places a sample bag in a five-gallon plastic bucket on the floor next to the core saw. The core is sawed in half, the left piece is placed into the sample bag, and the right piece goes back into the core box. In the case of broken core, the sampler does their best to divide the sample equally. Once the interval is split, the geotechnician takes one part of the double sample stub from the core box and staples it to the sample bag. The remaining sample stub remains in the core box for future reference. The geotechnician then ties the sample bag shut and marks the sample off the cut-sheet. The tied sample bags are stored in a sample bin for the lab driver to pick up.

The geologist assigns QAQC samples while logging targeting 5% blanks, 5% standards, and 2.5% field duplicates. The geologist attempts to place blanks after high-grade samples where available. The geologist also attempts to place standards proximal to mineralized zones with standard gold values approximately that of the mineralized zone gold values. However, since the gold value of the rock cannot be known prior to assay, the standard value may not always compare well to the mineralized zone. The geotechnician places the blanks and duplicates with their sample tags in the sample bin with the regular core samples. The standards are placed in a small sample bag with the corresponding sample ID. The standards corresponding to a single hole are then placed in a larger bag prior to shipment to the assay lab.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 75 



The geologist completes a sample submittal sheet. The assay lab driver picks up the samples from the Lone Tree core shed and is given a chain of custody form with sample ID’s for the shipment. An electronic copy of the sample submittal form is emailed to the assay lab.

Drill hole status, such as splitting, sample dispatch date, batch ID, and dates of both preliminary and final results, are tracked in acQuire as well as on ALS Mineral’s online portal.

The authors believe the sampling procedures are adequate.



  7.1.6.

Core Recovery

Historic core recovery was described by (Evan et al., 2011):

“Overall core recovery for Victoria’s diamond drilling at the Cove Project is estimated at 90%.

“In RPA’s opinion, these values are likely to be overestimated based on the broken nature of the samples retrieved.” (Page 86)

The average recovery for core drilled by Premier is about 90%, which is consistent with historic recovery measurements. Recovery is calculated by measuring the length of material between blocks in the core box and dividing that length by the drilled interval length. It is difficult to measure length accurately for a broken interval of core, and the tendency is to over-estimate recovery in broken intervals. This is a typical problem for drilling in Northern Nevada, and the authors believe that 90% is a reasonable estimate of recovery. Although any sample with less than 100% recovery is sub-optimal, the authors believe the samples provide a reasonable representation of the rock package.

7.2. Hydrogeology



  7.2.1.

Sampling Methods and Laboratory Determinations

Hydrogeological data, including groundwater elevation measurements were collected in conjunction with exploration in pre-construction studies and later from hydrogeological studies in the pit and planned underground mining areas. Groundwater elevations were used to develop a piezometric surface and determine the direction of groundwater flow (hydraulic gradient),

A network of vibrating wire piezometers (VWPs) was the primary method of determining water levels to support of mine site characterization, see Figure 7 1 for collar locations of the VWPs. Some water levels were collected from wells. Most wells that were drilled underwent hydrologic testing to estimate aquifer parameters. These tests included short-term and long-term pumping tests. Data obtained from well testing were analyzed using industry standard analytical methods.





 Practical Mining LLC   March 26, 2025 


 Page 76

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Analytical and numerical groundwater flow models were developed based on 3D geological modeling and supported by the site-specific aquifer test analysis results.

The McCoy-Cove mine operated from 1985 to 2001. Dewatering occurred from 1988 until mid-2001 and utilized up to 24 dewatering wells, 13 sumps, and numerous horizontal drain holes. Dewatering water, apart from water that was consumed by the mining and milling processes, was placed in a series of rapid infiltration basins (RIB), located approximately one mile north of the pit, where the water infiltrated into the alluvium. In 2001, after mining ceased in the Cove pit and Cove underground, the project went into closure. Groundwater levels have been recovering since that time with the Cove pit forming a pit lake. All dewatering wells from the 1985 to 2001 program have been abandoned in accordance with Nevada Division of Water Resources (NDWR) regulations. Many of the historical monitoring locations from this era have also been abandoned in accordance with NDWR regulations. Existing alluvial monitoring wells, located in the vicinity of the McCoy-Cove mine, consist of heap leach pad monitoring wells, tailings dam monitoring wells, and RIB monitoring wells. Additionally, irrigation wells are monitored as part of the site’s Nevada Division of Environmental Protection Bureau of Mining Regulation and Reclamation (NDEP BMRR) Water Pollution Control Permit (WPCP).

According to permitting requirements, seven monitoring wells are sampled on a routine basis and analyses run for the State of Nevada Profile I suite at a certified analytical laboratory. Monitoring wells and exploration drill holes that have piezometers installed (VWPs) are monitored for piezometric heads. Surface water related to historical mine features is also monitored on a routine basis as required by various permits. Along with collar locations of the VWPs, the monitor well and test well locations are shown in Figure 7-10.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 77 



Figure 7-10. Vibrating Wire Piezometer and Groundwater Monitor Well Locations



LOGO





 Practical Mining LLC   March 26, 2025 


 Page 78

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  7.2.2.

Hydrogeology Investigations

Throughout the span of various mine property owners and operators, the Project area has been the subject of multiple studies aimed at characterizing the hydrogeologic properties of the stratigraphy within the Project area and the surrounding region. Hydrologic Consultants, Inc. (HCI) conducted various hydrogeologic conceptualization studies and groundwater flow modeling studies in the 1990s and early 2000s. In the 2010s, Itasca performed an additional groundwater flow model update. The studies by HCI focused primarily on dewatering of the Cove Pit while the studies in the 2010s and 2020s focused on the hydrogeologic conceptualization of the Gap and Helen deposits and dewatering of these deposits along with dewatering of the Cove pit lake (Table 7-3).

Table 7-3 Summary of Hydrogeological Studies


Year    Title    Author


1990

   Conceptual hydrogeologic model of Cove pit area as of June, 1990    Hydrologic Consultants, Inc.


1992

   Updated conceptual hydrogeologic model and estimates of future dewatering costs as of September 1992    Hydrologic Consultants, Inc.


1993

   Status report Cove pit dewatering program    Hydrologic Consultants, Inc.


1994

   Updated conceptual hydrogeologic model and estimate of future dewatering costs for Cove pit    Hydrologic Consultants, Inc.


1995

   Updated conceptual hydrogeologic model and estimate of future dewatering costs for Cove pit as of April 1995    Hydrologic Consultants, Inc.


1997

   Hydrogeologic framework and numerical ground-water flow modeling of McCoy/Cove Mine, Lander county, Nevada    Hydrologic Consultants, Inc.


1997

   Updated conceptual hydrogeologic model and predicted dewatering requirements for remaining life of McCoy/Cove mine    Hydrologic Consultants, Inc.


1999

   1999 update of hydrogeologic framework and numerical ground-water flow modeling of McCoy/Cove Mine, Lander County, Nevada    Hydrologic Consultants, Inc.


2001

   2001 update of numerical ground-water flow modeling for McCoy/Cove mine, Lander county, Nevada    Hydrologic Consultants, Inc.


2016

   Numerical groundwater model and predictions of Cove pit-lake infilling , McCoy Cove Mine    Itasca



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 79 





2018

   Cove Helen hydrogeologic characterization, numerical model update and preliminary dewatering plan    Piteau


2021

   Groundwater flow modeling conducted for simulation of Cove Pit-Lake recover, Lander County, Nevada    Montgomery & Associates


2023

   Flow modeling for the McCoy-Cove Project    Montgomery & Associates


2024

   Flow modeling for the Cove Gap/Helen Project    Montgomery & Associates

In 2017 Au-Reka contracted with Montgomery & Associates (M&A) to provide hydrogeologic services. M&A installed VWPs and test wells, performed pumping tests, performed surface water monitoring, and developed and updated the numerical groundwater flow model of the project area.



  7.2.3.

Hydrogeologic Description

The Hydrogeologic Study Area (HSA) lies within the Basin and Range province which stretches from the Sierra Nevada to the Wasatch Front. The HSA is shown in (Figure 7-11). The Project is located on the northeastern flank of the Fish Creek Mountains within the Lower Reese River hydrographic basin. The HSA comprises most of this basin along with portions of Middle Reese River, Antelope Valley, Jersey Valley, and Buffalo Valley hydrographic basins.

Areal recharge and groundwater underflow are the sources of groundwater in the HSA. Areal recharge occurs from infiltration of precipitation in the HSA either as direct recharge or as infiltration of runoff along streams. Underflow enters the HSA through Buffalo Valley, Middle Reese River Valley, and Antelope Valley. Groundwater leaves the HSA as underflow through Lower Reese River Valley and Jersey Valley, groundwater evapotranspiration through naturally occurring processes or from agriculture, and from mine use.



  7.2.3.1.

Surface Water

Surface water occurs within the HSA as intermittent, ephemeral, and perennial streams, and as seeps and springs – see Figure 7 3. Most drainages and streams, including the Reese River, are intermittent or ephemeral and only flow during particularly wet years or large storm events. The Reese River, within the HSA is characterized as a series of muddy pools and only flows during wet seasons. Beginning in 2022, M&A began monitoring seeps and springs (Montgomery and Associates 2023). In 2023, additional seeps and springs were added to the group being monitored along with flows and wet/dry reaches of select drainages (Montgomery and Associates 2024a).





 Practical Mining LLC   March 26, 2025 


 Page 80

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



M&A has continued to conduct these surface water surveys each year, with one sampling event during high spring runoff and a second in late fall during low flow (M&A 2023a, 2024a, and 2025).



  7.2.3.2.

Groundwater

Geologically, the HSA is comprised of three general geologic assemblages: Paleozoic, Mesozoic, and Cenozoic. The Paleozoic rock assemblage accounts for the basement rock within the HSA. The Mesozoic assemblage overlays the Paleozoic and hosts the Project. The Cenozoic assemblage contains the many volcanic units within the HSA as well as the Quaternary alluvial sediments that comprise the basin fill.

Groundwater is generally believed to follow topography meaning that groundwater within the mountains and highlands flow down the topographic gradient toward the basin fill sediments. Groundwater flows within the basin fill sediments along or parallel to the valley axis towards discharge points. Groundwater discharge is to evapotranspiration zones such as playas, or out of the HSA by underflow. Historical mining and agricultural pumping have affected groundwater flow locally within the HSA.

Groundwater underflow in the alluvial sediments occurs along the HSA boundary in Buffalo Valley, Antelope Valley, and in the sediments beneath the Reese River at the southeastern corner of the HSA.

Historically groundwater pumpage has occurred due to agriculture in Buffalo Valley, Antelope Valley, and Lower and Middle Reese River Valleys. Due primarily to agricultural pumping, water levels are generally declining. Groundwater pumpage for mining has occurred during the historic McCoy/Cove mining and currently at the NGM Phoenix project located on the southern flanks of Battle Mountain at the northern edge of the HSA. At the McCoy/Cove mine, excess dewatering water was discharged to, and infiltrated into the basin fill sediments in Lower Reese River Valley.

Locally at the project, groundwater generally flows from the west or the upland areas towards the east and out into Lower Reese River Valley. This general flow is observed with the exception of the area around the Cove Pit lake which acts as a local evaporative sink.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 81 



Figure 7-11 Hydrogeologic Study Area/Model Area

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 82

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  7.2.4.

Mine Dewatering

Beginning in 1988 wells were installed to dewater the Cove pit. As mining progressed additional wells were installed to augment the dewatering of the pit. Dewatering was accomplished through 24 dewatering wells, 13 sumps, and numerous horizontal drain holes.

Starting in mid-1989, dewatering wells pumped between 2,000 and 3,000 gpm in addition to the water pumped from underground sumps. As mining continued, additional dewatering wells were installed. By 1992, dewatering operations were producing over 10,000 gpm, reaching a maximum dewatering rate of nearly 23,000 gpm in late 1994, primarily from dewatering wells. The maximum annual dewatering rate in 1993 and 1994 was just over 19,000 gpm. Horizontal drains ranging from 300 to 600 feet long were installed to depressurize portions of the open pit highwall, primarily east of the Lighthouse Fault where water levels were higher. Average annual dewatering rates from 1988 through 2000 are shown in Figure 7-12.

Underground mining resumed beneath the pit in 1999 and continued until July 2001 with the bulk of the mining focused on the southeast corner below the Cove Pit. The final Cove Pit floor elevation of 3,895 feet was reached in October 2000 and dewatering achieved 675 feet of drawdown. After underground mining ceased in July 2001, the pit was partially backfilled with waste rock along the south and southwest walls and dewatering activities were scaled back. Several of the dewatering wells were kept in operation for an additional 6 months and their production was pumped into the pit lake to quickly submerge sulfide-bearing waste rock that was placed near the bottom of the pit. The pit lake has reached an elevation of 4,628.1 ft amsl as of June 2023.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 83 



Figure 7-12 Historical Cove Dewatering Rates

LOGO



  7.2.5.

Dewatering Discharge

Historic dewatering operations at McCoy-Cove mine occurred between 1988 and 2001, see Figure 7 12 showing the annual dewatering rates. Most pumped groundwater was discharged into RIBs located northeast of the Cove Pit. Annual average infiltration rates at the historic RIBs ranged between approximately 3,400 gpm and 17,500 gpm. The yearly average RIB infiltration rates are shown on Figure 7-13.





 Practical Mining LLC   March 26, 2025 


 Page 84

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 7-13 Historical Discharges to RIBs



LOGO



  7.2.6.

Groundwater Flow Model

The first groundwater flow model at Cove was prepared by HCI, in the early 1990s with continued updates through 2001. Modeling was restarted in the mid-2010s by Itasca and Piteau to estimate dewatering needs for the Gap and Helen deposits. In 2021 M&A updated the groundwater flow model (Montgomery and Associates 2021). Over the past five years M&A has updated and recalibrated the groundwater flow model two additional times; with the most recent model prepared for NEPA baseline characterization (Montgomery and Associates 2023b, 2024b).



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 85 



  7.2.6.1.

Model Overview

The numerical groundwater flow model code used for this study is MODFLOW-USG (Panday, et al., 2017). This model code is an unstructured grid version of the 3D finite-difference code MODFLOW (McDonald and Harbaugh, 1988). MODFLOW-USG allows for horizontal and vertical grid refinement in areas of interest while allowing for coarser gridding on the regional scale.

As shown on Figure 7-11 and Figure 7-14, the numerical groundwater flow model area is approximately 1,200 square miles. The model grid’s horizontal discretization uses quadtree refinement which subdivides each “parent” cell into 4 “children” cells. The model grid has 5 levels of quadtree refinement. The largest parent cell has an equal x-y length of 3,200 feet which is sequentially divided into x-y lengths of 1,600 feet, 800 feet, 400 feet, and 200 feet. The 3,200 feet by 3,200 feet grid cells are used to simulate the regional areas outside of the McCoy-Cove and Phoenix mine sites. The level of refinement increases as the model cells approach the mine sites. The smallest refinement cell, 200 feet by 200 feet, is located within the immediate area of the mine sites.

The top of the model is defined by the land surface. The base of the model is set uniformly to be at zero ft amsl to reduce the potential interactions between the model bottom boundary and mine dewatering stresses. The geologic units within the Model Area are grouped into hydrogeologic units (HGU). The model’s vertical discretization is based on the geologic model of the hydrostratigraphy. Each HGU is assigned a single or multiple layers depending on its total thickness.

The historical simulation begins on December 31, 1978, and ends on January 1, 2024. The first stress period lasts one day and simulates steady-state conditions representative of pre-development conditions. Stress periods two through 10 last one year and simulate transient conditions through 1987. Stress periods 11 and 12 simulate 1988 with stress period 12 representing the beginning of the McCoy-Cove mining. Annual stress periods are resumed until stress period 25, which ends on July 31, 2001, when McCoy-Cove mining operations stopped, and the Cove Pit Lake filling began. Stress period 26 simulates the time it takes from August 1, 2001, through January 31, 2002, to fill the pit lake by pumping from several McCoy-Cove dewatering wells. The pit lake was intentionally quick filled with water to stabilize the geochemistry. Annual stress periods continue through 2018. 2019 is divided into many stress periods to simulate the aquifer testing conducted in 2019. Annual stress periods then resume for 2020 through 2022. 2023 is also divided into many stress periods to simulate the aquifer testing conducted in 2023.





 Practical Mining LLC   March 26, 2025 


 Page 86

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 7-14 Model Grid Extent

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 87 



  7.2.6.2.

Model Calibration

Numerical model calibration is the process used to simulate hydrogeologic conditions measured in the past and adjust model parameters so that simulated historical conditions can be approximated. This process is often called history matching because the numerical model is used to match historical conditions. The hydrogeological conditions used for history matching include historical groundwater levels and changes in groundwater levels, surface water flows, and groundwater flows. Calibration is performed on historical water levels, estimated groundwater budgets, and the aquifer tests performed in 2019 and 2023 using pumping from WE01 and WE02 test wells.

From the late 1980s through the middle of 2001, McCoy-Cove dewatering operations lowered water levels in the vicinity of the Cove Pit. After dewatering ceased in 2001, water levels began to recover, and the Cove Pit Lake formed. In the pit, and on the northern and eastern side of the Cove Pit, the simulated and observed water levels closely match. This match between observed and simulated water levels indicates the model bulk hydraulic properties in the pit and to the north and east are representative of actual hydraulic properties. Hydrographs from the western and southern sides of the Cove Pit tend to under-simulate the observed drawdown (Figure 7-15). The underprediction of the simulated drawdowns likely means that the simulated hydraulic conductivities to the west and south of the pit are slightly higher than actual. The simulated and observed Cove Pit Lake filling curves are tightly correlated (Figure 7-16). The correlation between simulated and observed pit lake stages is an indicator that the bulk hydraulic properties surrounding the Cove Pit are reasonably represented within the model.

The steady state residual mean is 19 feet, which means that on average the simulated steady state, pre-development water levels are 19 feet lower than observed. The transient residual mean is -27 feet, indicating the transient simulated water levels are on average 27 feet higher than observed. The absolute residual mean is a measurement of the average magnitude of the residual, with 38 feet and 63 feet the absolute residual mean for the steady state and transient periods, respectively. When evaluating model calibration, a scaled statistic of less than 10% is evidence of a reasonable model calibration and is calculated by dividing the statistic by the observation range. All scaled statistics calculated for the model are below 10% and indicate an adequately calibrated model.





 Practical Mining LLC   March 26, 2025 


 Page 88

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 7-15 Representative Simulated and Observed Hydrographs around the Cove Pit Lake





LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 89 



Figure 7-16 Simulated and Observed Cove Pit Lake Stage

LOGO

Table 7-4 Calculated Model Calibration Statistics




Group

 Steady 

State

   Transient     Total 


Number of Locations

   62   144   252


Number of Observations

   63   3,429   3,538


Observation Range

   2,661   1,011   3,344


Residual mean (feet)

   19   -27   -25


Absolute residual mean (feet)

   38   63   63


Root mean square error (feet)

   69   94   95


Scaled root mean square error (feet)

   2.6%   9.3%   2.8%


Scaled absolute mean residual (feet)

   1.4%   6.2%   1.9%



  7.2.6.3.

Predictive Groundwater Flow Modeling of Dewatering for Gap and Helen Mining

The proposed Project will mine the Gap and Helen deposits beneath the bottom of the westernmost portion of the Cove Pit and extend to the west-northwest of the Cove Pit. The underground mine begins with the decline at the surface along the northern side of the Cove Pit and then extends





 Practical Mining LLC   March 26, 2025 


 Page 90

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



down to approximately 3,400 ft amsl. With the decline primarily constructed down to the approximate water table of 4,630 ft amsl, mining down to the 3,400 ft level would occur over 9 years from 2029 through the end of 2037 (Figure 7-17).

Figure 7-17 Projected Mine Elevation for Dewatering During Life of Mine

LOGO

Dewatering will be required because the ore body is hosted entirely below the current water table. The hydrogeological impacts from the proposed Project are largely related to the required dewatering of approximately 1,000 feet during the first couple of years of mining ending in



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 91 



2030. To simulate Helen and Gap mining, the groundwater model is temporally extended through the end of mining, 2037, and then for an additional 500 years to simulate post-mining hydrogeologic recovery.

Predictive modeling is undertaken to simulate the dewatering efforts needed for the Project in addition to its related simulating hydrogeological impacts. Figure 7-18 shows the simulated water levels of the Cove Pit Lake and of 2 representative locations within the Project underground workings: one in the Gap deposit and a second in the Helen Deposit. As evidenced by the dashed lines, simulated water levels are just above or below the workings during the life of mine. Figure 7 10 also shows that the simulated stage from the pit lake drops below the bottom of the pit lake by the end of 2032, resulting in the pit lake being completely dewatered.

Figure 7-18 Simulated Water Levels During the Life of Mine

LOGO

Dewatering will occur through direct pumping from the Cove Pit Lake and from dewatering wells. Dewatering rates through 2037 are shown on Figure 7-19. The water to be managed peaks in 2027 at approximately 55,000 gallons per minute (gpm) and declines to approximately 24,000 gpm at the end of 2037. Pit lake pumping also peaks in 2027 at approximately 27,500 gpm and declines to nothing when the pit lake becomes dewatered at the end of 2032. Well dewatering peaks in 2028 at approximately 33,000 gpm. Dewatering was simulated using 15 wells screened through the vertical extent of the underground workings and extending down approximately 100 ft below the workings. Dewatering well locations are shown in Figure 7-20. Of these 15 dewatering wells, 2





 Practical Mining LLC   March 26, 2025 


 Page 92

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



are the existing test wells (WE-01 and WE-02). The remaining 13 dewatering wells will need to be constructed.

Figure 7-19 Simulated Dewatering Rates

LOGO

Residual passive inflow (RPI) represents seepage water within the underground workings that would need to be managed and sumped. RPI is limited to approximately 100 gpm throughout the predictive simulation. All managed water is discharged to RIBs. The peak annual discharge to RIBs is approximately 43,000 gpm in 2028. The annualized average discharge rate to the RIBs declines from the peak value in 2028 to approximately 24,000 gpm in 2037.



  7.2.6.4.

Groundwater Model Summary

A numerical groundwater flow model was developed to estimate dewatering rates required for the Project. Existing hydrologic datasets, including measured water levels and results from pumping tests, were used to calibrate the numerical flow model. Following model calibration, the model was used to simulate predictive dewatering rates.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Exploration

  Page 93 



Figure 7-20 Dewatering Well Field Locations Used For Predictive Modeling

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 94

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  8.

Sample Preparation, Analysis and Security



  8.1.

Pre-2012

Of the 21 Echo Bay RC holes, only seven were presented with assay results. RPA was unable to determine the sample preparation laboratory or procedures for the Echo Bay and Newmont RC holes. RPA assumes that they were prepared to industry standards at the time either in-house or at a commercial facility. The Echo Bay samples were analyzed by Rocky Mountain Geochemical Corp. in West Jordan, Utah. The Newmont samples were analyzed by ALS Chemex in Sparks, Nevada. As per the ALS Chemex certificates, pulp samples were received and a 50-element aqua regia inductively coupled plasma (ICP) analytical package (ME-MS41) was run. The ICP elements, and their ranges in ppm or percent, are listed below:

Table 8-1 Pre-2012 ICP Analysis





Ag

   0.01-100      Cu     0.2-10,000      Na     0.01%-10%      Ta     0.01-500


Al

   0.01%-25%      Fe    0.01%-50%      Nb    0.05-500      Te    0.01-500


As

   0.1-10,000          Ga    0.05-10,000          Ni    0.2-10,000          Th    0.2-10,000


B

   10-10,000      Ge    0.05-500      P    10-10,000      Ti    0.005%-10% 


Ba

   10-10,000      Hf    0.02-500      Pb    0.2-10,000      TI    0.02-10,000


Be

   0.05-1,000      Hg    0.01-10,000      Rb    0.1-10,000      U    0.05-10,000


Bi

   0.01-10,000      In    0.005-500      Re    0.001-50      V    1-10,000


Ca

   0.01%-25%      K    0.01%-10%      S    0.01%-10%      W    0.05-10,000


Cd

   0.01-1,000      La    0.2-10,000      Sb    0.05-10,000      Y    0.05-500


Ce

   0.02-500      Li    0.1-10,000      Sc    0.1-10,000      Zn    2-10,000


Co

   0.1-10,000      Mg    0.01%-25%      Se    0.2-1,000      Zr    0.5-500


Cr

   1-10,000      Mn    5-50,000      Sn    0.2-500


Cs

   0.05-500        Mo    0.05-10,000        Sr    0.2-10,000

Note: ppm unless otherwise indicated

Fire Assay (FA) with an atomic absorption (AA) finish was utilized for gold assays (Au-AA23 package). Any gold FA values over 3 ppm were rerun by gravimetric methods (Au-GRA21). The detection limit for both gold assaying methods was 0.005 ppm. (Roscoe Postle Associates Inc., 2017)

Victoria’s Cove samples were all prepared and analyzed by the Inspectorate assay laboratory located in Sparks, Nevada. The following discussion relates specifically to Victoria’s samples.



  8.1.1.

Sample Preparation Procedures

Upon receipt by Inspectorate the core samples were reviewed, sorted, and oven dried (230oF). The samples were crushed to +80% passing 10 mesh by jaw crusher and pulverized to +90% passing



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Sample Preparation, Analysis and Security

  Page 95 



150 mesh by ring and puck. The samples were then split by a splitter; one half of the sample was set aside as the “reject” and the remaining half sample split again. This process was continued until the sample equalled three-fourths of the volume of a pulp envelope. The total rejects were tied, tagged, and palletized.



  8.1.2.

Laboratory Analysis Procedures

Gold assays were first run by FA with an AA finish with a detection limit of 5 ppb. Any gold FA values over 3 ppm were rerun by gravimetric methods. Silver assays were also run by FA/AA with a detection limit of 0.1 ppm.

A summary of Inspectorate’s FA method is described below:





Samples are received from weigh-room in labelled envelopes;





Crucibles are set up in trays of twenty by numbers assigned from Laboratory Information Management System (LIMS);





Crucibles are charged with the appropriate type and amount of flux;





Samples are transferred from the envelopes to the appropriately labelled crucible, copper spikes are inserted, and inquarting is conducted;





Additional reagents are added to the crucible if needed and sample and flux is mixed with cover flux added on to the top of charge;





Crucibles in sets of 80 charges are then loaded into pre-heated gas fusion furnace and fusion is conducted for one hour at 2,100°F;





Upon completion of fusion, molten lead-slag is poured into numbered conical moulds. Unsatisfactory fusions are submitted back to the weighing room for reweigh;





Fusions are allowed to cool and the moulds are transferred in order to the slagging station. Slag is removed with hammer, and lead buttons are cubed and placed in numbered trays;





MgO cupels are heat treated in the cupel furnace at 1,800°F for a minimum of five minutes to drive off moisture. Cupels are then carefully evaluated for cracks or erosion and are discarded accordingly;





Lead buttons are loaded into cupels in order and the set is then loaded with a fork into an electric oven set at 1,800°F;





Upon full cupellation (lead adsorption), the cupels are allowed to cool and the resulting Ag ± Au prills are placed into numbered trays;





For AA finish, the prills are dissolved in aqua regia and analyzed on the ICP; and





For gravimetric finish, the prills are placed in parting cups, approximately two-thirds full with 20% Nitric Acid to dissolve the silver, and then heated on a hotplate at 125°F until parted. The gold bead is then allowed to cool, transferred to cups, rinsed with cold de-





 Practical Mining LLC   March 26, 2025 


 Page 96

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





ionized water, and allowed to dry. The cups are fired at 1,560oF for approximately five minutes, and then allowed to cool. The resulting doré bead is weighed on a microbalance.

A multi-element ICP analytical package was also run for most samples. The ICP elements determined including their detection limits in ppm are presented below:

Table 8-2 ICP Analysis 2012 - 2018



Ag

   0.1-100    Co    1-10,000    Mg    100-100,000    Sc    1-10,000


Al

   100-100,000    Cr    1-10,000    Mn    5-10,000    Se    0.2-1,000


As

   5-10,000    Cu    1-10,000    Mo    1-10,000    Sr    0.2-10,000


B

   10-10,000    Fe    100-100,000    Na    100-100,000    Ti    100-100,000


Ba

   10-10,000    Ga    0.05-10,000    Ni    1 -10,000    TI    10-100,000


Bi

   2-10,000    Hg    3-100,000    P    10-50,000    V    1-10,000


Ca

   100-100,000    K    100-100,000    Pb    2-10,000    W    10-5,000


Cd

   0.5-1,000    La    2 -10,000    Sb    2-10,000    Zn    2-10,000



  8.1.3.

Security

Security measures taken to ensure the validity and integrity of the samples collected included:





Chain of custody of drill core from the drill site to the core logging area;





Buildings were kept locked when not in use;





Core sampling was undertaken by technicians under the supervision of Victoria geologists;





All intersections were kept in the Reno office; and





Inspectorate was storing all the rejects and pulps indefinitely.



  8.2.

Premier 2012-2018

Drill hole samples collected by Premier were sent for assay analyses to three independent laboratories:





American Assay laboratory, Sparks, Nevada, accredited ISO/IEC 17025:2005;





Inspectorate America Corporation, Sparks, Nevada, accredited ISO 9001:2008 and ISO/IEC 17025:2005; and





ALS Minerals, Vancouver, British Columbia, accredited ISO/IEC 17025:2005.

From 2012 until end of 2014, samples were sent for analyses to Inspectorate laboratories. Starting with 2015, samples were sent to ALS. The pulp sample checks were sent to the American Assay laboratory.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Sample Preparation, Analysis and Security

  Page 97 



The sample preparation and gold FA procedures for the Premier 2012-2016 drilling programs at all the laboratories are essentially the same as described above except that gold FA results greater than 10 g/t Au are re-assayed by FA/gravimetric.

In addition to the fire assay analysis, the 2016-2022 program included analysis of gold and silver by screen metallic methods when visible gold was noted in the polymetallic sheeted veins intercepted in the 2201 zone. The program also incorporated a 42-element, four-acid, ICP-mass spectrometry, ultra-trace level analysis.

The sample preparation, analysis, and security procedures at the Project are adequate for use in the estimation of Mineral Resources.



  8.3.

i-80 2023-Present Underground Resource Conversion Drilling

When sampling is complete for a hole, the sample bin is picked up by a driver for ALS Minerals and delivered to the assay lab. ALS is independent of i-80. ALS Minerals is ISO 9001 and 17025:2017 certified. Samples are dried, weighed, screened, crushed to 70% passing 10 mesh, split to 250g with a riffle splitter, then pulverized to 85% passing 200 mesh. Samples submitted through ALS Minerals (4977 Energy Way, Reno, NV 89502 or 1345 Water St. Elko, NV 89801) were analysed for Au using 30g fire assay, aqua regia digestion with AAS finish (code Au-AA23), with detection range 0.005 to 10 ppm Au. Samples with an Au result greater than 10 ppm Au were analysed using 30g fire assay with gravimetric finish (code Au-GRAV21), detection range 0.05 to 10,000 ppm Au. Samples are also assayed with a 48 element suite (code ME-MS61) using 0.5g 4-acid digestion with ICP-AES finish. For samples containing >2 ppm Au an additional assay is performed for Hg by ICP-MS (Hg-MS42). The ALS ICP-AES facility is located at 2103 Dollarton Hwy, North Vancouver, BC, Canada. This drill program is ongoing and has not been included in the current resource estimate.

Cut core is stored on pallets at the Lone Tree core yard. Coarse rejects are returned from the assay lab and stored in 55-gallon drums at the Lone Tree core yard. Leftover sample pulp material is returned from the assay lab and stored in the pulp warehouse at Lone Tree.



  8.4.

Quality Assurance and Quality Control



  8.4.1.

Standards and Blanks

A total of 69 different blank and gold standard reference materials have been used at Cove. Table 8-3 presents the results of the most frequently assayed materials. The null hypothesis test compares the calculated t-statistic to the t value for a 95% confidence level. Acceptance of the test indicates that the lab mean is within the 95% confidence limit of the standard value. A rejection result from the test does not necessarily mean the data is not representative of the expected value but rather





 Practical Mining LLC   March 26, 2025 


 Page 98

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



that the test was inconclusive. Groups which have a high out limit frequency are not necessarily reject by the t-test if the standard deviation for the group is not excessively high.

Table 8-3 Gold Blank and Standard Summary Statistics


ID     Count 

  Lab Mean  

PPM



  Lab Std  

Dev



Out of

  Limit  

Rate



  Std. Value  

PPM

     t-statistic       ta /2  

Null

 Hypothesis 

Test



Blank

   1880    0.054    0.626    14%   0.005    3.380   1.646    Reject


CDN-GS-P8C

   166    0.777    0.108    3%   0.784    (0.843)   1.974    Accept


CDN-GS-P4E

   392    0.519    0.412    3%   0.493    1.256   1.966    Accept


SP37

   283    17.892    2.560    0%   18.140    (1.631)   1.968    Accept


CDN-ME-1301

   150    0.550    0.434    20%   0.437    3.180   1.976    Reject


CDN-GS-22

   144    22.600    2.523    14%   22.940    (1.618)   1.977    Accept


CDN-GS-5L

   193    4.747    0.551    10%   4.740    0.180   1.972    Accept


OREAS 503b

   116    0.695    0.013    0%   0.695    (0.086)   1.981    Accept


G912-1

   109    7.356    0.112    0%   7.290    6.132   1.982    Reject


OxJ120

   107    2.365    0.044    45%   2.365    0.033   1.983    Accept


CDN-GS-5H

   99    4.004    1.930    48%   3.840    0.847   1.984    Accept


CDN-GS-2M

   85    2.917    3.865    22%   2.210    1.686   1.989    Accept


CDN-GS-12

   77    9.423    1.770    32%   9.980    (2.760)   1.992    Reject


CDN-GS-11

   63    3.398    0.877    21%   3.400    (0.020)   1.999    Accept


CDN-GS-4D

   47    3.839    0.408    19%   3.810    0.483   2.013    Accept


G307-7

   32    7.964    0.102    0%   7.750    11.837   2.040    Reject


SQ48

   45    30.229    0.327    22%   30.250    (0.433)   2.015    Accept


OXI81

   43    1.815    0.126    28%   1.807    0.418   2.018    Accept


OXD87

   34    0.412    0.024    18%   0.417    (1.162)   2.035    Accept


CDN-GS-30

   33    33.553    0.786    3%   33.500    0.390   2.037    Accept


G909-4

   33    7.496    0.176    0%   7.520    (0.770)   2.037    Accept


CDN-GS-15B

   31    15.619    2.179    13%   15.980    (0.924)   2.042    Accept



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Sample Preparation, Analysis and Security

  Page 99 



Figure 8-1 Blank Assay Results

LOGO

Figure 8-2 SP 37 Standard Reference Material Results

LOGO







 Practical Mining LLC   March 26, 2025 


 Page 100

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 8-3 CDN-GS-22 Certified Reference Material Results

LOGO

Figure 8-4 CDN-GS-5H Certified Reference Material Results

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Sample Preparation, Analysis and Security

  Page 101 



Figure 8-5 GS912-1 Certified Reference Material Results

LOGO



  8.4.2.

Duplicate Assays

Duplicate assays are performed under two scenarios. The geologist can instruct the lab to duplicate the pulp of a specified sample (Figure 8-6) or the pulp can be sent to another lab for check assay (Figure 8-7). Both types of duplicates show good replication of assay values.





 Practical Mining LLC   March 26, 2025 


 Page 102

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 

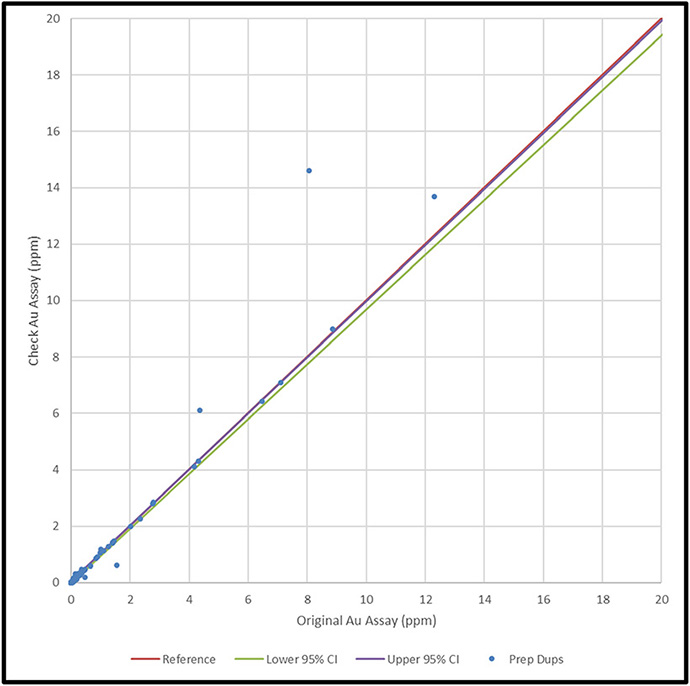

Figure 8-6 Prep Duplicates - ALS Reno

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Sample Preparation, Analysis and Security

  Page 103 



Figure 8-7 Lab Check Duplicates

LOGO

It is the authors opinion that the sample preparation, security, and analytical procedures are adequate for the estimation of Mineral Resources.





 Practical Mining LLC   March 26, 2025 


 Page 104

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  9.

Data Verification

Practical Mining received the McCoy Cove drill hole database from Premier’s Geology team. Premier exported the data as csv files for Practical Mining from Maxwell Geoservices software. The authors imported the data into Maptek Vulcan software and identified holes within the resource area. The authors selected 5 percent of holes from the resource dataset for detailed review. The selected holes are a spatial and temporal sampling of the data, the majority consisting of holes drilled by Victoria and Premier because most older holes are in the mined area and supported by past production. Premier supplied copies of the raw data for the selected holes to the authors.

The authors compared the raw data with the corresponding records in the database. Records reviewed include assay values for gold and silver, collar location surveys, and downhole deviation surveys. The authors observed no significant problems with the data, and conclude the data is suitable for use in the resource estimation.

The authors did not observe any mismatches between assay certificates and the database. Minor inconsistencies in the handling of missing data were noted. Sampled intervals which lack assay data typically have a blank cell in the assay column of the csv, but holes AX-10 and AX-22 contained negative values. Those holes were subsequently corrected by re-importing into Maxwell Geoservices software. All missing data cells were assigned -99 for use in Vulcan software, including holes AX-10 and AX-22, so the database inconsistency did not affect the estimation.

Collar surveys are collected by professional land surveyors and reported to Premier in Excel spreadsheets. Collar surveys are occasionally duplicated on subsequent surveyor visits, and surveys will vary slightly due to limits in precision. The authors noted one collar with a slight mismatch between the surveyor’s spreadsheet and the database, however the small difference in distance has an insignificant effect on hole placement and may be attributed to multiple surveys of the same collar.

The authors did not observe any mismatches between downhole survey reports and the database. Table 9-1 summarizes the scope of the detailed drill data review.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Data Verification

  Page 105 



Table 9-1 Data Review Summary




      Holes in
Data Set
     Holes
Audited
     Collar Survey
Coordinates
Reviewed
     Downhole
Surveys
Reviewed
     Assay
Certificates
Reviewed



Number of Drill Holes

     1,397        70        70        70        88


Percent of Population Reviewed

              5%        5%        5%        6%

All holes were checked for overlapping intervals using Vulcan, and there were none. Hole traces were viewed in Vulcan to confirm there were no extreme survey deviations. Lithology was viewed in Vulcan to confirm that the geology model conforms to the geology data.

In summary, the authors observed no significant problems with the data, and conclude the data is suitable for use in the resource estimation.





 Practical Mining LLC   March 26, 2025 


 Page 106

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



10. Mineral Processing and Metallurgical Testing



  10.1.

Historical Metallurgical Test Work

Metallurgical testing reviewed in regard to the Cove Project including date, laboratory, and listed accreditation are shown in Table 10-1.

Table 10-1 Metallurgical Testing Programs




Date    Laboratory    Accreditation    Program
2008

Kappes Cassiday &

Associates (KCA)

7950 Security Circle

Reno, NV 89506

   No certifications listed on website. Independent of i-80.    Whole Ore Leaching and Flotation Tests;
2009

Kappes Cassiday &

Associates (KCA)

7950 Security Circle

Reno, NV 89506

   No certifications listed on website. Independent of i-80.    Roasting and Cyanidation of Calcine, Hot Lime Treatment, and Flotation Tests
2017

SGS Lakefield Research Ltd. (SGS)

185 Concession St,

Lakefield, ON K0L 2H0,

Canada

   Conforms to the requirements of the ISO/IEC 17025 standard for specific registered tests. Independent of i-80.    Whole ore leaching, roasting, pressure oxidation and cyanidation of oxidation products
2021

Kappes Cassiday &

Associates (KCA)

7950 Security Circle

Reno, NV 89506

   No certifications listed on website. Independent of i-80.    Whole ore chlorination oxidation and leaching
2022

FLSmidth Minerals Testing and Research Center

7068 S. FLSmidth Dr

Midvale, UT 84047



   No certifications listed on website. Independent of i-80.    Whole ore pressure oxidation



  10.1.1.

2008 KCA Program

The 2008 KCA test program was conducted on nine (9) composites from the Helen Zone. The testing included:





Bottle Roll direct cyanidation of each composite;





Bottle roll Carbon-In-Leach (CIL) cyanidation of each composite; and





Rougher and Scavenger Flotation on each composite.

The whole ore cyanidation tests gave generally poor gold extractions ranging from 1% to 23%.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 107 



The CIL cyanidation tests gave higher gold extractions ranging from 49% to 82%.

The difference between the whole ore cyanidation and the CIL cyanidation indicates a pregnant solution robbing (“preg robbing”) component in the composites tested.

The flotation tests gave gold recoveries into a concentrate ranging from 24% to 59%. The corresponding concentrate weight recoveries ranged from 9 to 13%.

The flotation tests gold recoveries were low and did not demonstrate a strong amenability towards flotation.

Based on the suspicion that the relatively poor cyanidation results from the 2008 testing were due to the preg-robbing carbonaceous content of the materials tested the 2009 KCA test program investigated three types of processes to mitigate the effects of carbonaceous matter. Testing was conducted using a composite constructed from the composite remains from the 2008 program. The testing included:





Head Characterization for Carbonaceous and Sulfide Material in 2008 Drill hole interval samples used in 2008 composite construction;





Roasting followed by cyanidation of calcine using both direct cyanidation and CIL cyanidation of the calcines;





Hot Lime treatment of the Composite; and





Flotation.

The head analyses indicated organic carbon contents ranging from 0.03% to 0.96% with an average of 0.44%. The sulfide sulfur content ranged from 0.15% to 1.79% with an average of 1.02%. The assays confirmed the presence of carbonaceous material as well as potential refractory aspects related to sulfide sulfur content.

Roasting tests were conducted using a 650°C for two hours. The gold extraction for the direct cyanidation of the calcine was 87% while the extraction using CIL cyanidation of the calcine was 90% which indicates that after calcination there are still active preg-robbing factors.

The hot lime treatment was conducted on a sample of the composite ground to 80% passing 74 µm to which a lime addition of 100 lbs/ton was made. Hot lime treatment may be effective in recovering previously preg-robbed gold. The slurry was heated to 100°C and agitated for 8 hours. The slurry was then leached with cyanide. The gold extraction for the hot lime test was 40%.

Two flotation tests were conducted, the first using a rougher, scavenger, cleaner simulation, the second simulating four stages of rougher flotation. The gold recovery from the first test was 54%





 Practical Mining LLC   March 26, 2025 


 Page 108

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



into a concentrate with a 17.6% weight recovery. The second test gave a gold recovery of 31% into a concentrate with a weight recovery of 20.7%.



  10.1.2.

2009 KCA Program

The 2009 tests confirmed the presence of carbonaceous material, the likely cause of preg-robbing observed in the whole ore cyanidation tests.

The tests indicated that roasting and calcine cyanidation may be an effective treatment for the material tested. The hot lime treatment and flotation tests did not match the roast and calcine cyanidation gold recoveries.



  10.1.3.

2017 SGS Programs

Eleven composites from the Helen Zone and ten from the Gap were sent to SGS Canada Inc., Lakefield, Ontario, Canada in 2017. The samples were selected from drill holes and drill hole intervals to provide spatial representation of the deposits both vertically and horizontally. The primary objectives of the test program included:





Head grade characterizations of the physical and metallurgical properties of each resource to meet requirements for third-party processing;





Provide preliminary metallurgical data for the resource targets for potential metallurgical third-party processing;





Determine precious metal extractions, and deportments, reagent consumptions, with the following process routes:





Whole ore leaching;





Roasting followed by calcine leaching; and





Pressure oxidation followed by leaching of neutralized slurry.





Roasting and pressure oxidation test conditions used were based on those provided by a potential third-party toll processor.

The SGS program scope did not include testing to optimize roasting or pressure oxidation conditions nor to develop process design data a purpose-built processing facility for Cove.

Gold head grades for the samples were:





Helen samples averaged 11.7 g/t Au, ranging from 4.50 g/t Au to 32.6 g/t Au;





Gap samples averaged 17.1 g/t Au, ranging from 4.38 g/t Au to 37.6 g/t Au.

Baseline leach tests showed the extreme refractory nature of the Cove deposit. Results from 24 hours leaching showed:



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 109 





Helen samples averaged 10.8% Au recovery, skewed by one test with a recovery of 90.8% Au. Without this result, the average is 2.5% Au.





Gap samples averaged 1.2% Au recovery.

Roasting conditions used are shown in Table 10-2.

Table 10-2 Roasting Test Conditions




Conditions    Value


Stage 1:



Temperature:

   530°C


CO2 flow:

   0.8 L/min


O2 flow:

   1.2 L/min


Time:

   30 min


Stage 2:



Temperature:

   570°C


O2 flow:

   2 L/min


Time:

   15 min

The roasting and calcine leach tests showed the following:





Sulfide oxidation with the Helen composites ranged from 85.9% to 97.0% while for the Gap composites ranged from 87.9% to 98.1%;





Carbonate oxidation was inconsistent, but the Helen composites was generally low but with the Gap composites was somewhat higher. Low carbonate concentrates often resulted in negative oxidations;





Gold leach recoveries from the Helen composite calcines was variable ranging from 63.5% to 90.8%;





Silver leach recoveries from the Helen composite calcines was variable ranging from 9.6% to 56.5%;





Gold leach recoveries from the Gap composite calcines was variable ranging from 54.4% to 89.4%; and





Silver leach recoveries from the of Gap composite calcines was also variable ranging from 23.1% to 77.0%.

Pressure oxidation (POX) tests were conducted under fixed conditions and not for optimization of oxidation conditions. The tests were conducted under the following conditions:





225°C;





60 minutes retention time;





700 kPa oxygen overpressure.





 Practical Mining LLC   March 26, 2025 


 Page 110

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The pressure oxidation and oxidation product leach tests showed:





Pressure oxidation resulted in high sulfide oxidation of both Helen and Gap samples;





Carbonate removal in the Helen composites averaged 97.2% while carbonate removal in the Gap composites averaged 82.5% but this average was skewed lower from two Gap composites having very low head carbonate contents;





Gold leach recoveries of Helen composite POX products ranged from 0.3% to 96.6%. This indicates that even with oxidation of sulfide and to a lesser extent carbonate removal, pressure oxidation is less effective than roasting for improving gold recoveries in Helen samples;





Silver leach recoveries of Helen composite POX products ranged was highly variable ranging from 6.7% to 69.6%;





Gold leach recoveries of Gap composite POX products was variable ranging from 5.7% to 73.6%. This indicates that even with oxidation of sulfide and to a lesser extent carbonate removal, pressure oxidation is less effective than roasting for improving gold recoveries in Gap samples;





Silver leach recoveries of Gap composite POX products was also variable ranging from 52.5% to 81.7%; and





The data set was too small to establish any clear relationship between mineralogy, head grade and leach recovery although it is clear that mineralogical factors such as arsenic grade and total carbonaceous matter or total organic content impact leach recoveries with pressure oxidation and POX product leaching.

A second phase of testing was completed to investigate the reasons for the low recoveries with both roasting and pressure oxidation that occurred in the Phase 1 tests. Calcine and POX products were generated on selected composites from the Helen and Gap, using the same conditions from phase 1. The calcines and POX products were split in two. One half of each spilt was leached under the same conditions used in phase 1. The other half of each split was processed using carbon-in-leach (CIL). CIL was used to determine if preg robbing was still occurring from active organic carbon species still present in either the calcine or POX product.

Leach and CIL tests on the POX product showed that:



With the Helen samples:





Gold leach (48 hours) recoveries ranged from 0.6% to 5.1% while CIL tests (also 48 hours) showed recoveries from 62.3% to 81.9%, significantly higher than the direct leach;



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 111 





Silver leach (48 hours) recoveries ranged from 36.2% to 86.9% while with CIL tests ranged from 76.8% to 86.9% significantly higher than the direct leaching;





With the Gap samples:





Gold leach (48 hours) recoveries ranged from 1.6% to 77.8% while with CIL tests (also 48 hours) ranged from 70.5% to 95.9%, significantly higher than the direct leach;





Silver leach (48 hours) recoveries ranged from 19.9% to 84.1% while with CIL tests ranged from 71.6% to 87.0%, significantly higher than the direct leach;

The phase 2 POX tests on the selected composites confirmed that preg robbing occurred in direct leaching of the POX products and that CIL can increase gold and silver recoveries significantly for both the Helen and Gap samples.

The phase 2 roasting tests showed that CIL cyanidation of the calcine could increase gold and silver recoveries but were lower than expected. Diagnostic leach tests of the phase 2 calcine leach residues were completed to investigate gold deportment. The diagnostic leach test results showed:





The estimated amount of gold associated with iron oxides, ferrites or calcite in the Helen composites calcine leach residues ranged from 8.2% to 17.9% and averaged 11.0%, with the remaining gold estimated to be in siliceous gangue which ranged from 9.2% to 18.0% and averaged 12.8%;





The estimated amount of gold associated with iron oxides, ferrites or calcite in the Gap composites calcine leach residues ranged from 11.7% to 35.9%, with the remaining gold estimated to be in siliceous gangue which ranged from 2.6% to 14.0%;





The gold deportment tests show that the Helen has more gold associated with siliceous material than the Gap samples which showed more gold associated with the iron oxides, ferrites, or calcite following roasting; and





The data also suggests that the specified roasting conditions from a potential toll roasting operation may not be optimal for the Helen or Gap material.

One possible development path for the Cove project is third party processing of production through either existing roasting and calcine cyanidation or existing pressure oxidation and residue cyanidation facilities.

Premier Gold solicited two items from a prospective toll operator with both roasting and pressure oxidation (POX) processes and their associated cyanidation processes for the respective calcines or POX residues.





 Practical Mining LLC   March 26, 2025 


 Page 112

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The first item included the test protocols and test conditions for laboratory bench scale batch roasting and pressure oxidation test conditions for the 2017 metallurgical testing. The conditions provided approximate the expected operating conditions in the prospective toll operator’s roasting and POX facilities.

The second item Premier Gold solicited was terms and conditions for toll milling and treating Helen resource material. Premier Gold provided a package of Helen metallurgical data for the roasting and POX tests from the 2017 test program to the prospective toll process operator for their consideration and as the basis for toll processing resource material through either the toll operator’s roasting or POX facilities.

The test data indicates that the Helen composites were generally more amenable to roasting and calcine CIL cyanidation than POX and residue CIL cyanidation. The assay data for the Helen composites indicates that there may be some problems from some areas to meet roaster feed specifications. Onsite blending of Helen resource material to meet specifications prior to shipping to the toll processor provided that resource material is available for blending will likely be required.

Conversely, the Gap composite test data were generally more amenable to POX and residue CIL cyanidation. Again, blending would likely have to be used prior to shipping offsite to provide on specification material to the toll processor.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 113 



  10.1.4.

2021 KCA Program





 Practical Mining LLC   March 26, 2025 


 Page 114

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



In May 2020, a metallurgical test program was initiated to evaluate a lower capital cost oxidation method of Cove samples. The Cove resource does not support the capital required for a whole ore roasting operation, which includes a dry crushing and grinding circuit. Chlorination offers a lower capital cost approach but typically has higher operating costs. The purpose of the tests is to determine if chlorination provides a viable process route. Optimization testing to support process design will be required if the method is found to be a viable option.

Chlorination is a proven process that was used to oxidize sulfide minerals and deactivate active carbonaceous mineralization. This process was used in the 1980’s and 1990’s at two Nevada operations (Newmont Carlin and Jerritt Canyon, John O. Marsden, 2006). Chlorination provides a lower capital cost approach for treatment of refractory sulfide ore requiring a whole ore treatment approach (rather than concentrate). Chlorine is highly soluble in water and dissolves to form hydrochloric and hypochlorous acids. Both are strong oxidizing agents and will oxidize sulfide minerals. The mechanism for deactivating of carbonaceous mineralization is not well understood but from operational experience has been shown to be effective with organic carbon concentrations in the range of 0.5% to 1.0%.

The scope of work for the program evolved to a two-phase program:

Baseline leach and CIL tests followed by oxidation with calcium hypochlorite at ambient and elevated temperature. Oxidation products were then subjected to CIL tests.

Oxidation using chlorine gas followed by CIL tests.

The program includes testing of two Helen composite samples and two Gap composite samples:

•   G1: CSD Gap Upper Zone in Favret lithology formation with an average head grade of 11.55 g/t Au;

•   G2: CSD Gap Lower Zone in Favret lithology formation with an average head grade of 13.65 g/t Au;

•   H1: Helen upper zone with Panther Canyon and Home Station lithology formation, with generally less organic carbon than other zones with an average head grade of 9.84 g/t Au;

•   H2: Helen lower zone with Favret lithology formation, which includes previous defined metallurgical zone H2 to H5 with an average head grade of 16.13 g/t Au.

The Gap samples contained an average 0.23% arsenic and 4.4 g/t mercury while the Helen samples contained an average0.15% arsenic and 12 g/t mercury. The mercury concentrations are elevated and will require capture and abatement in the process.

The results from both phases of this program are shown in Table 10 3. Phase 1 results are based on an equivalent chlorine gas addition of 280 kg/t (140 kg/t available chlorine) and 120 kg/t added NaOH. Phase 2 results are based on 70 kg/t added chlorine gas (35 kg/t available chlorine) and 80 kg/t added NaOH. While Phase 1 was exploratory in nature, Phase 2 showed that the chlorine oxidation process for the Cove Project is feasible.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 115 



Table 10-3 Chlorination Program Test Results


     Phase 1   Phase 2

KCA

Sample

No.

   Description 

Direct

Leach

 Extraction1

(% Au)



CIL

  Recovery  

(% Au)



Ca(OCl)2

  Oxidation  

Recovery,

(% Au)



Hot

Ca(OCl)2

  Oxidation +  
Abundant

NaOH3

Recovery

(% Au)



Hot

Ca(OCl)2

Oxidation

+
  Abundant  

NaOH2

(% Au)



Hot

Chlorine

Gas

  Oxidation1 

Recovery

(% Au)

88501

A



G1

Composite

  0%   18%   51%   84%   73%   90%

88502

A



G2

Composite

  0%   10%   41%   91%   67%   77%

88503

A



H1

Composite

  25%   51%   89%   86%   80%   84%

88504

A



H2

Composite

  0%   19%   72%   92%   72%   90%

Projected  Recovery   6%   25%   63%   88%   73%   85%

Notes:

  1.

Target grind k80 = 75 µm

  2.

Target grind k80 38 µm

  3.

Target grind k80 = 20 µm

The results demonstrate the refractory nature of the samples with direct gold leach extractions of 0% in three of the four samples. CIL gold recoveries ranged from 10% to 51%, averaging 25%.



  10.1.4.1.

Phase 1 Results

Ambient chlorination with calcium hyprochlorite with 140 kg/t NaOH showed CIL gold recoveries from 41% to 89%, averaging 63%. Hot (70oC) chlorination with calcium hypochlorite and excess NaOH showed CIL gold recoveries from 84% to 92%, averaging 88%.



  10.1.4.2.

Phase 2 Results

The initial testing included calcium hypochlorite at 75oC plus excess NaOH at a slightly coarser grind the phase 2 hot tests (k80 = 38 µm instead of 20 µm). The results were inferior with CIL gold extractions ranging from 67% to 80%, averaging 73%. The next set of tests were conducted with at a coarser grind (k80 = 75 µm), with chlorine gas and lime for pH control. The results were an improvement with CIL gold extractions ranging from 77% to 90%, averaging 85%. Although not as high as the hot phase 1 tests, the coarser grind and the use of lime instead of NaOH results in a more economic process.





 Practical Mining LLC   March 26, 2025 


 Page 116

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  10.1.5.

2022 FLSmidth Program

Remaining samples from the 2021 KCA program were sent to the FLSmidth Minerals Testing and Research Center for pressure oxidation testing with bench top autoclaves. Pressure oxidation conditions included:





Grind to k80 = 70 µm.



Slurry density = 35% solids.



Trona addition = 10 kg/t.



Temperature = 195oC



Retention time = 45 minutes



Oxygen overpressure = 760 kPa

CIL tests were performed on the oxidized samples under the following conditions:





Temperature = 60oC;



Slurry density = 35% solids;



Cyanide addition = 2.5 kg/t NaCN.



Carbon concentration = 20 g/L slurry.



Retention time = 24 hours.

Table 10-42022 FLSmidth Program Test Results

The results of the testing are shown in Table 10-4.





Sample

No.

   Description

  Calc..Head  

Grade (g/t

Au)



CIL

Residue

Grade (g/t

Au)



CIL Recovery

(% Au)



S= Oxidation2

(%)

88501

A



G1

Composite

   12.28   4.79    59.6    22.9

88502

A



G2

Composite

   14.03   6.30    57.7    64.2

88503

A



H1

Composite

   9.54   1.35    90.2    0.0

88504

A



H2

Composite

   16.03   5.76    63.3    48.2



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 117 



The results are anomalous with the highest Au recovery coming from the sample with no sulphide oxidation. This sample had a baseline CIL gold extraction of 51% from the 2021 KCA program. Pressure oxidation increased baseline CIL recoveries for all samples. The Gap sample CIL recoveries are below those obtained in the 2017 SGS program while the Helen samples are roughly in line with the 2017 SGS results.



  10.2

Mineral Processing and Metallurgical Discussion

Testing programs completed demonstrate that samples from Gap and Helen zones are refractory to standard cyanide leaching. The samples showed significant levels of preg robbing from naturally occurring carbonaceous matter and refractory gold in sulfide minerals. Some samples showed better amenability to roasting while others showed better amenability to pressure oxidation. Processing of Cove production will require a facility with refractory treatment either in a new process plant or through an existing operation that can provide third party processing.



  10.2.

QP Opinion

In the opinion of the QP, the data are adequate for the purposes used in this Technical Report and the analytical procedures used in the analyses are of conventional industry practice. More work will be performed in the future to characterize the Cove deposit.

The main deleterious elements in the Cove samples are arsenic and mercury. The arsenic is encountered in the sulfide plant from arsenopyrite, which would be oxidized either by roasting or pressure oxidation. Both refractory processes are able to fix arsenic for safe disposal within tailings streams. Mercury is encountered in the cyanide leaching circuits and is recovered with specialized capture and abatement equipment within carbon elution and regeneration and gold refining areas of a process plant. The QP considers these methods of mitigation to be consistent with best industry practices.



  10.3.

Conclusions and Recommendations:

The following are the major conclusions and recommendations from the historical metallurgical test programs:





 Practical Mining LLC   March 26, 2025 


 Page 118

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  10.3.1.

Conclusions:



  1.

Head assaying for both the Helen Zone and Gap indicated that the gold in the two resources will likely be finely disseminated and not amenable to gravity gold recovery;

The mineralogy of the Helen and Gap resources differ in two significant areas, the first being that the Helen appears to be lower in arsenic content than the Gap resource and that the Gap resource appears to be lower on average in TCM and TOC than the Helen resource;

The Helen composite arsenic assays indicate that the Helen mineral resource is lower in arsenic content that the Gap resource;

The Helen and Gap resources based on the composites tested appear to be doubly refractory to conventional cyanidation and require both sulfide oxidation and passivation of active carbonaceous mineralization to significantly increase gold extractions;

Based on the composites tested the Helen Zone appear to generally be more amenable to roasting and CIL processing;

Based on the composites tested, the Gap resource appears to generally be more amenable to pressure oxidation and CIL processing;

The data set was too small to establish any clear relations between mineralogy and metal head grade and extractions for either resource although it is clear that mineralogy factors such as arsenic content and TCM or TOC are influencing extractions using either roasting and calcine cyanidation or pressure oxidation and residue cyanidation.



  10.3.2.

Recommendations



  1.

Additional metallurgical testing will be needed to thoroughly investigate the variability and viability of Helen and Gap resources to roasting and pressure oxidation with CIL cyanidation for which a program evaluating thirty to forty composites from each resource is suggested with objectives as follows:





Determine the location and number of samples required to represent the resources through geo-metallurgical analysis



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Processing and Metallurgical Testing

  Page 119 





Assess variability of the responses to roasting and calcine cyanidation across the resources;



Assess variability of the responses to pressure oxidation and residue cyanidation across the resources;



Testing should attempt to establish head grade and extraction relations for use in more detailed resource modelling;



Mineralogy impacts need to be established and geologic domains within each resource need to be determined, and;



Additional comminution data should be collected to assess variability within the resources.

The resource model should be advanced to include arsenic, TCM, TOC, mercury, lead, zinc, total copper selenium, barium, cobalt, nickel, and cadmium as these will be important for predicting grades if toll process offsite is used and potentially for estimating extractions within the resources;

The estimated cost for the suggested next phase metallurgical program is to $850,000 based on current market pricing.





 Practical Mining LLC   March 26, 2025 


 Page 120

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  11.

Mineral Resource Estimates



  11.1.

Definitions

Securities and Exchange Commission (SEC) S-K regulations (Title 17, Part 229, Items 601 and 1300 through 1305 provides the following definitions for mineral resources:

Mineral resource is a concentration or occurrence of material of economic interest in or on the Earth’s crust in such form, grade or quality, and quantity that there are reasonable prospects for economic extraction. A mineral resource is a reasonable estimate of mineralization, taking into account relevant factors such as cut-off grade, likely mining dimensions, location or continuity, that, with the assumed and justifiable technical and economic conditions, is likely to, in whole or in part, become economically extractable. It is not merely an inventory of all mineralization drilled or sampled.

Inferred mineral resource is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of limited geological evidence and sampling. The level of geological uncertainty associated with an inferred mineral resource is too high to apply relevant technical and economic factors likely to influence the prospects of economic extraction in a manner useful for evaluation of economic viability. Because an inferred mineral resource has the lowest level of geological confidence of all mineral resources, which prevents the application of the modifying factors in a manner useful for evaluation of economic viability, an inferred mineral resource may not be considered when assessing the economic viability of a mining project, and may not be converted to a mineral reserve.

Indicated mineral resource is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of adequate geological evidence and sampling. The level of geological certainty associated with an indicated mineral resource is sufficient to allow a qualified person to apply modifying factors in sufficient detail to support mine planning and evaluation of the economic viability of the deposit. Because an indicated mineral resource has a lower level of confidence than the level of confidence of a measured mineral resource, an indicated mineral resource may only be converted to a probable mineral reserve.

Measured mineral resource is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of conclusive geological evidence and sampling. The level of geological certainty associated with a measured mineral resource is sufficient to allow a qualified person to apply modifying factors, as defined in this section, in sufficient detail to support detailed mine planning and final evaluation of the economic viability of the deposit. Because a measured mineral resource has a higher level of confidence than the level of confidence of either an indicated



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 121 



mineral resource or an inferred mineral resource, a measured mineral resource may be converted to a proven mineral reserve or to a probable mineral reserve.

The mineral resource estimate presented herein is an update of the previous technical report, there were no material changes to the methodologies or assumptions within the estimation process from the previous Technical Report and no new drill data has been incorporated in this estimate.

The effective date of this mineral resource estimate is December 31, 2024. All data coordinates are referenced to UTM Zone 11N NAD83 international survey feet and quantities are given in imperial units unless indicated otherwise.

The gold and silver mineralization at the Project was estimated using Vulcan versions 9.1.8 and 11.1.0 modeling software using the Inverse Distance Cubed (ID3) estimation method. A Nearest Neighbor method was run for comparison. The estimate was performed by Practical Mining LLC.

The Cove area includes four distinct mineralized zones: CSD, GAP, Helen, and 2201. The mineralized zones follow a southeast to northwest trend beginning below the historic Cove pit and extending over 6,000 feet to the northwest. Figure 11-1 shows the location of the zones.





 Practical Mining LLC   March 26, 2025 


 Page 122

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-1 Plan View of Cove Mineralized Zones



LOGO

Zones are bounded by fault blocks. The Helen Zone lies north of the Gold Dome fault. The GAP zone lies between the Gold Dome and 110 Faults. A prospective, unmodeled zone lies between the 110 and Cay faults. The CSD and 2201 Zones lie south of the Cay fault. All zones are bounded by the CR fault to the northeast. Figure 11-2 shows the faults bounding the mineralized zones.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 123 



Figure 11-2 Section View of Cove Mineralized Zones looking NE



LOGO

The Helen Zone is divided into four sub-zones: Upper Helen, Lower Helen, Upper Helen Wedge, and Lower Helen Wedge. The Upper Helen Zone is situated in the Home Station and Favret Formations, while the Lower Helen Zone is in the Dixie Valley Formation. The JE Fault cuts through the northern one-third of the Helen Zone striking east-west and dipping 68° N. The offset forms a wedge of mineralized material between the JE and CR faults. The Helen sub-zones are shown in Figure 11-3.





 Practical Mining LLC   March 26, 2025 


 Page 124

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-3 Section View of the Helen Zone looking NW



LOGO

Mineralization included in the current estimate is characterized predominantly as disseminated Carlin style, except for the 2201 zone, which is polymetallic. Some polymetallic mineralization has been observed in the Gap Hybrid zone. Mineralization is controlled both lithologically and structurally. Disseminated mineralization tends to occur in lenticular geometries following both favorable bedding and T1-type sills, which are generally low angle. The sills are depicted in Figure 11-2 and Figure 11-3. Polymetallic vein mineralization is also lithologically and structurally controlled, generally with higher grades occupying narrow high angle structures with adjacent moderate grades lying along favorable low angle bedding. Figure 11-4 shows bedding parallel mineralization with high-angle mineralized structures in the 2201 zone.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 125 



Figure 11-4 Section View of the 2201 Zone looking NW



LOGO



  11.2.

Modeling of Lithology and Mineralization

Premier geologists prepared preliminary geologic and grade shell models for the Cove area based on drill hole logging, assay data and geologic mapping. The Premier models served as the basis for resource modelling performed by Laura Symmes, Senior Geologist Practical Mining LLC.

Lithologic contacts were modeled by connecting corresponding logged drill hole intercepts in adjacent holes to form a surface representing each geologic formation. Surfaces were also created for significant lithologies associated with mineralization, including mafic sills. Faults were modeled using drill hole intercepts and by interpreting offset of lithologic surfaces. While structural interpretation is ongoing, the authors find the current lithology and structure models to be reasonable and applied no significant edits to Premier’s work. Table 11-1 lists the database codes for the modeled lithologic surfaces.





 Practical Mining LLC   March 26, 2025 


 Page 126

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 11-1 Geology Codes




Formation Name    Abbreviation


Tuff of Cove Mine

   Tc


Augusta- Smelser Pass member

   Tras


Augusta- Panther Canyon member

   Trap


Augusta- Home Station member

   Trah


Favret

   Trfv


Dixie Valley

   Trdv


T1 Mafic Sill

   T1


T2 Mafic Sill

   T2

Gold mineralization was modelled on 100-foot vertical sections facing azimuth 315. Polygons were digitized around drill hole intercepts with significant gold assay values. Intercepts in adjacent holes were connected within a polygon so that the polygons lie generally parallel with bedding and sills. Using the lithology model as a guide, polygons on adjacent sections at similar stratigraphic depths were connected to create mineral lenses. The mineral lenses were then trimmed against ore controlling faults. To model the higher grades in the 2201 zone, very high-grade intercepts were connected with high angle polygons oriented sub-parallel to the CR fault. The remaining moderate grade intercepts were digitized parallel to bedding.

i-80’s grade model conformed to a strict 3 g/t cutoff. PM modified this to allow lower grades locally in order to maintain continuity so long as the composite grade of the interval remained above 3 g/t. Each mineral lens was assigned a unique numerical code as listed in Table 11-2.

Table 11-2 Identification Codes for 3 g/t Grade Lenses




Zone    Mineral Lens Codes


CSD_GAP

   2203, 2204, 2205, 2206, 2207, 2208, 2209


GAP Hybrid

   5001, 5002, 5003, 5004, 5005, 5006, 5007, 5008, 5009, 5010, 5011


CSD

   1101, 1104, 1105, 1106, 1107, 1108, 1109, 1112, 1113, 1114, 1115, 1116, 1117, 1118, 1119, 1120


Upper Helen

   3101, 3102, 3103, 3104, 3105, 3106, 3107


Upper Helen Wedge

   3301, 3302, 3303, 3304, 3305, 3306


Lower Helen

   3202, 3203, 3204, 3205, 3206, 3207, 3208, 3209, 3210, 3211


Lower Helen Wedge

   3400, 3401, 3402, 3403, 3404, 3405, 3406, 3407, 3408, 3409


2201 high grade

   1301, 1302, 1303



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 127 




Zone    Mineral Lens Codes


2201

   1400, 1401, 1403, 1404, 1405, 1406

Practical Mining also digitized a low grade mineral envelope at an approximate 0.2 g/t cutoff which surrounds all the zones except 2201. The later does not have sufficient data to construct a low-grade envelope. The low-grade envelope was divided by zone and assigned codes. In Figure 11-5, the low-grade halo is translucent with the 3 g/t lenses visible inside.

Figure 11-5 Low Grade Envelope



LOGO

Several areas of low grade mineralization outside the low grade mineral envelope were identified and modelled and assigned codes including suffix X. Low grade codes are listed in Table 11-3.

Table 11-3 Identification Codes for 0.2 g.t Grade Lenses




Zone    Mineral Lens Codes   


Low_CSD_GAP and Gap Hybrid

   22000


Low_CSD

   11000


Low_Upper Helen

   31000


Low_Upper Helen Wedge

   33000


Low_Lower Helen

   32000


Low_Lower Helen Wedge

   34000


Low_NE of CR Fault

   10000





 Practical Mining LLC   March 26, 2025 


 Page 128

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Zone    Mineral Lens Codes     


Low_Other

   1100X, 2200X, 3300X, 3400X

Figure 11-6 shows the modeled grade lenses and low-grade halo on a section in the GAP zone.

Figure 11-6 Section Looking AZ 315 Showing Mineralized Lenses in the GAP Zone



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 129 



  11.3.

Drill Data and Compositing



  11.3.1.

Drill Data Set

The drill data set used for the resource estimation contains 1,397 drill holes totaling 1,127,481 feet of drilling, of which 579,443 feet is RC and 548,038 feet is core. Premier has identified a subset of RC holes drilled prior to 2012 which may be affected by grade contamination, and those holes were excluded from the data set used for the estimation. The remaining RC holes correlate well with the surrounding core holes. One hole, NW-9A, was excluded due to lack of survey data.

Premier provided the drill data to Practical Mining as csv files. Gold and silver assays were converted from g/t to opt by dividing by 34.2857 in Excel, and blank values were assigned the value -99. The CSV files were then imported into a Vulcan ISIS database. A flag field was added to the ISIS database to contain numerical code of modeled lenses. Samples within the grade model polygons were flagged with the corresponding mineral lens code using the Vulcan flagging utility. The 3 g/t polygons take precedence over the low-grade polygons for lens code flagging. Of the 1,397 holes analyzed, 1,204 intersect at least one modeled grade polygon. Of these, 370 were flagged by the 3 g/t polygons and 1,195 were flagged by the low-grade polygons. An overview of drill hole and sample statistics is shown in Table 11-4.

Table 11-4 Drill Hole Summary



Data

Population

          Core        RC        Total


All Holes

   No. Holes      387        1,010        1,397
   Length Drilled (ft)      547,787.0        579,694.0        1,127,481.0
   No. Samples      74,913        101,637        176,550
   Length Sampled (ft)      430,357.5        572,744.0        1,003,101.5


Holes with

Flags for

3g Lenses 

   No. Holes      195        175        370
   Length Drilled (ft)      329,645.2        49,160.0        378,805.2
   No. Flagged Samples      1,957        1,189        3,146
   Length Flagged Samples (ft)      8,941.2        5,950.0        14,891.2


Holes with

Flags for

Low Grade 

Lenses

   No. Holes      370        825        1,195
   Length Drilled (ft)      513,909.9        463,031.0        976,940.9
   No. Flagged Samples      32,094        36,946        69,040
   Length Flagged Samples (ft)      161,085.2        187,141.5        348,226.7





 Practical Mining LLC   March 26, 2025 


 Page 130

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  11.3.2.

Compositing

Gold and silver assay values were composited into 5-foot lengths beginning at the drill hole collar. Compositing intervals were truncated and a new compositing interval was begun where the drill hole intersects a modeled grade shell. Only samples with like flags may be composited together. If the intercept length within the grade shell is less than 5 feet, the composite consists of only that length contained within the polygon. The numerical lens flag was recorded with each composite in the composite database for use in the mineral resource estimation.

The total flagged composite length is 361,800 feet from 1,204 drill holes. Composite statistics by zone are shown in Table 11-5.

Table 11-5 Composite Summary



Zone





Mineral Lens
Codes





Number of
Holes





Number of
Composites





Length of
Composites
(ft)





CSD_GAP    220X    27      327        1,429.4

GAP Hybrid    500X    27      133        500.0

CSD    110X    269      1,975        8,820.3

Upper Helen    310X    31      191        824.2

Upper Helen Wedge    330X    26      141        615.9

Lower Helen    320X    22      168        736.0

Lower Helen Wedge    340X    30      394        1,784.0

2201 high angle    130X    7      28        100.2

2201 low angle    140X    6      25        90.0

Low_CSD_GAP and Gap Hybrid    22000    157      10,050        48,039.6

Low_CSD    11000    596      33,785        166,141.7

Low_Upper Helen    31000    50      1,917        9,251.4

Low_Upper Helen Wedge    33000    43      2,278        11,052.7

Low_Lower Helen    32000    26      728        3,350.5

Low_Lower Helen Wedge    34000    25      802        3,732.5

Low_NE of CR fault    10000    295      8,518        41,468.7

Low_Other    1100X, 2200X,
3300X, 3400X
   619      13,057        63,863.5



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 131 



  11.4.

Density

Premier augmented their density data set in 2017 by submitting 29 samples from modeled 3 g/t zones to ALS for analysis. The new data includes 23 samples from the Helen and Gap zones, five samples from the 2201 zone and one sample from the CSD zone. The density data set was filtered by analysis method, and only samples analyzed using the water displacement method with wax coating were used. The data were then sorted by zone and grade, and results were averaged by zone. Results indicate that densities are similar for samples from 3 g/t grade shells and samples from low grade shells. The densities calculated for each zone are listed in Table 11-6.

Table 11-6 Density




Zone

 Density 

(ton/ft3)



 Number 

Samples



Helen

   0.0691      29


GAP and GAP

Hybrid

   0.0708      17


CSD

   0.0772      25


2201 Veins

   0.0826      7


2201 Replacement

   0.0984      13


East of CR Fault

   0.0677      Default
value



  11.5.

Statistics and Variography

Univariate statistics for gold and silver composites within the 3 g/t grade shells and low-grade shells are presented in Table 11-7 and Table 11-8 below. The composite data are not closely spaced enough to permit construction of valid variograms.





 Practical Mining LLC   March 26, 2025 


 Page 132

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 11-7 Gold Composite Statistics



Zone

No.



Samples

     Median      Max      Min      Mean

Std.



Dev.

     Variance

Upper



95% CI



Lower



95% CI



CSD      1444        0.089        20.602        0.000        0.188        0.739        0.035        0.226        0.149

GAP      342        0.180        1.616        0.007        0.288        0.276        0.079        0.318        0.259

Gap Hybrid      154        0.111        1.182        0.002        0.158        0.173        0.064        0.186        0.131

Upper Helen      225        0.133        1.570        0.002        0.205        0.228        0.053        0.235        0.175

Upper Helen Wedge      190        0.112        0.752        0.001        0.131        0.104        0.012        0.145        0.116

Lower Helen      180        0.196        3.943        0.002        0.338        0.445        0.142        0.403        0.273

Lower Helen Wedge      375        0.201        2.330        0.000        0.315        0.325        0.108        0.348        0.282

2201 Vein      103        0.119        5.320        0.006        0.315        0.597        1.041        0.430        0.200

2201 Replacement      25        0.163        1.224        0.08        0.306        0.312        0.097        0.428        0.184

Low_CSD      17010        0.009        20.602        0        0.026        0.21        0.001        0.029        0.023

Low_GAP and GAP Hybrid      6260        0.011        0.593        0        0.019        0.025        0.001        0.019        0.018

Low_Upper Helen      1822        0.012        0.835        0        0.021        0.032        0.001        0.022        0.019

Low_Upper Helen Wedge      1661        0.015        0.378        0        0.022        0.024        0.001        0.024        0.021

Low_Lower Helen      828        0.007        0.285        0        0.016        0.025        0.001        0.018        0.014

Low_Lower Helen Wedge      1280        0.011        1.347        0        0.026        0.06        0.001        0.029        0.022



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 133 



Table 11-8 Silver Composite Statistics



Zone

No.



Samples

     Median      Max      Min      Mean

Std.



Dev.

     Variance

Upper



95% CI



Lower



95% CI



CSD      521        0.852        48.673        0.000        2.396        4.391        19.281        2.773        2.019

GAP      304        0.131        5.163        0.004        0.261        0.483        0.233        0.315        0.207

Gap Hybrid      119        0.184        42.351        0.007        1.972        5.813        33.788        3.016        0.927

Upper Helen      189        0.050        4.887        0.007        0.173        0.503        0.253        0.245        0.102

Upper Helen Wedge      126        0.029        3.702        0.000        0.110        0.369        0.136        0.175        0.046

Lower Helen      523        0.058        1.397        0.000        0.091        0.115        0.013        0.101        0.081

Lower Helen Wedge      353        0.044        0.549        0.001        0.075        0.088        0.008        0.084        0.066

2201 Vein      26        1.027        2.920        0.099        1.122        0.848        0.719        1.448        0.796

2201 Replacement      25        0.653        3.987        0.102        1.043        1.142        1.304        1.49        0.595

Low_CSD      17012        0.19        71.667        0        0.64        1.891        0.002        0.669        0.612

Low_GAP and GAP Hybrid      6262        0.069        20.816        0        0.397        0.983        0.002        0.421        0.372

Low_Upper Helen      1749        0.01        4.947        0        0.046        0.177        0.002        0.054        0.038

Low_Upper Helen Wedge      1433        0.008        4.44        0        0.046        0.242        0.002        0.058        0.033

Low_Lower Helen      803        0.007        0.802        0        0.02        0.04        0.002        0.023        0.017

Low_Lower Helen Wedge      1233        0.005        1.031        0.001        0.016        0.057        0.002        0.019        0.012



  11.6.

Grade Capping

Cap grades were applied to composites with values above a statistically determined threshold. Cap grade values were determined individually for each zone, set according to the upper 95% Cl listed in Table 11-7 and Table 11-8. For the estimation, composite values exceeding the cap grade were set to the cap grade. Of the composites within the 3 g/t grade shells 6.3% were capped. Grade capping details are listed in Table 11-9.

Table 11-9 Composite Grade Capping




Zone    Grade Cap    Composites Above
Cap


Number



of Comps.

   Capped %    Average Grade  Before
Capping




Au opt





Ag opt





Au





Ag

   Au    Ag    Au opt    Ag opt

Lower Helen    1.07    0.29    14    15    168    8.3    8.9    1.61    0.49

Lower Helen Wedge    0.96    0.26    18    23    394    4.6    5.8    1.41    0.46

Upper Helen    0.65    0.49    11    10    191    5.8    5.2    0.98    1.48

Upper Helen Wedge    0.36    0.38    5    7    141    3.5    5.0    0.52    1.20

GAP Hybrid    0.48    14.93    6    7    133    4.5    5.3    1.05    23.23

GAP    0.84    0.82    16    16    327    4.9    4.9    1.20    1.86

CSD    0.43    8.84    138    199    1,975    7.0    10.1    1.61    7.30





 Practical Mining LLC   March 26, 2025 


 Page 134

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Zone    Grade Cap    Composites Above
Cap


Number



of Comps.

   Capped %    Average Grade  Before
Capping




Au opt





Ag opt





Au





Ag

   Au    Ag    Au opt    Ag opt

2201 Vein    1.56    2.70    2    2    28    7.1    7.1    3.46    2.86

2201 Replacement    0.87    3.61    2    2    25    8.0    8.0    1.05    3.82

Low_GAP    0.09    1.86    305    1,251    10,050    3.0    12.4    0.25    5.98

Low_Upper Helen    0.09    0.16    24    94    1,917    1.3    4.9    0.16    1.48

Low_Lower Helen    0.09    0.06    8    26    728    1.1    3.6    0.15    0.13

Low_Upper Helen Wedge    0.09    0.10    27    96    2,278    1.2    4.2    0.13    0.67

Low_Lower Helen Wedge    0.09    0.05    29    25    802    3.6    3.1    0.22    0.17

Low_CSD    0.09    2.56    1,333    3,745    33,785    3.9    11.1    0.37    7.30



  11.7.

Block Model

The block model origin was set at coordinate 1584315.0, 14647350.0, 3300.0 with bearing 45° to match the northwest trend of the deposit. The plunge and dip were both set to zero. The model extends 7,100 feet to the northwest, 2,400 feet to the northeast, and is 2,400 feet thick. The parent block size is 100 ft x 100 ft x 100 ft with a sub block size of 5 ft x 5 ft x 2.5 ft. The 2201 zone was assigned a sub block size of 1 ft x 1 ft x 1ft.

Variables were assigned to the model to contain gold and silver estimation values and other assigned values. The block model variables are listed in Table 11-10.

Table 11-10 Block Model Variables




Variables     Default           Type       Description

density       0    float    density

au_opt       -99    float    Gold - Grade Estimate (Ounces per Ton)

au_flag       0    byte    Gold - Estimation Flag

au_ndh       0    byte    Gold - Number Drill Holes

au_dist       0    float    Gold - Average Distance to Samples

au_ns       0    byte    Gold - Number of Samples

au_opt_nn       -99    float    Gold - Nearest Neighbor (Ounces per Ton)

au_nn_dist       0    float    Distance to nearest sample

ag_opt       -99    float    Silver - Grade Estimate (Ounces per Ton)

ag_flag       0    byte    Silver - Estimation Flag

ag_ndh       0    byte    Silver - Number Drill Holes

ag_dist         0    float    Silver - Average Distance to Samples



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 135 




Variables     Default           Type       Description

ag_ns       0    byte    Silver - Number of Samples

ag_opt_nn       -99    float    Silver - Nearest Neighbor (Ounces per Ton)

ag_nn_dist       0    float    Distance to nearest sample

aueq       -99    double    Gold Equivalence (Ounces per Ton)

agau       -99    double    Silver:Gold Ratio

mined     In situ       name    Block Status (in situ, sterile, mined)

classname     none       name    Classification (meas, ind, inf)

mii       0    byte    1 eq meas, 2 eq ind, 3 eq inf

aueng       0    float    Au Engineering

ageng       0    float    Ag Engineering

aueqeng       0    float    AuEq Engineering

zone     none       name    Zone

volume    -       predefined

xlength    -       predefined

ylength    -       predefined

zlength    -       predefined

xcentre    -       predefined

ycentre    -       predefined

zcentre    -       predefined

xworld    -       predefined

yworld    -       predefined

zworld    -         predefined





 Practical Mining LLC   March 26, 2025 


 Page 136

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  11.8.

Grade Estimation and Resource Classification

The gold and silver variables in the block model were estimated using inverse distance cubed (ID3) and nearest neighbor methods. The estimations were completed with one pass.

Anisotropic search parameters were set to the average orientation of each zone. Average orientation was determined by loading the modeled 3 g/t lenses by zone in Vulcan and visually estimating average dip and dip direction. Distances were selected based on the drill spacing of samples intercepting the lenses and on the general orientation and shape of the interpreted solids. Blocks inside of the modelled 3 g/t lenses were estimated using only composites flagged with the corresponding lens code. Blocks outside of the 3 g/t lenses were estimated using composites with the corresponding low-grade flag. Blocks lying outside the low-grade halo were not estimated. The estimation search parameters are listed in Table 11-11.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 137 



Table 11-11 Estimation Parameters



Zone

Mineral

Lens

Code

   Bearing    Plunge      Dip

Major 

Search 

Axis (ft) 



Semi- 

major 

Search 

Axis (ft) 



Minor 

Search 

Axis (ft) 

     Min
Samp
     Max
Samp

CSD_GAP    220X    315      4.8        10.3        300        300        100        1      3

GAP Hybrid    500X    315      5.0        0.0        300        300        100        1      3

CSD    110X    315      6.3        7.1        300        300        100        1      3

Upper Helen    310X    315      10.7        7.0        300        300        100        1      3

Upper Helen Wedge    330X    315      6.2        -7.4        300        300        100        1      3

Lower Helen    320X    315      0.0        0.0        300        300        100        1      3

Lower Helen Wedge    340X    315      -1.5        0.0        300        300        100        1      3

2201 high angle vein 1    1301    342      0.0        73.6        300        300        300        1      3

2201 high angle vein 2    1302    342      0.0        73.6        300        300        300        1      3

2201 high angle vein 3    1303    322      0.0        73.6        300        300        300        1      3

2201 low angle    140X    315      7.6        15.7        300        300        100        1      3

Low_CSD_GAP and Gap Hybrid    22000    315      4.8        10.3        300        300        100        1      3

Low_CSD    11000    315      6.3        7.1        300        300        100        1      3

Low_Upper Helen    31000    315      10.7        7.0        300        300        100        1      3

Low_Upper Helen Wedge    33000    315      6.2        -7.4        300        300        100        1      3

Low_Lower Helen    32000    315      0.0        0.0        300        300        100        1      3

Low_Lower Helen Wedge    34000    315      -1.5        0.0        300        300        100        1      3

Low_NE of CR fault    10000    315      0.0        0.0        300        300        100        1      3

Low_Other_1100X    1100X    315      6.3        7.1        300        300        100        1      3

Low_Other_2200X    2200X    315      4.8        10.3        300        300        100        1      3

Low_Other_3300X    3300X    315      6.2        -7.4        300        300        100        1      3

Low_Other_3400X    3400X    315      -1.5        0        300        300        100        1      3

A script was run on the estimated block model to populate the classification variable. The classification categories are indicated, inferred and none. Classification was determined based on three block model variables: au_dist, au_ndh and au_nn_dist. These three variables represent, respectively, the average distance to the composites used to estimate the grade of the block, the number of drill holes contributing to the grade of the block, and the distance to the nearest composite. The default value was defined as ‘none’, which was over-written by indicated or inferred where the required conditions were satisfied. The conditions of the classification script are listed in Table 11-12.

Table 11-12 Classification Conditions




Class

Script

Condition



au_dist

(ft)

   au_ndh

au_nn_dist

(ft)



Indicated



if



<100

   at least 2    50 or less


Inferred



elseif



<=300

   at least 2





 Practical Mining LLC   March 26, 2025 


 Page 138

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Class

Script

Condition



au_dist

(ft)

   au_ndh

au_nn_dist

(ft)



None



default



Significant parameters used in the gold and silver estimations included:



  1.

Only composites with a value of greater than or equal to zero were used;

  2.

A minimum of one and maximum of three composites were used;

  3.

Only one composite per drill hole was allowed;

  4.

Composites were selected using anisotropic distances oriented to the local dip and dip direction of the zone;

  5.

Only composites within a lens were used to estimate blocks within the lens;

  6.

Grades were capped using a top cut method; and

  7.

Gold and silver for blocks outside modelled 3 g/t and low-grade shells were not estimated.



  11.9.

Mined Depletion and Sterilization

The CSD zone lies adjacent to the historic Cove pit and was historically exploited using underground cut-and-fill and stoping methods. Part of the modelled CSD zone has been mined, and areas of in situ material near historically mined areas are rendered inaccessible. The block model includes a ‘mined’ variable which stores information identifying each block as in situ, mined or sterile. The default value is in situ. Blocks lying above the ultimate pit topography or inside the underground mine as built are defined as mined. Sterile blocks were defined using two shapes modelled in Vulcan. The first is a surface digitized 50-feet below deepest mined topography, and the second is a solid shape digitized around the underground mine as-built representing a 30-foot buffer zone. Blocks lying between the 50-foot surface and the ultimate pit topographic surface are sterile, and blocks within 30 feet of the historic underground mine are sterile. Figure 11-7 shows the sterilization surfaces in a section view of the CSD zone.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 139 



Figure 11-7 Sterilization Surfaces



LOGO



   11.10.

Model Validation



  11.10.1.

Estimation Comparison

The mean gold grades for each lens were compared against a nearest neighbor (representing declustered composites) in Table 11-13. Individual lens comparisons vary depending on sample support and grade variability. Overall, the ID3 estimate is slightly lower than the nearest neighbor estimate. Table 11-14 represents the same data for silver which shows the same general relationships.

Table 11-13 Estimate Comparison for Gold versus a Nearest Neighbor at 0 Cutoff




     ID3 Estimate     Nearest Neighbor     Mean
Vein   Mean

Std.

Dev.

    Max     Q3     Q1     Min     Mean

Std.

Dev.

    Max     Q3     Q1     Min     Diff

1101     0.186       0.056       0.284       0.245       0.136       0.089       0.193       0.077       0.27       0.27       0.102       0.051       -3.6

1104     0.143       0.076       0.416       0.188       0.089       0.01       0.148       0.102       0.416       0.216       0.081       0.007       -3.4

1105     0.172       0.079       0.43       0.218       0.12       0.002       0.172       0.105       0.43       0.245       0.105       0.002       0.0

1106     0.147       0.085       0.43       0.188       0.092       0.003       0.15       0.111       0.43       0.194       0.09       0.002       -2.0

1107     0.184       0.09       0.43       0.235       0.119       0.01       0.186       0.117       0.43       0.274       0.096       0.01       -1.1

1108     0.147       0.05       0.43       0.151       0.116       0.028       0.15       0.061       0.43       0.16       0.114       0.022       -2.0

1109     0.177       0.057       0.428       0.222       0.129       0.027       0.181       0.071       0.43       0.237       0.126       0.026       -2.2

1112     0.109       0.031       0.429       0.11       0.09       0.089       0.108       0.041       0.43       0.1       0.089       0.089       0.9





 Practical Mining LLC   March 26, 2025 


 Page 140

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




     ID3 Estimate     Nearest Neighbor     Mean
Vein   Mean

Std.

Dev.

    Max     Q3     Q1     Min     Mean

Std.

Dev.

    Max     Q3     Q1     Min     Diff

1113     0.136       0.092       0.39       0.186       0.06       0.011       0.149       0.136       0.391       0.34       0.031       0       -8.7

1115     0.115       0.101       0.43       0.166       0.037       0       0.116       0.126       0.43       0.164       0.018       0       -0.9

1116     0.134       0.068       0.43       0.164       0.092       0.006       0.129       0.088       0.43       0.161       0.073       0.006       3.9

1117     0.174       0.095       0.43       0.266       0.1       0.009       0.148       0.116       0.43       0.17       0.074       0.009       17.6

1118     0.22       0.099       0.424       0.281       0.14       0.035       0.225       0.138       0.424       0.35       0.113       0.034       -2.2

1120     0.106       0.094       0.43       0.14       0.034       0.002       0.108       0.106       0.43       0.118       0.037       0       -1.9

2203     0.146       0.076       0.347       0.151       0.099       0.097       0.145       0.09       0.347       0.138       0.097       0.097       0.7

2204     0.263       0.166       0.773       0.305       0.172       0.068       0.259       0.204       0.773       0.211       0.146       0.068       1.5

2204     0.304       0.157       0.84       0.361       0.2       0.022       0.29       0.205       0.84       0.376       0.139       0.012       4.8

2205     0.244       0.12       0.609       0.338       0.147       0.101       0.24       0.139       0.609       0.376       0.13       0.101       1.7

2206     0.263       0.192       0.84       0.267       0.156       0.039       0.272       0.221       0.84       0.273       0.145       0.039       -3.3

2207     0.342       0.215       0.84       0.479       0.16       0.031       0.339       0.266       0.84       0.538       0.127       0.031       0.9

2208     0.282       0.173       0.84       0.375       0.147       0.006       0.286       0.216       0.84       0.423       0.115       0.006       -1.4

2209     0.199       0.073       0.363       0.244       0.142       0.119       0.199       0.089       0.363       0.25       0.137       0.119       0.0

3101     0.257       0.089       0.648       0.278       0.227       0.094       0.253       0.113       0.65       0.281       0.197       0.094       1.6

3102     0.177       0.073       0.318       0.261       0.125       0.09       0.181       0.081       0.318       0.258       0.125       0.09       -2.2

3103     0.192       0.135       0.65       0.216       0.109       0.002       0.192       0.169       0.65       0.201       0.097       0.002       0.0

3104     0.167       0.077       0.449       0.178       0.13       0.003       0.168       0.098       0.449       0.195       0.104       0.003       -0.6

3105     0.407       0.172       0.65       0.561       0.284       0.106       0.406       0.236       0.65       0.65       0.222       0.106       0.2

3106     0.159       0.061       0.374       0.192       0.115       0.046       0.158       0.072       0.374       0.188       0.112       0.045       0.6

3107     0.128       0.069       0.319       0.136       0.09       0.023       0.132       0.103       0.319       0.124       0.088       0.023       -3.0

3202     0.254       0.124       0.482       0.365       0.133       0.083       0.266       0.158       0.484       0.399       0.082       0.082       -4.5

3202     0.256       0.133       0.734       0.329       0.159       0.082       0.243       0.155       0.735       0.248       0.114       0.082       5.3

3203     0.405       0.151       1.069       0.464       0.329       0.11       0.416       0.223       1.07       0.458       0.299       0.11       -2.6

3204     0.256       0.033       0.336       0.273       0.229       0.197       0.249       0.05       0.336       0.272       0.222       0.197       2.8

3205     0.6       0.344       1.07       0.954       0.257       0.118       0.625       0.445       1.07       1.07       0.138       0.118       -4.0

3206     0.418       0.28       1.07       0.608       0.168       0.004       0.413       0.358       1.07       0.649       0.116       0.004       1.2

3207     0.271       0.177       0.612       0.405       0.128       0.114       0.285       0.204       0.612       0.612       0.116       0.114       -4.9

3208     0.159       0.038       0.256       0.17       0.139       0.1       0.163       0.054       0.256       0.177       0.101       0.1       -2.5

3210     0.157       0.043       0.209       0.203       0.109       0.1       0.156       0.055       0.209       0.209       0.1       0.1       0.6

3211     0.16       0.065       0.5       0.178       0.123       0.073       0.157       0.077       0.5       0.197       0.112       0.073       1.9

3301     0.14       0.057       0.36       0.17       0.104       0.03       0.134       0.079       0.36       0.155       0.093       0.03       4.5

3302     0.102       0.069       0.298       0.167       0.018       0.006       0.111       0.091       0.305       0.138       0.018       0.006       -8.1

3303     0.125       0.054       0.34       0.126       0.099       0.031       0.121       0.064       0.34       0.133       0.087       0.025       3.3

3304     0.169       0.061       0.36       0.216       0.127       0.022       0.169       0.089       0.36       0.236       0.114       0.001       0.0

3305     0.142       0.066       0.36       0.179       0.096       0.024       0.143       0.081       0.36       0.202       0.091       0.024       -0.7

3306     0.129       0.022       0.174       0.146       0.118       0.044       0.13       0.028       0.177       0.158       0.114       0.043       -0.8

3400     0.224       0.171       0.727       0.283       0.112       0.017       0.239       0.22       0.729       0.322       0.109       0.017       -6.3

3401     0.214       0.108       0.658       0.273       0.143       0.018       0.21       0.13       0.659       0.272       0.118       0.018       1.9



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 141 




     ID3 Estimate     Nearest Neighbor     Mean
Vein   Mean

Std.

Dev.

    Max     Q3     Q1     Min     Mean

Std.

Dev.

    Max     Q3     Q1     Min     Diff

3402     0.313       0.236       0.96       0.512       0.134       0       0.322       0.272       0.96       0.574       0.106       0       -2.8

3403     0.277       0.173       0.96       0.329       0.162       0.001       0.28       0.217       0.96       0.412       0.149       0.001       -1.1

3404     0.365       0.237       0.96       0.461       0.204       0.098       0.364       0.291       0.96       0.416       0.143       0.092       0.3

3405     0.182       0.082       0.367       0.25       0.115       0.114       0.184       0.084       0.367       0.255       0.115       0.114       -1.1

3406     0.36       0.205       0.96       0.482       0.222       0.116       0.363       0.246       0.96       0.495       0.22       0.116       -0.8

3407     0.267       0.17       0.96       0.378       0.136       0.056       0.273       0.226       0.96       0.42       0.104       0.056       -2.2

3408     0.146       0.048       0.224       0.177       0.113       0.008       0.141       0.052       0.224       0.167       0.099       0.008       3.5

3409     0.112       0.021       0.158       0.125       0.107       0.057       0.112       0.028       0.166       0.129       0.114       0.057       0.0

5001     0.3       0.068       0.407       0.322       0.239       0.202       0.302       0.078       0.407       0.322       0.202       0.202       -0.7

5002     0.165       0.092       0.48       0.193       0.109       0.055       0.167       0.115       0.48       0.209       0.108       0.055       -1.2

5003     0.179       0.04       0.413       0.191       0.153       0.114       0.177       0.055       0.415       0.179       0.153       0.104       1.1

5004     0.14       0.067       0.4       0.179       0.097       0.041       0.145       0.089       0.4       0.181       0.097       0.041       -3.4

5005     0.202       0.144       0.48       0.202       0.107       0.093       0.195       0.154       0.48       0.217       0.098       0.092       3.6

5006     0.186       0.096       0.48       0.201       0.119       0.091       0.18       0.128       0.48       0.159       0.094       0.091       3.3

5007     0.165       0.095       0.465       0.207       0.104       0.022       0.166       0.118       0.466       0.206       0.099       0.02       -0.6

5008     0.18       0.085       0.479       0.21       0.113       0.078       0.184       0.112       0.48       0.201       0.111       0.077       -2.2

5009     0.108       0.01       0.133       0.114       0.101       0.095       0.107       0.013       0.133       0.103       0.1       0.095       0.9

5010     0.17       0.079       0.447       0.196       0.123       0.068       0.167       0.107       0.448       0.153       0.11       0.068       1.8

5011     0.299       0.035       0.348       0.321       0.286       0.148       0.293       0.073       0.382       0.382       0.245       0.075       2.0

Table 11-14 Estimate Comparison for Silver versus a Nearest Neighbor at 0 Cutoff




     ID3 Estimate     Nearest Neighbor     Mean
Vein   Mean

Std.

Dev.

    Max     Q3     Q1     Min     Mean

Std.

Dev.

    Max     Q3     Q1     Min     Diff

1101     1.759       1.219       5.8       2.449       0.854       0.07       1.422       1.628       8.165       2.416       0.07       0.07       23.7

1104     3.145       2.067       8.84       4.673       1.413       0       2.988       2.595       8.84       4.832       0.832       0       5.3

1105     1.21       1.643       8.84       1.676       0.05       0       1.213       2.028       8.84       1.521       0.04       0       -0.2

1106     2.329       2.498       8.84       4.026       0.216       0       2.42       2.891       8.84       3.653       0.245       0       -3.8

1107     0.33       0.289       1.437       0.537       0.056       0.004       0.335       0.34       1.437       0.5       0.047       0.004       -1.5

1108     2.817       1.191       6.683       3.566       1.991       0.261       2.968       1.558       6.683       3.652       1.657       0.214       -5.1

1109     2.871       1.698       8.653       4.016       1.282       0.065       2.831       1.922       8.653       3.907       1.15       0.06       1.4

1112     1.627       2.105       8.659       1.799       0.445       0.12       1.74       3.026       8.662       0.455       0.455       0.12       -6.5

1113     2.098       1.383       5.621       2.726       0.968       0.203       1.807       1.874       5.63       1.801       0.65       0.2       16.1

1115     1.882       2.733       8.84       1.782       0.252       0       1.852       2.921       8.84       1.651       0.166       0       1.6

1116     0.905       1.61       8.834       0.742       0.094       0       0.887       1.806       8.84       0.39       0.071       0       2.0

1117     0.949       0.975       8.84       0.824       0.484       0.152       0.807       1.075       8.84       0.961       0.311       0.151       17.6

1118     1.731       1.98       8.453       1.635       0.638       0.098       1.744       2.754       8.453       1.1       0.3       0       -0.7

1120     1.732       1.696       8.681       2.328       0.625       0.01       1.705       2.401       8.84       2.395       0.14       0.01       1.6

2203     0.051       0.022       0.087       0.07       0.041       0.007       0.053       0.025       0.087       0.087       0.044       0.007       -3.8





 Practical Mining LLC   March 26, 2025 


 Page 142

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




      ID3 Estimate      Nearest Neighbor      Mean
Vein    Mean      Std.
Dev.
     Max      Q3      Q1      Min      Mean      Std.
Dev.
     Max      Q3      Q1      Min      Diff

2204       0.264        0.194        0.805        0.336        0.114        0.012        0.262        0.215        0.805        0.332        0.107        0.012      0.8%

2204      0.108        0.082        0.369        0.12        0.056        0.009        0.104        0.108        0.369        0.106        0.04        0.007      3.8%

2205      0.236        0.217        0.82        0.347        0.067        0.016        0.245        0.254        0.82        0.305        0.04        0.016      -3.7%

2206      0.126        0.089        0.506        0.152        0.069        0.005        0.128        0.101        0.506        0.168        0.059        0.005      -1.6%

2207      0.236        0.186        0.82        0.294        0.107        0.016        0.237        0.222        0.82        0.317        0.076        0.016      -0.4%

2208      0.214        0.171        0.82        0.263        0.094        0.007        0.217        0.211        0.82        0.298        0.062        0.007      -1.4%

2209      0.49        0.2        0.82        0.688        0.365        0.075        0.503        0.269        0.82        0.82        0.356        0.075      -2.6%

3101      0.062        0.031        0.197        0.094        0.044        0.02        0.061        0.038        0.207        0.097        0.04        0.02      1.6%

3102      0.08        0.035        0.176        0.113        0.046        0.02        0.078        0.044        0.176        0.115        0.04        0.02      2.6%

3103      0.111        0.107        0.49        0.159        0.029        0.007        0.112        0.139        0.49        0.159        0.02        0.007      -0.9%

3104      0.08        0.089        0.49        0.086        0.03        0.007        0.081        0.108        0.49        0.096        0.026        0.007      -1.2%

3105      0.22        0.115        0.417        0.316        0.111        0.047        0.222        0.158        0.417        0.361        0.055        0.047      -0.9%

3106      0.157        0.111        0.49        0.211        0.072        0.007        0.15        0.14        0.49        0.222        0.035        0.007      4.7%

3107      0.216        0.195        0.49        0.439        0.016        0.007        0.205        0.234        0.49        0.49        0.009        0.007      5.4%

3202      0.017        0.02        0.143        0.021        0.007        0.001        0.006        0.034        0.265        0.001        0        0      183.3%

3202      0.028        0.023        0.106        0.039        0.012        0        0.028        0.028        0.106        0.058        0.008        0      0.0%

3203      0.094        0.07        0.29        0.138        0.033        0.012        0.091        0.093        0.29        0.1        0.012        0.012      3.3%

3204      0.088        0.027        0.142        0.112        0.063        0.047        0.084        0.043        0.16        0.125        0.047        0.047      4.8%

3205      0.126        0.071        0.29        0.153        0.071        0.044        0.128        0.091        0.29        0.123        0.05        0.044      -1.6%

3206      0.144        0.068        0.29        0.192        0.09        0.007        0.143        0.088        0.29        0.23        0.071        0.007      0.7%

3207      0.121        0.068        0.251        0.166        0.076        0.015        0.129        0.081        0.251        0.251        0.093        0.015      -6.2%

3208      0.085        0.05        0.213        0.094        0.055        0.035        0.086        0.061        0.213        0.09        0.058        0.035      -1.2%

3210      0.02        0.016        0.041        0.038        0.002        0        0.02        0.021        0.041        0.041        0        0      0.0%

3211      0.046        0.013        0.086        0.052        0.038        0.025        0.046        0.015        0.086        0.05        0.041        0.025      0.0%

3301      0.046        0.021        0.122        0.063        0.026        0        0.046        0.028        0.122        0.063        0.017        0      0.0%

3302      0.025        0.015        0.048        0.041        0.01        0        0.025        0.018        0.049        0.043        0.007        0      0.0%

3303      0.096        0.109        0.38        0.104        0.025        0.006        0.094        0.12        0.38        0.093        0.014        0.006      2.1%

3304      0.072        0.078        0.38        0.128        0.007        0        0.076        0.099        0.38        0.152        0.001        0      -5.3%

3305      0.053        0.05        0.38        0.069        0.018        0        0.054        0.065        0.38        0.077        0.009        0      -1.9%

3306      0.108        0.141        0.38        0.251        0.005        0.001        0.111        0.152        0.38        0.306        0.001        0.001      -2.7%

3400      0.023        0.024        0.129        0.037        0.003        0        0.025        0.03        0.129        0.044        0.002        0      -8.0%

3401      0.052        0.049        0.245        0.07        0.012        0.001        0.05        0.056        0.245        0.064        0.007        0.001      4.0%

3402      0.07        0.069        0.26        0.134        0.009        0        0.075        0.081        0.26        0.152        0.007        0      -6.7%

3403      0.056        0.036        0.26        0.061        0.034        0.001        0.054        0.044        0.26        0.061        0.023        0.001      3.7%

3404      0.109        0.063        0.26        0.135        0.071        0.001        0.109        0.08        0.26        0.136        0.052        0.001      0.0%

3405      0.046        0.005        0.057        0.047        0.04        0.04        0.046        0.005        0.057        0.05        0.04        0.04      0.0%

3406      0.074        0.051        0.26        0.087        0.045        0.003        0.074        0.058        0.26        0.082        0.053        0.003      0.0%

3407      0.084        0.063        0.26        0.125        0.035        0.009        0.087        0.083        0.26        0.143        0.02        0.009      -3.4%

3408      0.044        0.024        0.102        0.053        0.021        0.007        0.042        0.028        0.102        0.044        0.017        0.007      4.8%



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 143 




      ID3 Estimate      Nearest Neighbor      Mean
Vein    Mean      Std.
Dev.
     Max      Q3      Q1      Min      Mean      Std.
Dev.
     Max      Q3      Q1      Min      Diff

3409       0.039        0.037        0.22        0.037        0.021        0.009        0.04        0.053        0.26        0.035        0.015        0.009      -2.5%

5001      0.335        0.204        0.639        0.543        0.133        0.077        0.339        0.267        0.639        0.639        0.121        0.077      -1.2%

5002      0.671        0.776        3.091        0.732        0.167        0.064        0.67        0.96        3.091        0.612        0.153        0.059      0.1%

5003      1.721        2.195        7.508        2.337        0.091        0.055        1.812        2.654        7.508        1.491        0.088        0.038      -5.0%

5004      1.671        3.361        14.597        1.464        0.153        0.044        1.73        4.021        14.93        0.449        0.125        0.043      -3.4%

5005      1.595        3.085        14.929        0.842        0.076        0.016        1.256        3.774        14.93        0.292        0.029        0.016      27.0%

5006      0.425        0.738        4.802        0.427        0.07        0.038        0.377        0.916        4.87        0.56        0.062        0.038      12.7%

5007      1.023        0.586        3.419        1.465        0.544        0.081        0.976        0.962        3.439        1.123        0.181        0.08      4.8%

5008      1.594        3.097        14.93        0.838        0.109        0.053        1.462        3.343        14.93        0.72        0.108        0.053      9.0%

5009      0.088        0.065        0.237        0.144        0.024        0.008        0.093        0.081        0.237        0.174        0.013        0.007      -5.4%

5010      0.318        0.322        1.576        0.329        0.137        0.031        0.317        0.462        1.578        0.226        0.12        0.031      0.3%

5011      1.979        0.473        2.945        2.369        1.596        1.003        2.092        1.646        3.501        3.501        0.174        0.164      -5.4%



  11.10.2.

Visual Comparison

On a local scale, model validation can be confirmed by the visual comparison of block grades to composite grades. Figure 11-8 through Figure 11-11 show typical cross sections where the block and drill color schemes are identical.

Figure 11-8 Comparison of Composite and Estimated Block Gold Grades, Helen Zone

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 144

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-9 Comparison of Composite and Estimated Block Gold Grades, Gap Zone



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 145 



Figure 11-10 Comparison of Composite and Estimated Block Gold Grades, CSD Zone



LOGO

Figure 11-11 Comparison of Composite and Estimated Block Gold Grades, 2201 Zone



LOGO





 Practical Mining LLC   March 26, 2025 


 Page 146

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  11.10.3.

Swath Plots

Further spatial model validation is provided by swath plots of individual lenses. Swath plots for a typical lens from each zone are presented in Figure 11-12 through Figure 11-19. These plots compare the average grade from the estimation to the NN from within regularly spaced swaths or slices through the lens in three dimensions (along strike, along width and vertically). Examination of the swath plots shows good agreement among the gold and silver estimation values.

Figure 11-12 Gold Swath Plots of Helen Zone 3103



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 147 



Figure 11-13 Silver Swath Plots of Helen Zone 3103

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 148

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-14 Gold Swath Plots of Gap Zone 2208

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 149 



Figure 11-15 Silver Swath Plots of Gap Zone 2208

LOGO

Figure 11-16 Gold Swath Plots of CSD Zone 1106

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 150

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-17 Silver Swath Plots of CSD Zone 1106

LOGO

Figure 11-18 Gold Swath Plots of 2201 Zone 1302

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 151 



Figure 11-19 Silver Swath Plots of 2201 Zone 1302

LOGO



  11.10.4.

Model Smoothing Checks – Grade Tonnage Curves

A final model validation check can be made by examining the grade tonnage distribution for the estimation, which is illustrated in Figure 11-20 through Figure 11-23. The grade tonnage curve is used to describe the tons and grade that may be present above a cutoff for mining. Smoothing in the estimate, the spacing of the informing samples, and the continuity of grades within the vein all affect the shape of the estimated grade tonnage curve. Above a 0.1 opt gold cut-off grade the curve shows gradually increasing grade and decreasing tonnage as the cut-off grade is increased.





 Practical Mining LLC   March 26, 2025 


 Page 152

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 11-20 Helen Zone Grade Tonnage Plots

LOGO

Figure 11-21 Gap Zone Grade Tonnage Plots

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 153 



Figure 11-22 CSD Zone Grade Tonnage Plots

LOGO

Figure 11-23 2201 Zone Grade Tonnage Plots

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 154

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  11.11.

Factors That May Affect Mineral Resources

Areas of uncertainty that may materially impact the Mineral Resource Estimates include:





Changes to long term metal price assumptions.





Changes to the input values for mining, processing, and G&A costs to constrain the estimate.





Changes to local interpretations of mineralization geometry and continuity of mineralized Domains.





Changes to the density values applied to the mineralized zones.





Changes to metallurgical recovery assumptions.





Variations in geotechnical, hydrogeological and mining assumptions.





Changes to assumptions with an existing agreement or new agreements.





Changes to environmental, permitting, and social license assumptions.





Logistics of securing and moving adequate services, labor, and supplies could be affected by epidemics, pandemics and other public health crises.



  11.12.

Reasonable Prospects for Economic Extraction

S-K 1300 requires mineral resources demonstrate “Reasonable Prospects for Economic Extraction” (RPEE). Stope optimizer software is well suited to meet this requirement. The software will produce stope designs that meet minimum minable geometric shapes that exceed the cutoff grade. These shapes will include necessary low grade or waste dilution included with the stope design.

Cove mineral resources are defined by a mining geometry consistent with the drift and fill or drift and bench mining methods chosen. The dimensions of a minimum minable stope cross section are 20 feet wide x 15 feet high. Individual stope lengths can vary from a minimum of 20 feet to a maximum of 100 feet.



  11.12.1.

QP Opinion

Practical Mining is not aware of any environmental, legal, title, taxation, socioeconomic, marketing, political, or other relevant factors that would materially affect the estimation of Mineral Resources that are not discussed in this Technical Report.

Practical Mining is of the opinion that the Mineral Resources for the Project, which were estimated using industry accepted practices, have been prepared and reported using S-K 1300 definitions.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mineral Resource Estimates

  Page 155 



Technical and economic parameters and assumptions applied to the Mineral Resource Estimate are based on parameters received from i-80 and reviewed by Practical Mining to determine if they were appropriate.

The QP considers that all issues relating to all relevant technical and economic factors likely to influence the prospect of economic extraction can be resolved with further work.



  11.13.

Mineral Resources

Cove mineral resources in each zone are tabulated in Table 11-15. The cutoff grade for mineral resources varies by process type and estimated recovery. It is anticipated that total gold production will be limited by mine capacity and cut off grades will range from a low of 0.112 Au opt to a high of 0.155 Au opt. Details of Cutoff grade estimation are given in section 18.4.

Table 11-15 Summary of Cove Mineral Resources at the End of the Fiscal Year Ended December 31, 2024

      Tons
(000)


Tonnes

(000)



Au

(opt)



Au

g/t



Ag

(opt)



Ag

(g/t)



Au ozs

(000)



Ag ozs

(000)


Indicated Mineral Resource


Helen

   743      674      0.271      9.3      0.074      2.6      201      55


Gap

   280      254      0.219      7.5      0.239      8.9      61      72


CSD

   275      249      0.175      6.0      1.603      55.0      48      441

Total Indicated    1,298      1,177      0.239      8.2      0.438      15.0      310      568

Inferred Mineral Resource


Helen

   1,743      1,582      0.245      8.4      0.083      2.9      427      146


Gap

   2,229      2,022      0.244      8.4      0.262      9.0      543      585


CSD

   319      290      0.173      5.9      1.685      57.8      55      538


2201

   168      153      0.780      26.7      1.016      34.8      131      171

Total Inferred    4,459      4,047      0.259      8.9      0.323      11.1      1,156      1,439

Notes:

  1.

Mineral resources have been estimated at a gold price of $2,175 per troy ounce and a silver price of 27.25 per troy ounce. Refer to Section 16.1 for a discussion on metal pricing;

  2.

Mineral resources have been estimated using gold metallurgical recoveries ranging from 73.2% to 93.3% for roasting and 78.5% to 95.1 % for pressure oxidation;

  3.

Roaster cutoff grades range from 4.15 to 5.29 Au g/t (0.121 to 0.154 opt) and pressure oxidation cutoff grades range from 3.83 to 4.64 Au g/t (0.112 to 0.135 opt);

  4.

The effective date of the mineral resource estimate is December 31, 2024;

  5.

Mineral resources, which are not mineral reserves, do not have demonstrated economic viability. The estimate of mineral resources may be materially affected by environmental, permitting, legal, title, socio-political, marketing, or other relevant factors;

  6.

An inferred mineral resource is that part of a mineral resource for which quantity and grade or quality are estimated on the basis of limited geological evidence and sampling. Geological evidence is sufficient to imply but not verify geological and grade or quality continuity. An inferred mineral resource has a





 Practical Mining LLC   March 26, 2025 


 Page 156

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





lower level of confidence than that applying to an indicated mineral resource and must not be converted to a mineral reserve. It is reasonably expected that the majority of inferred mineral resources could be upgraded to indicated mineral resources with continued exploration; and

  7.

The reference point for mineral resources is in situ.

12. Mineral Reserve Estimates

The Cove Project does not have any Mineral Reserves.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 157 



13. Mining Methods



  13.1.

Mine Development



  13.1.1.

Access Development

Underground access to the mining areas will begin with a portal on the North side of the existing pit and ramp down. Initial work will consist of 4,557 feet of decline from the portal down to approximately the 4600-foot elevation and 889 feet of drill laterals. The drill laterals are located directly above the Helen and Gap deposits. (Figure 13-1)

Figure 13-1 Exploration Development

LOGO

The decline will serve as a starting point for subsequent development and a portion of the drill cross cuts will later serve as the part of the main ventilation intake. Primary access drifts are designed 15 feet wide and 17.5 feet high to permit 30-ton haulage trucks and provide a large cross section for ventilation. Drift gradients will vary from – 15% to + 15% to reach the desired elevation. Secondary drifts, spiral ramps and vertical raises will connect the haulage drifts to provide a pathway for ventilation to the surface and serve as a secondary escape way (Figure 13-2).





 Practical Mining LLC   March 26, 2025 


 Page 158

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 13-2 Plan view showing portal, main haulages, and two raises to surface

LOGO



  13.1.2.

Ground Support

The ground conditions at the Project are typical of the northern Nevada extensional tectonic environment. Joint spacing varies from a few inches to a foot or more. It is expected that Swellex rock bolts along with welded wire mesh will be able to control all conditions encountered during decline development and stoping. Shotcrete will also be liberally applied as needed to prevent long-term deterioration of the rock mass. Under more extreme conditions, resin anchor bolts, or cable bolts can be used to supplement the primary support. Steel sets and spiling may also be used to support areas with the most severe ground conditions.

Project geologists have recorded core recovery and Rock Quality Designation (RQD) as part of their normal core logging process. Figure 13-3 summarizes RQD for each formation in the mining horizon. RQD values from 30% to the low 40% range are typical for mines in the area. RQD values are also dependent on drill orientation relative to the major joint sets and can vary widely.

The Modified Rock Mass Rating system proposed by Jakubec and Laubscher (2000) provides for additional characteristics to be considered in addition to RQD. These include filling material, joint waviness, alteration, weathering and the presence of water. A selection of core holes in the resource delineation program should be logged with the MRMR system to allow comprehensive classification of the rock mass.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 159 



Figure 13-3 Formation RQD

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 160

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Joint set orientation relative to the mine opening geometry is the most significant factor in opening stability in north-east Nevada. In conjunction with the resource delineation program, Acoustic Tele Viewer logging should be obtained to determine joint orientation for each domain to optimize mine opening orientation and estimate support requirements.



  13.1.1.

Ventilation and Secondary Egress

Mechanized underground mining relies heavily on diesel equipment to extract the mineralized material and waste rock and to transport backfill to the stopes. Diesel combustion emissions will require substantial amounts of fresh ventilation air to remove the diesel exhaust and maintain a healthy working environment. A combination of the main access drifts and vertical raises to the surface are arranged in a manner to provide a complete ventilation circuit capable of supplying the mine with 500,000 cubic feet per minute (CFM) of fresh air. Air movement is facilitated by primary ventilation fans placed at the surface and underground in strategic locations. Small auxiliary fans and ducting will draw primary ventilation air directly into the working faces.

Figure 13-4 Ventilation Schematic

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 161 



Secondary egress will be provided by installing a personnel hoist with a capsule capable of holding up to four people. The hoist will be located at the surface of the exhasut ventilation raise.



  13.1.2.

Dewatering

The dewatering wells will provide the majority of mine dewatering. Small localized inflows will be captured at sumps located strategically throughout the mine and pumped to the surface where it will be commingled with the water from the dewatering wells.



  13.2.

Mining Methods

Due to the mostly flat geometry of the ore lenses, all planned production mining will be completed using drift and fill mining. The final choice of mining method will depend upon the geometry of the stope block, proximity to main access ramps, ventilation and escape routes, the relative strength or weakness of the mineralized material and adjacent wall rock, and finally the value or grade of the mineralized material. The choice of mining method will not be finalized until after the stope delineation and definition drilling is completed. The drift and fill method is discussed briefly in the following paragraphs.



  13.2.1.

Drift and Fill

Drift and Fill is a very selective mining method. A drift and fill stope is initiated by driving a waste crosscut from the access ramp to the ore. The initial ore drift is driven at planned 13-feet wide by 13-feet high dimensions, with gradient varying between +/-20% to follow the geometry of the mineralization. The minimum cut and fill drift height is eight feet to minimize dilution on the thinner mineralized lenses. Once the initial drift is driven, floor may be pulled and/or back may be breasted down to capture the full thickness of the lens. Where mining is planned adjacent to the drift, it will be backfilled with CRF prior to mining the subsequent drifts. (Figure 13-5)





 Practical Mining LLC   March 26, 2025 


 Page 162

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 13-5 Depiction of Drift and Fill method

LOGO



  13.3.

Underground Labor

Approximately 5,270 feet of development will be undertaken in 2022 and 2023 to provide access for underground delineation and exploration drilling. Underground workforce requirements for this early development phase of the Project are estimated in Table 13-1. Following a positive production decision in 2024, production will increase and peak underground workforce requirements for the Project are presented in Table 13-2. This estimate was prepared using productivity rates typical for large-scale mechanized mining in North America. The Project will operate 24 hours per day seven days per week. Project operations workforce will be divided into four crews scheduled to work 14 out of every 28 days.

Table 13-1 Underground Workforce 2028 through 2029


Job Classification     Count 


Miners

   8


Mechanics

   4


Supervision

   2


Technical Staff

   8


Manager

   1


Total

   23



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 163 



Table 13-2 Peak Underground Workforce beginning 2030


Job Classification     Count 


Miners

   80


Mechanics/Electricians

   20


Supervision

   8


Technical Staff

   16


Manager

   1


Total

   125



  13.4.

Mobile Equipment Fleet

During the early exploration phase, capital development drifting will average 10-15 feet per day from 2022 into 2023. Following a positive production decision, ore production will begin in 2024 and ramp up to the steady state rate of 1,250 tpd. Mine development will follow the water level drawdown opening new production areas to sustain production. Table 13-3 lists the mining fleet necessary to achieve the development goals during the delineation drilling. Table 13-4 lists the mining fleet necessary to achieve the development and production goals for peak mining levels.

Table 13-3 Underground Mobile Equipment and Support Equipment for Exploration Development Phase


Description      Quantity  


6-Yd LHD

   1


30-T Haul Truck

   1


Jumbo Drill

   1


Bolter

   1


Fork Lift

   1


Lube Truck

   1


Grader

   1


Emergency Rescue

   1


Tractor

   2


UTV

   1

Table 13-4 Underground Mobile Equipment and Support Equipment for Peak Production Mining


Description      Quantity  


6-Yd LHD

   6


30-T Haul Truck

   8


Jumbo Drill

   4


Bolter

   4





 Practical Mining LLC   March 26, 2025 


 Page 164

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Description      Quantity  


Remix Truck

   2


Cement Pump

   2


Fork Lift

   2


Lube Truck

   1


Grader

   1


Emergency Rescue

   1


Heavy Duty Pickup

   1


Tractor

   3


UTV

   4



  13.5.

Mine Plan

The productivities of Table 13-5 were used to develop the production plan. The production plan is limited by overall production rates. Assuming a positive production decision in 2027, development and production rates will increase as headings become available, eventually reaching a maximum rate of 100 total feet per day and 1,300 tons of mineralized material production per day. At these rates, the mine plan is exhausted in 2036. The mine plan is summarized in Table 13-6. The production profile over the life of mine is shown in Figure 13-6.

Table 13-5 Heading Productivity



Heading Type

   Units    Daily Rate 


Primary Capital Development Drift

   Feet/Day      12


Secondary Capital Development Drift

   Feet/Day      10


Raise Bore

   Feet/Day      10


Drop Raise

   Feet/Day      15


Ore Drift Development

   Feet/Day      10


Floor Pulls

   Ton/Day      300


Breast Downs

   Ton/Day      100


Long Hole Stoping

   Ton/Day      500


Backfill

   Ton/Day      500

Table 13-6 Annual Production and Development Schedule (Including Inferred Mineral Resource)

     Calendar Year     2028      2029      2030      2031      2032      2033      2034      2035      2036      Total 
           Mineralized Material Mined
    Mineralization Mined (000’s Tons)    -    155.7    170.1    471.7    445.1    486.3    410.8    430.2    270.8    2840.7

  

  Gold Grade (Ounce/Ton)    -    0.268    0.297    0.331    0.339    0.333    0.283    0.284    0.327    0.313
    Silver Grade (Ounce/Ton)    -    0.106    0.113    0.080    0.111    0.318    0.261    0.201    0.194    0.184
    Contained Gold (000’s Ounces)    -    41.8    50.5    156.0    150.8    162.1    116.3    122.1    88.4    888.1



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 165 



     Calendar Year     2028      2029      2030      2031      2032      2033      2034      2035      2036      Total 

  

  Contained Silver (000’s Ounces)    -    16.5    19.2    38.0    49.5    154.7    107.1    86.5    52.6    524

    Marginal Mineralization Mined (000’s Tons)    -    10.0    2.8    18.0    28.8    12.4    12.2    7.6    16.9    108.6
    Gold Grade (Ounce/Ton)    -    0.092    0.089    0.108    0.105    0.103    0.118    0.124    0.119    0.107
    Silver Grade (Ounce/Ton)    -    0.029    0.042    0.028    0.039    0.188    0.155    0.110    0.076    0.077
    Contained Gold (000’s Ounces)    -    0.9    0.2    1.9    3.0    1.3    1.4    0.9    2.0    11.8
    Contained Silver (000’s Ounces)    -    0.3    0.1    0.5    1.1    2.3    1.9    0.8    1.3    8.4

    Total Mineralization Mined (000’s Tons)    -    165.7    172.9    489.7    473.9    498.6    423.0    437.8    287.7    2949.3
    Gold Grade (Ounce/Ton)    -    0.257    0.294    0.323    0.325    0.328    0.278    0.281    0.314    0.305
    Silver Grade (Ounce/Ton)    -    0.101    0.112    0.079    0.107    0.315    0.258    0.199    0.187    0.180
    Contained Gold (000’s Ounces)    -    42.7    50.7    157.9    153.9    163.3    117.8    123.1    90.4    899.8
    Contained Silver (000’s Ounces)    -    16.8    19.3    38.5    50.7    157.0    108.9    87.3    53.9    532.4
         Production Mining
    Stope Development and Drift and Fill Mining (000’s Tons)    -    139.5    140.9    360.9    398.0    387.5    337.2    365.0    196.6    2,325.6
    Bench Mining (000’s Tons)         26.2    32.0    128.8    75.9    111.1    85.8    72.8    91.0    623.7
    Mineralization Production Rate (tpd)    -     454    474    1,342    1,295    1,366    1,159    1,200    786    897
         Backfill
    Total CRF Backfill (000’s Tons)    -    108.7    113.5    321.4    311.0    327.2    277.6    287.3    188.8    1,935.5
         Waste Mining
    Expensed Waste (000’s Tons)    -    37.2    13.5    46.1    45.2    27.0    32.1    34.4    13.7    249.3
    Primary Capital Drifting (Feet)    -    9,352    4,036    1,859    4,799    265    1,386              21,698
    Secondary Capital Drifting (Feet)    200    1,194    855    574    829    39    396              4,086
    Capital Raising (Feet)    -    934    578    241    264    -    1,727              3,744
    Capitalized Mining (000’s Tons)    3.5    210.3    95.1    43.1    107.7    4.9    49.8              514.4

Total Tons Mined (000’s Tons)

   3.5    413.2    281.5    579.0    626.8    530.5    504.9    472.2    301.4    3,713.0

Mining Rate (tpd)

   10    1,132    771    1,586    1,713    1,453    1,383    1,294    823    1,129





 Practical Mining LLC   March 26, 2025 


 Page 166

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 13-6 Production Profile (Including Inferred Mineral Resources)



LOGO

The Helen deposit mineral resource contains 70% inferred mineral resources and the Gap deposit contains 89% inferred mineral resources. The mining schedule presented in Table 13-7 is derived by factoring the full mine plan containing both inferred and indicated mineral resources. Adjustments to productivity or recalculation of costs have not been performed. Capital development mining is identical in both cases. The without inferred mineral resource mine plan is depicted in Table 13-7 and Figure 13-7.

Table 13-7 Annual Production and Development Schedule (Excluding Inferred Mineral Resource)

     Calendar Year     2028      2029      2030      2031      2032      2033      2034      2035      2036      Total 

     Mineralized Material Mined 46.5    50.8    141.0    104.0    77.9    54.5    57.4    30.2

  

  Mineralization Mined (000’s Tons)    -    46.5    50.8    141.0    104.0    77.9    54.5    57.4    30.2    562.4
    Gold Grade (Ounce/Ton)    -    0.268    0.297    0.331    0.345    0.346    0.295    0.307    0.327    0.321
    Silver Grade (Ounce/Ton)    -    0.106    0.113    0.080    0.106    0.254    0.237    0.190    0.194    0.147
    Contained Gold (000’s Ounces)    -    12.5    15.1    46.6    35.9    27.0    16.1    17.6    9.9    180.6
    Contained Silver (000’s Ounces)    -    4.9    5.7    11.3    11.0    19.8    12.9    10.9    5.9    82.5




 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Mining Methods

  Page 167 



     Calendar Year     2028      2029      2030      2031      2032      2033      2034      2035      2036      Total 
    Marginal Mineralization Mined (000’s Tons)    -    3.0    0.8    5.4    7.5    1.9    1.4    0.9    1.9    22.7
    Gold Grade (Ounce/Ton)    -    0.092    0.089    0.108    0.108    0.110    0.118    0.120    0.119    0.107
    Silver Grade (Ounce/Ton)    -    0.029    0.042    0.028    0.043    0.155    0.155    0.103    0.076    0.058
    Contained Gold (000’s Ounces)    -    0.3    0.1    0.6    0.8    0.2    0.2    0.1    0.2    2.4
    Contained Silver (000’s Ounces)    -    0.1    0.0    0.1    0.3    0.3    0.2    0.1    0.1    1.3


  

  Total Mineralization Mined (000’s Tons)    -    49.5    51.7    146.4    111.5    79.8    55.9    58.3    32.1    585.1
    Gold Grade (Ounce/Ton)    -    0.257    0.294    0.323    0.329    0.341    0.291    0.304    0.314    0.313
    Silver Grade (Ounce/Ton)    -    0.101    0.112    0.079    0.102    0.252    0.235    0.188    0.187    0.143
    Contained Gold (000’s Ounces)    -    12.8    15.2    47.2    36.7    27.2    16.3    17.7    10.1    183.1
    Contained Silver (000’s Ounces)    -    5.0    5.8    11.5    11.4    20.1    13.2    11.0    6.0    83.8
         Production Mining
    Stope Development and Drift and Fill Mining (000’s Tons)    -    41.7    42.1    107.9    79.9    33.0    14.3    14.9    2.4    336.2
    Bench Mining (000’s Tons)         7.8    9.6    38.5    15.6    10.1    4.3    5.0    1.1    92.1
    Mineralization Production Rate (tpd)    -     136    142    401    305    219    153    160    88    178
         Backfill
    Total CRF Backfill (000’s Tons)    -    9.7    10.1    28.7    18.5    7.9    3.1    3.3    0.3    81.6
         Waste Mining
    Expensed Waste (000’s Tons)    -    11.1    4.0    13.3    11.0    2.6    4.1    4.0    0.0    50.2
    Primary Capital Drifting (Feet)    -    9,352    4,036    1,859    4,799    265    1,386              21,698
    Secondary Capital Drifting (Feet)    200    1,194    855    574    829    39    396              4,086
    Capital Raising (Feet)    -    934    578    241    264    -    1,727              3,744
    Capitalized Mining (000’s Tons)    3.5    210.3    95.1    43.1    107.7    4.9    49.8              514.4

Total Tons Mined (000’s Tons)

   3.5    271.0    150.8    203.3    230.3    87.3    109.8    62.4    32.1    3,713.0

Mining Rate (tpd)

   10    742    413    557    629    239    301    171    88    350





 Practical Mining LLC   March 26, 2025 


 Page 168

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 13-7 Production Profile without Inferred Mineral Resources

LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 169 



14. Recovery Methods



  14.1.

INTRODUCTION

Mineralization from Cove operation which is amenable to roasting will be processed via dry grind, 0roasting followed by carbon in leach (CIL) at Nevada Gold Mines Gold Quarry. The most recent metallurgical testing is described in Section 10 Mineral Processing and Metallurgical Testing supports processing parameters at this facility at NGM. Up to 750 tons per day of Cove production will be processed at the Gold Quarry Roaster.

Beginning 2028, amenable production will also be processed through the Lone Tree pressure oxidation facility. Operating conditions will be determined. Production will likely be blended with feed from other i-80 operations.



  14.2.

Gold Quarry Roaster

The Gold Quarry roaster processes 3.4 to 3.6 million tons per year and consists of primary and secondary crushing, dry grinding, dual stage fluidized bed roasting, off-gas handling, mercury recovery systems, a slurry neutralization circuit, a carbon-in-leach (CIL) circuit with carbon stripping, cyanide detoxification circuit, and electrowinning for gold recovery. Roaster off-gas is processed to recovery sulfuric acid for sale or internal use.

Gold recovery estimates are based on both test work and operational history at both facilities with curves utilized for both depending on operating strategy and ore characteristics. The current roaster LOM has an average recovery of 88%.

The simplified Gold Quarry Roaster process flowsheet is shown in Figure 14-1.





 Practical Mining LLC   March 26, 2025 


 Page 170

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 14-1 Nevada Gold Mines Gold Quarry Roaster Simplified Flowsheet



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 171 



  14.3.

 Lone Tree Pressure Oxidation Facility

i-80 Gold plans to process single refractory ore from their Nevada mines at their Lone Tree Mill in a hub and spoke arrangement.



  14.3.1.  

Lone Tree Mill Historic Processing

The Lone Tree Mine is located immediately adjacent to I-80, approximately 12 miles west of Battle Mountain, 50 miles east of Winnemucca, and 120 miles west of Elko. Mining commenced at Lone Tree in April 1991 with the first gold pour in August of 1991. In 1993, a POX circuit was added to the facility, which included a SAG / ball mill circuit, followed by a thickening circuit, the POX process for refractory gold ores, and finally CIL, carbon stripping, and refining.

In 1997, a 4,500 tpd flotation plant was constructed to make concentrate to supplement the feed to the POX circuit, as well as to ship excess concentrate to Newmont’s Twin Creeks POX plant or to its Carlin roaster. The Lone Tree processing facilities were shut down at the end of 2007. Since that time, the mills have been rotated on a regular basis to lubricate the bearings. In general, the facility is still in place with most of the equipment sitting idle.

i-80 Gold Corp’s objective is to refurbish and restart the POX circuit and associated unit operations, including the existing oxygen plant, as it was operating before the shut-down, while meeting all new regulatory requirements. The flotation circuit is not being considered for restart. The POX circuit will have capability to operate under either acidic or basic conditions.

In order to restart the process plant, new environmental regulations in relation to allowable mercury emissions must be met. In February 2011, the NDEP and the EPA brought about new standards to limit mercury emissions to 127 lb of mercury for every million tons of ore processed. In order to meet this requirement, the Lone Tree facility will require several environmental upgrades prior to restart.



  14.3.2.  

Lone Tree Facility Block Flow Diagram

A block flow diagram for the Lone Tree Mill facility is included in Figure 14-2. The block flow diagram contains the follow major processing areas:





Ore Reclaim, Grinding and Thickening and Acidulation





Pressure Oxidation





 Practical Mining LLC   March 26, 2025 


 Page 172

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





POX Off-gas Treatment and Quench Water Loop



Neutralization, Carbon-in-Leach, and Cyanide Destruction



Tailings Thickening and Filtration



Acid Wash, Carbon Stripping, and Carbon Regeneration



Electrowinning and Refinery



Plant and Instrument Air



Oxygen Plant



Reagent Preparation and Storage



Process and Plant Service Cooling Towers



Water Distributions



Steam Generating Plant and Propane Storage.



  14.3.3.  

Key Design Criteria

The Lone Tree Pressure Oxidation (POX) Facility restart will have minimal changes made from the 1993 PDC. A new PDC was developed based on the expected production sources as defined by i-80.

Key process design criteria are summarized in Table 14-1.

Table 14-1 Summary of Key Process Statistics


Criteria    Units              Value


Annual Mill Throughput

   tons                  912,500         


Daily Throughput (per calendar day)

   tons              2,500


Operating Throughput of Ore to Autoclave Circuit (LTH feed)

   tph              122.5


Operating Time / Availability

   %              85


Design Sulfur Treatment Rate

   tph S              2.7


Gold Recovery

   %              Varies


Silver Recovery

   %              Varies



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 173 



Figure 14-2 Lone Tree Facility Block Flow Diagram

LOGO





 Practical Mining LLC   March 26, 2025 


 Page 174

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  14.3.4.

Lone Tree Facility Description



  14.3.4.1.

Mill Feed Reclaim

The purpose of the Mill feed reclaim area is to store and reclaim material for processing, which has been shipped to the lone tree processing facility via highway ore trucks.

Run of mine (ROM) crushed material is delivered to the stockpile area. Material from various mining locations – namely Granite Creek, Cove, and Archimedes – is dumped at designated locations within the storage area and blended into facility feed stockpiles.

The stockpile area will have the capacity to store multiple days output of mined and crushed material to accommodate the production shipment schedule to site. Additionally, the reclaim area is utilized for feed blending for the POX circuit. This blending will be used to manage the sulfide sulfur concentrations, gold grades, and carbonate grades through the autoclave to ensure stable circuit operation within the design window for the plant.



  14.3.4.2.

Comminution

The purpose of comminution area is to reduce the particle size of the feed ore to the target autoclave circuit feed size for sufficient sulfide oxidation kinetics and gold recovery within the autoclave. The comminution area contains an SABC circuit with a dedicated SAG (semi-autogenous grinding mill) and ball mill to reduce the feed particle size to the target grind size. The SAG mill is fed via a conveyor from the dump hopper. The ball mill cyclone overflow is directed to the POX feed thickening conveyor.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 175 



  14.3.4.3.

Thickening and Acidulation

The purpose of the thickening area is to prepare the slurry for autoclave process by densifying the product of the grinding circuit to improve storage capacity of the downstream slurry storage tanks, improve the autoclave heat balance by reducing the water transferred to the autoclave and improving the possible solids flow through the autoclave feed pumps. The dense slurry is stored in two acidulation tanks that provide a combined storage / acidulation retention time of 12 hours. The acidulation tanks ensure continuous feed to the autoclave plant, unaffected by upstream throughput variations.



  14.3.4.4.

Pressure Oxidation

The POX autoclave circuit includes the slurry pre-heaters, autoclave feed, autoclave, and the POX ancillary services: autoclave agitator seal system, oxygen supply, high pressure cooling water, and high-pressure steam. The Lone Tree Facility restart includes provisions to operate the circuit in alkaline or acidic modes depending on the feed carbonate concentration among other factors.



  14.3.4.4.1.

Slurry Heaters

The purpose of the slurry heaters is to capture excess energy discharged from the autoclave and pre-heat the feed slurry prior to the autoclave process reducing the total energy input required to operate the autoclave. The heating is achieved in two stages consisting of a series of two refractory lined counter-current splash slurry heater vessels. The heat source is flashed steam released from the autoclave discharge slurry during the pressure letdown process. The splash slurry heaters are direct contact heat exchanger and provide a means of heat recovery via steam condensation. This reduces the off-gas load on the downstream off-gas equipment and reduces the required input steam.



  14.3.4.4.2.

Autoclave Feed

The purpose of the autoclave feed area is to increase the pressure of the pre heated slurry to above the autoclave operating pressure to facilitate transfer into the autoclave at the required pressure using the autoclave feed pumps.





 Practical Mining LLC   March 26, 2025 


 Page 176

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  14.3.4.4.3.

Autoclave

The purpose of the autoclave is to oxidize the refractory sulfide minerals under acidic or alkaline conditions to liberate the gold trapped in the sulfide sulfur minerals. The autoclave at Lone Tree is designed to operate at 389 °F and 297 PSI(g) with a slurry residence time of 40 - 50 minutes and consists of 4 compartments. The design expects a 78% - 97% cumulative sulfide sulfur oxidation through the autoclave depending on operating conditions. In either operating condition high purity oxygen is introduced to all four compartments of the autoclave at controlled rates to oxidize the fed sulfide minerals. Due to the low sulfur grades steam is required to be continuously fed to the autoclave to maintain the kinetically required oxidation rates to achieve the sulfide sulfur oxidation extent. The autoclave slurry is discharged through a level control choke valve and is fed to the high pressure flash vessel.



  14.3.4.4.4.

Flash System

The purpose of the flash system is to reduce the pressure and temperature of the autoclave discharge, making it suitable for subsequent unit operations downstream. The oxidized slurry undergoes a controlled pressure and temperature reduction process as it passes through two stages of flashing vessels located downstream of the last autoclave compartment.



  14.3.4.5.

POX Off-gas Treatment

The purpose of the POX off-gas treatment area is to effectively eliminate particulate matter present in the POX vent stream, while simultaneously reducing the temperature and volume of the vent gas through direct contact condensation. This process serves to alleviate the burden imposed on downstream equipment, ensuring their optimal performance, and mitigates the environmental impact by minimizing emissions. The off-gas treatment circuit also includes a mercury removal step to minimize autoclave mercury emissions to the environment.



  14.3.4.6.

Slurry Coolers

The purpose of slurry coolers is to reduce the temperature of the incoming slurry from the low-pressure flash vessel to prepare it for the downstream neutralization and CIL circuits through a series of water cooled shell and tube heat exchangers.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 177 



  14.3.4.7.

Neutralization

The purpose of neutralization circuit is to neutralize all free acid in the slurry, precipitate the heavy metals as their hydroxides and raise the pH to approximately 10 to ensure cyanide stability in the CIL circuit for personnel safety and process optimization. The neutralization circuit is dosed with lime slurry to raise the pH of the autoclave discharge slurry. The neutralized slurry from this circuit is then fed to the CIL circuit for gold recovery.



  14.3.4.8.

Carbon-in-Leach

The purpose of CIL circuit is to leach and extract gold and silver from the oxidized slurry from neutralization using cyanidation and carbon adsorption. The CIL circuit provides retention time of 24 to 28 hours. The CIL circuit consists of 6 mechanically agitated tanks arranged in a series. The agitators prevent solid settlement and maximize contact time to improve gold and silver recovery. The carbon flows counter current to the slurry flows and the loaded carbon is sent to an elution circuit for carbon stripping and regeneration. Unloaded carbon is fed the last tank of the CIL circuit. The leached slurry is transferred to the cyanide destruction circuit.



  14.3.4.9.

Elution

The purpose of the elution circuit is to elute precious metals from the loaded carbon and transfer the resulting loaded solution of high gold concentration (pregnant eluate) to the refinery to generate doré.



  14.3.4.9.1.

Carbon Acid Wash

The purpose of acid wash is to rinse the loaded carbon form CIL with dilute nitric acid solution prior to the carbon stripping process. Carbonate scale builds up on the activated carbon during the CIL process and fouls the carbon’s adsorption properties by depositing a layer of scale. If left intact, over time the scale will limit the adsorption capacity of the carbon and will cause softening of the carbon in the regeneration kiln. The loaded carbon from CIL is first treated within the carbon acid wash vessel prior to treatment within the carbon stripping vessel.





 Practical Mining LLC   March 26, 2025 


 Page 178

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  14.3.4.9.2.

Carbon Stripping

The purpose of the carbon strip circuit is to strip the cleaned loaded carbon from the acid wash vessel of the adsorbed gold using a Pressure ZADRA Strip scheme. The ZADRA strip uses several bed volumes of a recirculated solution to strip the precious metals off the loaded carbon. The cyanide solution is buffered by caustic to assist with gold elution. The stripped carbon is then sent to carbon regeneration circuits. The loaded solution is next processed in the electrowinning circuit.



  14.3.4.9.3.

Elution Mercury Abatement

The purpose of elution mercury abatement system is to condition the off gas leaving the pregnant and barren solution tank to remove fine particulate, solution aerosols and condensed and gas phase mercury.



  14.3.4.10.

Carbon Regeneration

The purpose of the carbon regeneration circuit is to restore the activated carbon’s ability to recover gold from the cyanidation circuit solutions. The circuit also permits the introduction of new carbon to the process and removes carbon fines from the process.



  14.3.4.10.1.

  Carbon Regeneration Kiln

As carbon is used in the CIL and elution circuits, the surface and internal pore structure becomes contaminated with organic species. The organics foul the carbon, slow the gold adsorption rate, and decrease the gold loading capacity of the carbon. The carbon reactivation electric kiln is a horizontal rotary kiln that is specifically designed for this purpose.



  14.3.4.10.2.

  Carbon Fines Handling

Carbon fines are transferred by gravity from the reactivated carbon vibrating screen, carbon reactivation feed vibrating screen, kiln feed hopper, and carbon reactivation electric kiln. The carbon fines are dewatered in a filter press and discharged into supersacks for external sale.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 179 



  14.3.4.11.

Refinery

The purpose of the refinery circuit is to recover gold cyanide solutions via electrowinning and produce doré bullion bars.



  14.3.4.11.1.

  Electrowinning

The purpose of the electrowinning (EW) circuit is to recover gold from the pregnant solution by applying a voltage across electrodes immersed in the pregnant solution. Rich solution from the pregnant solution tank is transferred through the EW cells to electrowin the gold.



  14.3.4.11.2.

  Refining

The purpose of the refining process is to produce doré bars void of other contaminants including but not limited to mercury.

The sludge from the EW cells is first processed in a mercury retort oven to remove the co-captured mercury from the precious metals recovery steps. The retorted gold sludge is then processed in a melt furnace to produce the final mine grade doré bars.



  14.3.4.12.

Cyanide Destruction

The purpose of the cyanide destruction circuit is to effectively reduce the concentration of cyanide in the final tail discharge and the recycled process water, ensuring compliance with predefined environmental standards and regulations and improving the safety of the operation by reducing cyanide concentrations outside of the CIL and elution circuits. The circuit targets a specific concentration limit of 2.5 mg/L of residual weakly acid-dissociable cyanide (CNWAD). This reduction is accomplished through the application of the SO2/air cyanide destruction process, which oxidizes the cyanide to meet the required concentration level. The cyanide destruction circuit is fed directly from the slurry discharge from the CIL circuit.





 Practical Mining LLC   March 26, 2025 


 Page 180

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  14.3.4.13.

Tailings Preparation

The purpose of the tailings circuit is to increase the density of the detoxified tailings to aid with dry stacking of tailings residue. Additionally, this circuit produces process water for internal use within the facility. The tailings preparation circuit consists of a thickener as a first stage of solids densification. The thickener underflow is then fed to a tailings filtration circuit which dewaters the tailings sufficiently to support tailings dry stacking. The de-watered tailings from the filter presses are then dry stacked at the tailings storage facility.

The water removed from the tailings slurry is used as process water within the facility to offset water requirements. Excess process water is processed via a reverse osmosis circuit to provide supplemental permeate water to offset fresh water requirements.



  14.3.4.14.

Water Distributions

There are eight types of defined water services at Lone Tree:





Fresh water – Is generally used for reagent make-up and water washing streams.



Gland water – Is used to supply gland water to slurry pumps.



Mill water – Is used to provide dilution water within the milling circuit.



Potable water – Is used for safety showers and sanitary uses.



Demineralized water – Is primarily used to supply the steam generating plant.



Process water – Is used for washing and slurry dilutions. Additionally, generally feeds the reverse osmosis circuit to generate permeate water.



Quench water – Is used within the POX off-gas circuit as the source of direct cooling water.



Excess water – Is discharged from the main processing facility to the existing heap leach facility for treatment.



  14.3.4.15.

Solution Cooling

The purpose of the cooling area is to reject heat absorbed within the process to atmosphere. The solution cooling area includes the process service cooling circuit and the plant service cooling circuit. The process cooling circuit rejects the heat from the autoclave cooling circuit and the elution circuit heat exchangers. The plant service cooling circuit provides trim heat rejection from various equipment support systems throughout the design.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Recovery Methods

  Page 181 



  14.3.4.16.

Reagents

Each set of compatible reagent preparation and storage systems is located within dedicated containment areas to prevent erroneous mixing of reagents. Storage tanks are equipped with level indicators, instrumentation, and alarms to reduce the risk of spills during normal operation. Appropriate ventilation, fire and safety protection, safety shower stations and Safety Data Sheet stations are located throughout the facility.



  14.3.4.16.1.

  Oxygen Plant

High purity oxygen is primarily used for oxidation of sulfide during the POX process, of iron conversion from ferrous to ferric in the neutralization circuit, and of cyanide to cyanate in cyanide destruction. Furthermore, during cyanidation, the addition of oxygen maximizes the rate of gold dissolution. At Lone Tree, a cryogenic ASU produces high purity oxygen. The unit uses pressure swing adsorption technology for front end purification and production of high-pressure oxygen at 95% purity.



  14.3.4.17.

Instrument and Plant Air

The Lone Tree facility includes separate instrument and plant air systems to support the facilities air requirements.



  14.3.5.

Utilities Consumption

The plant consumptions for water and power are provided for the average processing case below and consider the design blend of material to be processed within the Lone Tree Facility for the design life of operation.



  14.3.5.1.

Water Consumption

Table 14-2 provides a summary of the water consumption by type for the Lone Tree processing facility.





 Practical Mining LLC   March 26, 2025 


 Page 182

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 14-2 Lone Tree Facility Water Consumption by Type


Type     Consumption (gpm) 


Mill Water

   1 550


Fresh Water

   570


Permeate Water

   195


Low Pressure Gland Water 

   105


High Pressure Gland Water 

   170


Demineralized Water

   110


Potable Water

   15



  14.3.5.2.

Electrical Power Requirements

The estimated annual electrical energy requirements for the Lone Tree processing facility are summarized by area in Table 14 3.

Table 14-3 Lone Tree Facility Energy Usage by Area


Area

Annual Energy

 Consumption (MWh/y) 



000 – General Plant Wide

  2 250


180 – Water System

  930


181 – Potable Water

  240


182 – Process Water (RO and Process Water Tank)

  4 900


210 – Ore Reclaim

  770


240 – Refinery

  2 310


241 – POX Grinding

  26 920


242 – POX Grinding Thickening and Acidulation

  1 890


244 – Neutralization and CIL and Acid Storage

  6 540


245 – Carbon Stripping

  4 090


247 – CND

  690


248 – Reagents

  2 640


249 – Plant Air and Propane

  3 310


250 – Pressure Oxidation (POX) and POX Utilities

  15 540


251 – POX Demineralized Water System

  2 660


275 – Tailings Filtration

  13 690


300 – Plant Wide Electrical and Instrumentation

  4 000


305 – ABS and CN Storage

  160


320 – POX Mercury Abatement

  900



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Infrastructure

  Page 183 




Area

Annual Energy

 Consumption (MWh/y) 



340 – Quench Water Treatment

   4 020


255 – Oxygen Plant

   40 090


099 – Existing Plant Areas

   3 570


Total

   142 090
  15.

Infrastructure



  15.1.

Dewatering



  15.1.1.

History

Dewatering of the Cove Pit occurred from 1988 until mid-2001 utilizing surface dewatering wells, sumps, and horizontal drains. Water pumped from the dewatering wells was piped to a series of rapid infiltration basins (RIBs) located north of the pit, where the water was infiltrated into the alluvium of the Reese River Valley. All wells constructed for dewatering purposes have been abandoned in accordance with Nevada Division of Water Resources regulations as part of the mine’s closure plan. Following cessation of dewatering activities, a pit lake began forming in 2001 and has reached an elevation of approximately 4,626 ft. (Piteau Associates USA Ltd., 2018)

The pit reached the ground water level in 1991. The pumping rate peaked at 19.000 gpm in 1994 and 1995. By the year 2000, the last full year of mining it had declined to 13,400 gpm. The infrastructure required to move this volume of water included 23 pumping wells and two in pit pumping stations. (Echo Bay Minerals Company, 2002)



  15.1.2.

Infrastructure

All of the historical dewatering infrastructure has been removed except the water monitoring wells and piezometers. i-80 will be required to construct the following:





Dewatering wells with production string;





Pit lake dewatering barge;





Electrical distribution lines and transformers to the dewatering wells and pit lake barge;





Collection pipelines to each well and pit lake barge’





Rapid Infiltration Basins, and;





Pipeline from the collection piping system to the RIBs.





 Practical Mining LLC   March 26, 2025 


 Page 184

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Tentative well locations are shown in Figure 15-1. Ribs will be located several miles to the North of the proposed underground mining area.

Figure 15-1 Proposed Dewatering Well Location

LOGO



  15.2.

Electrical Power

Dewatering constitutes 90% of electrical power demand over the Project’s duration. Demand for dewatering was estimated from projected water elevations and pumping rates and peak demand of 11.5 megawatts (MW) occurs in 2028 (Figure 15-2).



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Infrastructure

  Page 185 



Figure 15-2 Electrical Demand

LOGO

An existing NV Energy 24.9 kilovolt (kV) distribution line and meter will provide one megawatt (MW) to the Cove Project during the initial decline development and underground drilling program. Permanent power for the project will be supplied by an existing 120 kV transmission line. This line previously powered the Cove Project and extends approximately 9 12 miles from NV Energy’s Bannock substation to and terminates at the Cove Project. The line is in good condition and will not require any repairs.

The Bannock substation serves the Phoenix Mine and a geothermal power plant located in Jersey Valley. The substation has ample capacity to provide the estimated 11.5 MW of power required by the Cove Project. Prior to reconnecting the line to the grid NV Energy requires updating the switchgear at the substation to a ring configuration as a result of new standards implemented since the line was taken out of service after the cessation of activities at Cove by Echo Bay. The full cost of these upgrades will be borne by the Cove Project.

Where the lines cross the project access road a new substation will be constructed. It currently contains a 24.9/13.8 kV, 1,500 kilovolt-ampere pad mounted transformer and related equipment. Approximately 7,500 feet of distribution line connects the substation to the portal site and related surface facilities (Figure 15-3).





 Practical Mining LLC   March 26, 2025 


 Page 186

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



The substation will be upgraded with a 120/13.8 kV transformer when permanent power is being connected that will feed the distribution line to the portal. As the dewatering wells are completed additional distribution lines will be added to connect the wells.

Figure 15-3 Electrical Site Plan

LOGO

(Quantum Electric 2017)



  15.3.

Mine Facilities

The proposed location of mine facilities is shown in Figure 15-4. The laydown area will contain the mine office, maintenance shop, equipment wash down bay, fuel and oil storage, employee dry facilities and warehouse.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Infrastructure

  Page 187 



Figure 15-4 Mine Facilities Layout

LOGO



  15.4.

Backfill

Backfill material for unconsolidated waste fill (GOB) can be obtained from any suitable source such as development waste, open pit waste dumps, or leach pads.

Backfill material for Cemented Rock Fill (CRF) will need to meet specifications designed to achieve minimum Uniaxial Compressive Strength (UCS) specifications. This specification is designed to provide the pillar strength needed to maintain stability of adjacent underground excavations and may require screening and/or crushing. The results of backfill testing for six types of material available at Cove are shown in

Table 15-1. CRF material will be mixed at a backfill plant located near the portal and transported underground using the same truck fleet used to remove mineralized material and waste from the mine.





 Practical Mining LLC   March 26, 2025 


 Page 188

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 15-1 Backfill Scoping Tests 28-Day Unconfined Compressive Strength (psi)


Cement Content    4%    6%    8%

Aggregate Source


Waste

   440             510             830         


Tails

   60    90    120


Tuff

   90    140    240


Pad 3

   360    590    500


Pad 2

   190    200    260


Mill Rejects

   210    510    810



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Market Studies and Contracts

  Page 189 



  16.

Market Studies and Contracts



  16.1.

Precious Metal Markets

Gold and silver are fungible commodities with reputable smelters and refiners located throughout the world. The price of gold has reached all-time highs in 2024 with December’s price averaging 2,644 per ounce. As of December, 2024 the three-year trailing average gold price was $2,044 per ounce and the two-year trailing average price was $2,166 per ounce. The three -year and two-year trailing average prices for silver in December 2024 were $24.50 and $25.88 per ounce respectively. Historical plots for both are shown in in Figure 16-1.

Figure 16-1 Historical Monthly Average Gold and Silver Prices and 36 Month Trailing Average

LOGO

Issuers may also rely on published forecasts from reputable financial institutions. The current long term price forecast by CIBC is $2,169 and per ounce and $27.61 per ounce for gold and silver respectively. (CIBC., 2025)





 Practical Mining LLC   March 26, 2025 


 Page 190

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Commodity prices for Mineral Reserves are chosen not to exceed financial institution forecasts or the three-year trailing average price. Commodity pricing for the estimation of Mineral Resources can be 10% to 20% higher than that used for Mineral Reserves. The gold price selected for estimating Mineral Resources disclosed in this technical report is $2,175. The silver price selected is $27.25 per ounce.



   16.2.

Contracts



  16.2.1.

Financing Agreements



  16.2.1.1.

Orion and Sprott Financing Package

The Company entered into a financing package with OMF Fund III (F) Ltd. an affiliate of Orion Mine Finance (collectively “Orion”) on December 31, 2021, and a fund managed by Sprott Asset Management USA, Inc. and a fund managed by CNL Strategic Asset Management, LLC (“Sprott”) on December 9, 2021 (together the “Finance Package”).

The Financing Package in its aggregate consists of:

a.  $50 million convertible loan (the “Orion Convertible Loan”)

b.  $10 million convertible loan (the “Sprott Convertible Loan” and together with the Orion Convertible Loan, the “Convertible Loans”)

c.  $45 million gold prepay purchase and sale agreement entered into with affiliates of Orion (the “Gold Prepay Agreement”), including an accordion feature potentially to access up to an additional $50 million at i-80 Gold’s option

d.  $30 million silver purchase and sale agreement entered into with affiliates of Orion (the “Silver Purchase Agreement”), including an accordion feature to potentially access an additional $50 million at i-80 Gold’s option and an amended and restated offtake agreement entered into with affiliates of Orion (the “A&R Offtake Agreement”)

e.  5,500,000 warrants of the Company issued to Orion (the “Orion Warrants” and together with the Orion Convertible Loan, Gold Prepay Agreement, Silver Purchase Agreement and the A&R Offtake Agreement, the “Orion Finance Package”).

Under the Gold Prepay Agreement, i-80 Gold was due to deliver to Orion 3,000 troy ounces of gold for each of the quarters ending March 31, 2022 and June 30, 2022, and thereafter, 2,000 troy



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Market Studies and Contracts

  Page 191 



ounces of gold per calendar quarter until September 30, 2025 in satisfaction of the $45 million prepayment, for aggregate deliveries of 32,000 troy ounces of gold. i-80 Gold may request an increase in the $45 million prepayment by an additional amount not exceeding $50 million in aggregate in accordance with the terms of the Gold Prepay Agreement.

The final Gold Prepay Agreement includes an amendment to adjust the quantity of the quarterly deliveries of gold, but not the aggregate amount of gold, to be delivered by the Company to Orion over the term of the Gold Prepay Agreement. Under the amended Gold Prepay Agreement, commencing on the date of funding, the Company is required to deliver to Orion 1,600 troy ounces of gold for the quarter ending March 31, 2022, 3,100 troy ounces of gold for the quarter ending June 30, 2022, and thereafter 2,100 troy ounces of gold per calendar quarter until September 30, 2025, in satisfaction of the $45 million prepayment, for aggregate deliveries of 32,000 troy ounces of gold, subject to adjustment as contemplated by the terms of the Gold Prepay Agreement. As the funding from Orion did not occur until April 2022, payment for the delivery of 1,600 ounces for the quarter ending March 31, 2022 was offset against the $45 million of proceeds received from Orion.

Under the Silver Purchase Agreement, commencing April 30, 2022, i-80 Gold will deliver to Orion 100% of the silver production from the Granite Creek and Ruby Hill projects until the delivery of 1.2 million ounces of silver, after which the delivery will be reduced to 50% until the delivery of an aggregate of 2.5 million ounces of silver, after which the delivery will be reduced to 10% of the silver production solely from the Ruby Hill Project. Orion will pay i-80 Gold an ongoing cash purchase price equal to 20% of the prevailing silver price. Until the delivery of an aggregate of 1.2 million ounces of silver, i-80 Gold is required to deliver the following minimum amounts of silver (the “Annual Minimum Delivery Amount”) in each calendar year: (i) in 2022, 300,000 ounces, (ii) in 2023, 400,000 ounces, (iii) in 2024, 400,000 ounces, and (iv) in 2025, 100,000 ounces. Upon a construction decision for the Ruby Hill project, comprised of one or both of the Ruby Deep or Blackjack Deposits, which construction decision is based on a feasibility study in form and substance satisfactory to Orion, acting reasonably, i-80 Gold will have the right to request an additional deposit from Orion in the amount of $50 million in aggregate in accordance with the terms of the Silver Purchase Agreement.

Both the Gold Prepay Agreement and the Silver Purchase Agreement were funded on April 12, 2022 with i-80 Gold receiving net proceeds of $71.6 million after netting the aforementioned March 31, 2022 gold delivery and closing costs as further described in Note 10 and Note 24 in the Company’s Financial Statements.

The main amendments reflected in the A&R Offtake Agreement include the increase in the term of the agreement to December 31, 2028, the inclusion of the Granite Creek and Ruby Hill projects, and the increase of the annual gold quantity to up to an aggregate of 37,500 ounces in respect of





 Practical Mining LLC   March 26, 2025 


 Page 192

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



the 2022 and 2023 calendar years and up to an aggregate of 40,000 ounces in any calendar year after 2023. During the year ended December 31, 2022, Orion assigned all of its rights, title and interest under the A&R Offtake Agreement to TRR Offtakes LLC, now Deterra Royalties Limited.

On September 20, 2023, the Company entered into an Amended and Restated (“A&R”) Gold Prepay Agreement with Orion, pursuant to which the Company received aggregate gross proceeds of $20 million (the “2023 Gold Prepay Accordion”) structured as an additional accordion under the existing Gold Prepay Agreement.

The 2023 Gold Prepay Accordion will be repaid through the delivery by the Company to Orion of 13,333 troy ounces of gold over a period of 12 quarters, being 1,110 troy ounces of gold per quarter over the delivery period with the first delivery being 1,123 troy ounces of gold. The first delivery will occur on March 31, 2024, and the last delivery will occur on December 31, 2026. Obligations under the A&R Gold Prepay Agreement, including the 2023 Gold Prepay Accordion, will continue to be senior secured obligations of the Company and its wholly-owned subsidiaries Ruby Hill Mining Company, LLC and Osgood Mining Company, LLC and secured against the Ruby Hill project in Eureka County, Nevada and the Granite Creek project in Humboldt County, Nevada.

The remaining terms of the A&R Gold Prepay Agreement remain substantially the same as the existing Gold Prepay Agreement. The Company may request an increase in the prepayment by an additional amount not exceeding $50 million in aggregate in accordance with the terms of the A&R Gold Prepay Agreement.

In connection with the 2023 Gold Prepay Accordion, the Company issued to Orion warrants to purchase up to 3.8 million common shares of the Company at an exercise price of C$3.17 per common share until September 20, 2026, and extended the expiry date of 5.5 million existing warrants by an additional 12 months to December 13, 2025.



  16.3.

Roaster Toll Milling Agreement

A roaster toll milling agreement was negotiated coincident with the purchase of 100% interest in the McCoy/Cove property from Newmont, now Nevada Gold Mines. The agreement allows for processing up to 750 tpd of mineralized material at the Gold Quary roaster. Final tolling charges will be determined at the time of processing.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Market Studies and Contracts

  Page 193 



  16.4.

Refractory Mineralized Material Sale Agreement

Refractory mineralization mined prior to 2028 will be sold to a third party for processing under an existing agreement. Payment will be made for 58% of the contained gold at the average gold price realized during the month the material was processed. The processing agreement applies to all i-80 projects and allows a maximum purchase rate of 1,000 tons per day from all i-80 operations. The QP’s have reviewed this agreement and find the terms and conditions are in accordance with industry standard practice.



  16.5.

Other Contracts

The company also intends to negotiate contracts for underground mine development, production mining, and over-the-road haulage with reputable contractors doing business in northeast Nevada. At the time of this report these negotiations have not been initiated. From time to time the company enters into other contracts for goods and services as a routine course of business.





 Practical Mining LLC   March 26, 2025 


 Page 194

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  17.

Environmental Studies, Permitting and Plans, Negotiations or Agreements with Local Individuals or Groups

Au-Reka is the owner and operator of the Project and is responsible for all permitting requirements associated with the site including ensuring that mineral exploration activities are conducted in compliance with all applicable environmental protection legislation. The Project is primarily located on public lands administered by the Bureau of Land Management (BLM) and is subject to both Federal and State permitting requirements. Au-Reka is unaware of any existing environmental issues or compliance problems that have the potential to impede production at the Project. Au-Reka is working closely with both State and Federal regulators to ensure that the permitting and compliance strategies are acceptable and will not cause delays in production or mine development. At this time, there are no community or social impact issues regarding work being completed at the Project. Au-Reka continues to engage with the surrounding community and other external stakeholders.

The Project site is located within a previously mined area and most activities are currently being conducted or are planned on existing previously disturbed or mined areas, thereby limiting the potential environmental impacts to the site. All necessary studies and permits are in place to support the permitted exploration and test mining activities at the site.

The underground exploration decline was advanced in 2022-2023 followed by infill drilling of the ore body that continued in 2025.

Au-Reka is currently in the process of advancing the full-scale underground mining phase of the Project and, during 2023-2024, baseline studies were conducted to support the federal permitting action which is expected to be an Environmental Impact Statement (EIS) through the BLM. In addition, an associated POO Amendment will also be completed and submitted to address the Project specifics for full-scale underground mining. Nevada Division of Environmental Protection (NDEP) permits will also be secured as the Project permitting progresses.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Environmental Studies, Permitting and Plans,

Negotiations or Agreements with Local Individuals or

Groups

  Page 195 



  17.1.

Social or Community Impacts

The following information on community relations and stakeholder consultation was provided by Au-Reka personnel in 2024.

Au-Reka is deeply committed to ensuring that local ranchers and Tribal officials are actively involved in the progress of the Project, particularly in understanding both the potential benefits and the possible environmental or social impacts that may arise as the project advances. The company recognizes the importance of maintaining open and transparent communication with these key stakeholders and values their input in decision-making processes.

In addition to this, Au-Reka works closely with the Northeastern Nevada Regional Development Authority and provides project updates as it relates to regional economic development and growth. Furthermore, the company has established a strong partnership with the Lander County School District and Great Basin College, supporting various educational initiatives that benefit local students and the community at large. These initiatives include programs aimed at enhancing educational resources, offering career training opportunities, and providing support for workforce development in the region.

Beyond these partnerships, Au-Reka places a high priority on maintaining positive, long-term relationships with local government officials, tribal leaders, ranchers, and neighboring landowners, ensuring that all parties are heard, respected, and included in the development process. Through these efforts, Au-Reka strives to be a responsible and engaged community partner, prioritizing the well-being of the area and its residents throughout the duration of the Project.





 Practical Mining LLC   March 26, 2025 


 Page 196

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  17.2.

Permitting

Au-Reka currently holds three separate POO and associated State of Nevada Reclamation Permits in relation to the larger McCoy Cove land package. Of these, one pertains to the legacy facilities, including tailings dam and leach pads, that were shut down in 2001 and have been largely reclaimed. A second POO and Reclamation Permit pertains to exploration on the property that is not proximal to the current resource area. The third POO and Reclamation Permit pertains to the current resource area encompassing surface exploration, portal construction, initial underground development, underground delineation and exploration drilling, hydrological testing and baseline data collection. Additionally, there are three Water Pollution Control Permits associated with the site that will require modifications as part of the full-scale mining permitting actions. A list of currently held permits relevant to the exploration and development of the current resource are listed in Table 17-1.

Table 17-1 Cove Project Existing Permits


Permit Name    Agency    Permit Number

Plan of Operations - Cove Helen UG    BLM    NVN-088795

Plan of Operations - McCoy Cove Mine    BLM    NVN-067086

Plan of Operations - McCoy Cove Exploration    BLM    NVN-067716

Mine Reclamation Permit - Cove Helen UG    NDEP-BMRR    0342

Mine Reclamation Permit - McCoy Cove Mine    NDEP-BMRR    0147

Mine Reclamation Permit - McCoy Cove Exploration    NDEP-BMRR    0062

Surface Area Disturbance Permit - Cove Helen UG    NDEP-BAPC    AP1041-2192.03

Surface Area Disturbance Permit - McCoy Cove Exploration    NDEP-BAPC    AP1041-3762

Water Pollution Control Permit - Cove Helen UG    NDEP-BMRR    NEV2010102

Water Pollution Control Permit - Cove Helen RIBs    NDEP-BMRR    NEV2010107

Water Pollution Control Permit - McCoy Cove Mine    NDEP-BMRR    NEV0088009

Mining Stormwater General Permit    NDEP-BWPC    NVR300000: MSW-678

Onsite Sewage Disposal System General Permit    NDEP-BWPC    GNEVOSDS09L0112

Industrial Artificial Pond Permit    NDOW    S400418
Dam Safety Permit

Nevada State

Engineer/NDWR

   J-495

Class III Waivered Landfill    NDEP-BSMM    SW335



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Environmental Studies, Permitting and Plans,

Negotiations or Agreements with Local Individuals or

Groups

  Page 197 



  17.3.

Closure and Reclamation Requirements

Reclamation of disturbed areas resulting from activities associated with the facilities included in the Project will be completed in accordance with NDEP and BLM regulations. The objectives of the reclamation work include the following:





Ensure public safety;





Reduce or eliminate potential environmental impacts;





Return the site to a condition that will support future use;





Control infiltration, erosion, sedimentation, and related degradation of existing drainages in an effort to minimize off-site impacts; and





Employ reclamation practices using proven methods that do not require ongoing maintenance.

Principal land uses in the Project area include mineral exploration and development, livestock grazing, wildlife habitat, and dispersed recreation. Following closure and final reclamation, the Project area will support the multiple land uses of livestock grazing, wildlife habitat, and recreation. Au-Reka will work with agencies and local governments and tribes to evaluate alternative land uses that could provide long-term socioeconomic benefits from the mine infrastructure. Post-closure land uses will be in conformance with the BLM Battle Mountain Resource Management Plan, Eureka-Shoshone Resource Management Plan (BLM, 1987), and Lander County zoning ordinances.

The goal of the reclamation program is to provide a safe and stable post-mining landform that supports defined land uses. To achieve this goal, the following objectives will be accomplished:





Minimize erosion and protect water resources through control of water runoff and stabilization of mine facilities;





Establish post-reclamation surface soil conditions conducive to the regeneration of a stable plant community through stripping, stockpiling, and reapplication of growth media;





Revegetate disturbed areas with a diversity of plant species in order to establish productive long-term plant communities compatible with post-mining land uses; and





Maintain public safety by stabilizing or limiting access to landforms that could constitute a public hazard.

With these objectives in mind, reclamation activities are designed to do the following:





 Practical Mining LLC   March 26, 2025 


 Page 198

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





Stabilize the disturbed areas to a safe condition; and





Protect both disturbed and undisturbed areas from unnecessary and undue degradation.

Surface management regulations within 43 CFR 3809.420 establish performance standards that apply to this Plan. Measures to be taken to prevent unnecessary or undue degradation will be implemented during design, construction, operation, and closure of the Project and include, but are not limited to:





Regulated components of the facility will be designed and constructed to meet or exceed the BLM / NDEP / NDOW / Nevada Division of Water Resources (NDWR) design criteria. Waste rock facilities and stockpiles, which do not require engineered containment, will be evaluated for potential to release constituents and will be monitored routinely or in accordance with an approved waste rock monitoring plan;





Surface disturbance will be limited to that which is reasonably incidental to exploration, mining, and mineral processing operations;





In-pit benches, highwalls, and haul roads will be left in place;





At mine closure, a four-strand wire fence or other appropriate barrier will be placed around pit perimeters where practical and safe to do so;





Pit ramps will be barricaded in a similar manner to prevent entrance;





Mineral exploration and development drillholes, monitoring and observation wells, and production dewatering wells subject to Nevada regulations will be properly abandoned to prevent potential contamination of water resources;





Regulated wastes will be managed according to relevant regulations;





Fugitive dust emissions from disturbed and exposed surfaces will be controlled in accordance with NDEP regulations and permits;





Surface water drainage control will be accomplished by diverting stormwater, isolating facility runoff, and minimizing erosion;





Where suitable as a growth medium, surface soils and some alluvial material in the open pit will be managed as a growth media resource and removed, stockpiled, and used during reclamation; and





A Reclamation Plan will be implemented that addresses earthwork and recontouring, revegetation and stabilization, detoxification and disposal, and monitoring operations necessary to satisfactorily reclaim the proposed disturbance including roads, process ponds, heaps, waste rock facilities, buildings, and equipment.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp

Environmental Studies, Permitting and Plans,

Negotiations or Agreements with Local Individuals or

Groups

  Page 199 



Suitable growth media will be salvaged during development of site facilities as practical. Suitable alluvial material from the open pits also will be salvaged as growth media. Growth media will be placed in stockpiles within the proposed disturbance area (i.e., ancillary disturbance area or completed portions of the waste rock facilities) and will be located such that mining operations will not disturb the stockpiles. The stockpiles will be recontoured to slopes of 2.5H:1V and seeded with an interim seed mix to minimize wind and water erosion. BMPs (e.g., silt fences or staked weed-free straw bales) will also be used, as necessary, to control sediment transport. Alternatively, the growth media may be transported to, and redistributed on, mine-related surface disturbance areas undergoing concurrent reclamation (e.g., waste rock facilities).

A cost estimate for reclamation was developed using the Nevada Standardized Reclamation Cost Estimator. The estimated cost for reclamation including costs to reclaim existing facilities currently used or to be re-purposed to support the full-scale mining aspects will be determined once the Project permitting actions have been approved by the BLM and NDEP. Current bonding in place, excluding the full-scale mining aspects, for the entire McCoy Cove site is $13,841,592 (Table 17-2).

Table 17-2 McCoy Cove Reclamation Bonds


McCoy Cove Mine    $5,431,494  

McCoy Cove Exploration    $865,763  

Cove Helen UG Mine    $7,544,335  

Total    $13,841,592  



  17.4.

Closure and Reclamation

Reclamation bonding requirements during the pre-construction phase of the project are $166k per year and increase to $826k per year during construction and operation of the mine. Regulatory bonding requirements will be satisfied by the purchase of surety for an annual cost of 2% per year. Estimated reclamation costs net of salvage total $22.9M. Post closure monitoring is forecast to continue for 5 years following final reclamation at a cost of $250k per annum. Closure and reclamation costs on a per unit basis total $42.30 per gold ounce (Table 17-3).

Table 17-3 Annual Closure and Reclamation Costs ($M)


     2025 -

2027

   2128-

2035

   2036 –

2040

   2041-

2045

   Total  

Reclamation Bonding    0.2    0.8    -    -    7.1  

Reclamation    -    -    4.6    -    22.9  





 Practical Mining LLC   March 26, 2025 


 Page 200

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




     2025 -

2027

   2128-

2035

   2036 –

2040

   2041-

2045

   Total  

Closure and Monitoring    -    -    -    0.3    1.3  

Total    0.4    1.9    4.6    0.3    31.3  



  17.5.

QP Statement

Practical Mining is of the opinion that the current plans for environmental compliance, permitting, closure are adequate to address any concerns of local individuals and groups.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Capital and Operating Costs   Page 201 



  18.

Capital and Operating Costs



  18.1.

Capital Costs

Costs were generated from estimates provided by local suppliers and contractors and from similar work performed at other area mines. All cost estimates include Lander County and Nevada sales taxes of 7.1%, freight, contractor mobilization and demobilization, engineering procurement, and construction management. Capital cost estimates for the project are summarized in Table 18-1 and detailed in Table 18-2 through Table 18-5.

Contingencies for capital costs are 15% for development and drilling and 25% on the remaining capital expenditures. The estimated accuracy for capital costs are within an Initial Assessment level of +/-50%.

Table 18-1 Project Capital Costs ($M)


     Pre-Construction   Construction   Sustaining

      2025     2026    2027   2028   2029   2030    2031     2032     2033    2034   Total

Mine Development   -   -   -   0.4   24.8   12.1   5.8   12.3   0.6   10.5   66.5

Dewatering   -   -   -   69.9   18.0   -   -   -   -   -   87.9

120kv Substation   -   -   -   3.1   -   -   -   -   -   -   3.1

Mine Facilities   -   -   -   1.3   0.9   1.0   0.1   0.2   -   -   3.5

Pre-Production   1.7   1.7   1.7   10.9   -   -   -   -   -   -   15.9

Env. Permitting & Feas.   4.0   2.0   1.0   -   -   -   -   -   -   -   7.0

Drilling   2.0   -   -   -   -   -   -   -   -   -   2.0

Contingency   1.7   0.9   0.7   19.5   8.5   2.1   0.9   1.9   0.1   1.6   37.8

Total   9.4   4.6   3.3   105.2   52.2   15.2   6.8   14.4   0.7   12   223.8

    17.3   157.4   49.1   223.8

Contingency - 15% development and drilling, 25% dewatering, substation, mine facilities and pre-production expenses.

The mine development unit costs shown in Table 18-2 are typical contractor costs in northern Nevada. These combined with the mine development schedule presented in Section 13 yield the development capital shown in Excludes contingency

Table 18-3.

Table 18-2 Mine Development Unit Costs


Description    $/ft  

Primary Drifting (15 ft x 17 ft)      $2,000  

Secondary Horizontal Access (15 ft x 15 ft)      $2,000  

Raise Bore (10 ft dia.)      $4,000  

Excludes contingency





 Practical Mining LLC   March 26, 2025 


 Page 202

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 18-3 Mine Development Capital ($M)


     Pre-Construction   Construction   Sustaining

      2025     2026     2027     2028     2029      2030    2031     2032     2033     2034     Total 

Helen   -   -   -   0.4   24.8   12.1   5.8   3.0         45.8

Gap   -   -   -   -   -   -   -   9.3   0.6   10.5   20.7

Total

  -   -   -   0.4   24.8   12.1   5.8   12.3   0.6   10.5   66.5

Excludes contingency

Dewatering capital includes 15 pumping wells and a pit lake barge. Well drilling and completion costs are approximately $3.4M per well. Costs include drilling, completion, and pumping equipment. Dewatering capital costs are listed in Table 18-4.

Table 18-4 Dewatering Capital ($M)


      Construction 

     2028   2029    Total 


Wells

  41.1   10.3   51.3


RIBS & Pipeline

  21.3   7.1   28.4


Electrical

  1.9   0.6   2.5


Monitor Wells

  0.2   -   0.2


Pit Barge

  5.5   -   5.5

Dewatering Total   69.9   18.0   87.9
  1.

Excludes contingency

  2.

(Montgomery & Assoc.2024)

Table 18-5 Facilities and Site General ($M)


     Pre-Construction   Construction   Sustaining

      2025     2026     2027     2028     2029     2030     2031     2032     2033     2034     Total 

Environmental and Permitting   2.0   2.0   1.0   -   -   -   -   -   -   -   5.0

Metallurgical Testing and Feasibility Study   2.0   -   -   -   -   -   -   -   -   -   2.0

Backfill Plant   -   -   -   1.3   -   -   -   -   -   -   1.0

Substation   -   -   -   3.1   -   -   -   -   -   -   3.1

Administration and Management   1.7   1.7   1.7   3.6   -   -   -   -   -   -   8.7

Electrical Power   -   -   -   7.3   -   -   -   -   -   -   7.3

Escape Hoists   -   -   -   -   0.5   0.5   -   -   -   -   1.0

Fans and Load Centers   -   -   -   0.3   0.4   0.5   0.1   0.2   -   -   1.5

Facilities Total   5.7   3.7   2.7   15.4   0.9   1.0   0.1   0.2   -   -   29.5

Excludes contingency



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Capital and Operating Costs   Page 203 





  18.2.

Closure and Reclamation

Reclamation bonding requirements during the pre-construction phase of the project are $166k per year and increase to $826k per year during construction and operation of the mine. Regulatory bonding requirements will be satisfied by the purchase of surety for an annual cost of 2% per year. Estimated reclamation costs net of salvage total $22.9M. Post closure monitoring is forecast to continue for 5 years following final reclamation at a cost of $250k per annum. Closure and reclamation costs on a per unit basis total $42.30 per gold ounce (Table 18-6).

Table 18-6 Closure and Reclamation Costs ($M)


      2025 - 

2027

    2128- 

2035

    2036 – 

2040

    2041- 

2045

   Total  

Reclamation Bonding    0.2    0.8    -    -    7.1  

Reclamation    -    -    4.6    -    22.9  

Closure and Monitoring    -    -    -    0.3    1.3  

Total    0.4    1.9    4.6    0.3    31.3  



  18.3.

Operating Costs

The unit mining costs presented in Table 18-7 are typical contractor costs for the anticipated conditions at Cove. Operating cost estimates are suitable for Initial Assessments and are accurate to within +/- 50%.

Table 18-7 Unit Operating Costs


Item    Unit Cost    Units

Stope Development    $110.59    $/ ton

Production    $80.00    $ /ton

Cemented Backfill    $37.93    $ /fill ton

Gob Fill    $13.00    $ /fill ton

Expensed Waste    $110.59         $ /waste ton     

Hauling to Roaster    $24.38    $ /ton

Trucking to Lone Tree    $14.68    $ /ton

Toll Roasting    $75.00    $ /ton

Alkaline Pressure Oxidation    $70.81    $ /ton

Table 18-8 One Way Trucking Distance to Nevada Metallurgical Plants


Name and Description    Distance (miles) 

NGM Goldstrike Roaster    107

NGM Goldstrike Autoclave    106

Jerritt Canyon Roaster (Idle)    150





 Practical Mining LLC   March 26, 2025 


 Page 204

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




Name and Description    Distance (miles) 

NGM Gold Quarry Roaster    87

NGM Twin Creeks Autoclave    101

i-80 Lone Tree Autoclave (Idle)    55

Table 18-9 Operating and Capital Costs


Category

  Total Cost  

($M)

    $/ton Processed       $/Au oz  

Mining    408   139   552

Transportation and Processing    270   91   365

Electrical Power    71   24   96

G&A, Royalties, and NV Taxes    138   49   186

By Product Credits    (3)   (1)   (4)

Total Operating Costs    883   303   1,194

Closure and Reclamation    31   11   42

Sustaining Capital    49   17   66

All in Sustaining Costs    963   330   1,303

Federal Income Tax    83   28   112

Construction Capital    157   54   213

All in Cost Excluding Pre-Construction Capex    1209   706   1,628

Pre-Construction Capex    17   6   23

All in Costs    1226   401   1,651



  18.4.

Cutoff Grade

Cut off grades vary for each mineralized lens depending on process and lens specific recovery. Cutoff grade calculations for both processes are shown in. (Table 18-10)

Table 18-10 Cutoff Grades for Alkaline POX and Roaster


      Alkaline POX    Roaster

Gold Price ($/oz)

   $2,175

Nevada Commerce and Excise Tax

   1.151%

Refining and Sales ($/oz)

   $1.85

Royalty

   2%

Recovery1

   78.5 – 95.1%    73.2 – 93.3%



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Capital and Operating Costs   Page 205 






      Alkaline POX    Roaster

Process Capacity (tpd)

   2,500    750

Mine Capacity (tpd)

   1,300

Mining Costs ($/ton)

   $139.11

Haulage Cost

   $14.71    $23.94

Process Cost

   $70.81    $75

Incremental Cutoff Grade (opt)

   0.043 - 0.052    0.050 – 0.064

Mine Limited Cutoff Grade (opt)

   0.112 - 0.136    0.121 – 0.155

Fixed Costs ($ /ton)

   $18.36    $61.19

Process Limited Cutoff Grade (opt)

   0.131 – 0.159    0.152 - 0.194





 Practical Mining LLC   March 26, 2025 


 Page 206

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  19.

Economic Analysis

The analysis of the Cove Underground project presented herein is based solely on mineral resources and not mineral reserves. Mineral resources which are not mineral reserves do not have a demonstrated economic viability. This financial analysis includes inferred mineral resources. Inferred mineral resources are too speculative to be classified as mineral reserves and the estimated quantity or grade may not be realized.

The project timeline is shown in Figure 19-1. The pre-construction work is necessary to reach a go-ahead decision. All costs during this period are being treated as sunk costs and they have been excluded from the financial analysis.

Figure 19-1 Project Timeline

LOGO

Constant dollar cash flow analysis is presented in Table 19-1 through Table 19-6 and graphically in Figure 19-3. Royalties include both the 112 % Newmont NSR and the 2% Summa Corporation NSR. The Summa royalty applies only to a portion of the mine production.

Federal income taxes of 21% apply to taxable income after appropriate deductions for depreciation and depletion. The gold percentage depletion rate is 15%. Nevada’s commerce tax is 0.051% on all revenue above 4M per annum. The excise tax is 0.75% on all revenue above $20M and less than $150M and 1.1% on revenues over $150M.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Economic Analysis   Page 207 



Table 19-1 Income Statement Includes Inferred) (Millions $US except Unit Cost per Ounce)




Pre-

Const.

   Construction   Production


 2025- 

 2027 

    2028      2029     2030     2031     2032     2033     2034     2035 

 2036- 

 2037 

   Total 

Gold Sales    0    0    87   99   151   180   392   325   222   154   1,609

Silver Sales    0    0    0   0   0   0   1   1   1   0   3

Total Revenue    0    0    87   99   151   180   393   325   222   155   1,612

Mining Cost    0    0    (26)   (24)   (67)   (67)   (67)   (58)   (61)   (38)   (816)

Haulage and Processing    0    0    (15)   (16)   (27)   (28)   (60)   (59)   (38)   (25)   (536)

Electrical Power    0    0    (8)   (9)   (9)   (8)   (9)   (9)   (9)   (8)   (71)

Site Administration    0    0    (7)   (7)   (7)   (7)   (11)   (11)   (7)   (7)   (65)

Refining and Sales    0    0    (0)   (0)   (0)   (0)   (0)   (0)   (0)   (0)   (1)

Royalties    0    0    (2)   (2)   (1)   (3)   (6)   (5)   (5)   (4)   (27)

Nevada Net Proceeds    0    0    (1)   (2)   (1)   (3)   (11)   (8)   (4)   (3)   (34)

Total Cash Cost    0    0    (59)   (60)   (115)   (119)   (170)   (154)   (127)   (86)   (891)

Cash Cost per Ounce1 ($/oz)    0    0    1,482   1,327   1,658   1,435   936   1,027   1,239   1,212   1,201

EBITDA    0    0    28   38   36   61   223   171   95   68   720

Reclamation Accrual    0    0    (2)   (2)   (3)   (3)   (8)   (6)   (4)   (3)   (31)

Depreciation    0    0    (13)   (16)   (25)   (32)   (70)   (64)   (44)   (30)   (295)

Total Cost    0    0    (74)   (78)   (143)   (154)   (247)   (224)   (175)   (120)   (1,217)

Income Tax    0    0    (3)   (5)   (2)   (6)   (32)   (22)   (11)   (7)   (83)

Net Income    0    0    10   16   6   20   113   79   37   28   312

Net of Byproduct Sales

Table 19-2 Cash Flow Statement (Includes Inferred)




Pre-

Const.

  Construction   Production



 2025- 

 2027 

   2028     2029     2030     2031     2032     2033     2034     2035      2036     2037 

 2038- 

 2045 

   Total 

Net Income    0   0   10   16   6   20   113   79   37    28   0   3   312

Depreciation    0   0   13   16   25   32   70   64   44    30   0   0   295

Reclamation    (0)   (1)   1   1   2   3   7   5   3    (2)   (5)   (15)   0

Working Capital    0   0   (7)   (0)   (6)   (0)   (6)   2   3    5   10   0   0

Operating Cash Flow    (0)   (1)   17   33   27   54   185   150   87    61   6   (12)   606

Capital Costs    (17)   (105)   (52)   (15)   (7)   (14)   (1)   (12)   0    0   0   0   (224)

Net Cash Flow    (18)   (106)   (35)   18   20   40   184   138   87    61   6   (12)   382

All in Cost 1,2 ($/oz)        0   2,893   1,804   1,828   1,723   1,159   1,300   1,387    1,353   0   0   1,658
  1.

Net of Byproduct Sales

  2.

Note: All in Cost Exclusive of Corporate Taxes, Exploration, Corporate G&A and Interest on Debt





 Practical Mining LLC   March 26, 2025 


 Page 208

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 19-3 Income Statement (Excludes Inferred) (Millions $US except Unit Cost per Ounce)






Pre-

Const.

   Construction   Production


 2025- 

 2027 

    2028      2029     2030     2031     2032     2033     2034     2035 

 2036- 

 2037 

   Total 

Gold Sales    0    0    26   29   45   41   72   60   31   17   322

Silver Sales    0    0    0   0   0   0   0   0   0   0   0

Total Revenue    0    0    26   29   45   41   72   60   31   17   323

Mining Cost    0    0    (7)   (6)   (18)   (12)   (5)   (2)   (3)   (0)   (106)

Haulage and Processing    0    0    (5)   (5)   (8)   (7)   (11)   (11)   (5)   (3)   (109)

Electrical Power    0    0    (8)   (9)   (9)   (8)   (9)   (9)   (9)   (8)   (71)

Site Administration    0    0    (7)   (7)   (7)   (7)   (11)   (11)   (7)   (7)   (65)

Refining and Sales    0    0    (0)   (0)   (0)   (0)   (0)   (0)   (0)   (0)   (0)

Royalties    0    0    (0)   (1)   (0)   (0)   (1)   (1)   (1)   (0)   (4)

Nevada Net Proceeds    0    0    0   0   0   0   (1)   (1)   0   0   (2)

Total Cash Cost    0    0    (27)   (28)   (43)   (35)   (39)   (35)   (25)   (19)   (252)

Cash Cost per Ounce1 ($/oz)    0    0    2,267   2,064   2,059   1,854   1,178   1,266   1,714   2,404   1,697

EBITDA    0    0    (1)   2   2   6   33   25   7   (2)   71

Reclamation Accrual    0    0    (3)   (3)   (4)   (4)   (7)   (6)   (3)   (2)   (31)

Depreciation    0    0    (20)   (24)   (38)   (37)   (65)   (61)   (32)   (18)   (295)

Total Cost    0    0    (50)   (55)   (85)   (76)   (111)   (103)   (59)   (38)   (578)

Income Tax    0    0    0   0   0   0   0   0   0   0   4

Net Income    0    0    (23)   (25)   (40)   (35)   (39)   (42)   (28)   (21)   (251)

Net of Byproduct Sales

Table 19-4 Table 19-5 Cash Flow Statement (Excludes Inferred)




Pre-

Const.

  Construction   Production



 2025- 

 2027 

   2028     2029     2030     2031     2032     2033     2034     2035     2036     2037 

 2038- 

 2045 

   Total 

Net Income    0   0   (23)   (25)   (40)   (35)   (39)   (42)   (28)   (21)   0   3   (251)

Depreciation    0   0   20   24   38   37   65   61   32   18   0   0   295

Reclamation    (0)   (1)   2   2   4   3   6   5   2   (3)   (5)   (15)   0

Working Capital    0   0   (3)   (0)   (2)   1   (0)   0   1   1   2   0   (0)

Operating Cash Flow    (0)   (1)   (5)   1   (0)   6   32   25   7   (6)   (2)   (12)   44

Capital Costs    (17)   (105)   (52)   (15)   (7)   (14)   (1)   (12)   0   0   0   0   (224)

Net Cash Flow    (18)   (106)   (57)   (15)   (7)   (8)   31   13   7   (6)   (2)   (12)   (180)

All in Cost 1,2 ($/oz)        0   6,842   3,394   2,600   2,828   1,410   1,910   1,925   2,615   0   0   3,389
  1.

Net of Byproduct Sales

  2.

Note: All in Cost Exclusive of Corporate Taxes, Exploration, Corporate G&A and Interest on Debt



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Economic Analysis   Page 209 



The Helen and Gap zones contain 70% and 89% inferred mineral resources respectively. The results without inferred are the result of a gross factorization of the production stream. There has been no adjustment to capital development, dewatering capital or mine facilities capital. Furthermore, there has not been any recalculation of productivities or operating costs due to the lower production rates.

Table 19-6 Financial Statistics1


      With Inferred    Without Inferred


Gold price (US$/oz)

   $2,175


Silver price (US$/oz)

   $27.25


Mine life (years)

   8


Average mineralized mining rate (tons/day)

   1,010    200


Average grade (oz/t Au)

   0.305    0.313


Average gold recovery (roaster %)

   79%    79%


Average gold recovery (autoclave %)

   86%    86%


Average annual gold production (koz)

   92    19


Total recovered gold (koz)

   740    148


Pre-development capital ($M)

   $17.3    $17.2


Mine construction capital ($M)

   $157.4    $157.4


Sustaining capital (M$)

   $49.1    $49.1


Construction Start Date

   1/1/2028

Economic Indicators Post Construction Decision 3


Cash cost (US$/oz) 1

   $1,194    $1,697


All-in sustaining cost (US$/oz)2

   $1,303    $2,240


All in cost (US$/oz) 5

   $1,635    $3,302


Project after-tax NPV5% (M$)

   $271    ($160)


Project after-tax NPV8% (M$)

   $216    ($159)


Project after-tax IRR

   30%    NA


Payback Period

   5.5 Years    NA


Profitability Index 5%4

   2.4    0.2

Financial Statistics Including Pre-Construction Period (1/1/2025 – 12/31/2027) 6


All in cost (US$/oz) 5

   $1,658    $3,419





 Practical Mining LLC   March 26, 2025 


 Page 210

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 




      With Inferred    Without Inferred


Project after-tax NPV5% (M$)

   $256    ($178)


Project after-tax NPV8% (M$)

   $198    ($177)


Project after-tax IRR

   25%    NA

Payback Period    6.8 years    NA


Profitability Index 5%4

   1.9    0.2

Notes:

  1.

Net of byproduct sales;

  2.

Excluding income taxes, construction capital, corporate G&A, corporate taxes and interest on debt;

  3.

Discounted to 2028, Construction Start;

  4.

Profitability index (PI), is the ratio of payoff to investment of a proposed project. It is a useful tool for ranking projects because it allows you to quantify the amount of value created per unit of investment. A profitability index of 1 indicates breakeven;

  5.

Excluding corporate G&A, corporate taxes and interest on debt;



  6.

Discounted to 2025;

  7.

This IA is preliminary in nature, it includes inferred mineral resources that are considered too speculative geologically to have the economic considerations applied to them that would enable them to be categorized as mineral reserves, and there is no certainty that the IA will be realized. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability;

  8.

Inferred mineral resources constitute 70 % of the Helen zone and 89% of the Gap zone. The “Without Inferred” statistics presented are a gross factorization of the mine plan without any redesign of mine excavations or recalculation of productivities and costs. Capital costs are the same for the “With Inferred” and “Without Inferred” scenarios. The “Without Inferred” scenario is presented solely to illustrate the projects dependence on inferred mineral resources.

  9.

The financial analysis contains certain information that may constitute “forward-looking information” under applicable Canadian and United States securities regulations. Forward-looking information includes, but is not limited to, statements regarding the Company’s achievement of the full-year projections for ounce production, production costs, AISC costs per ounce, cash cost per ounce and realized gold/silver price per ounce, the Company’s ability to meet annual operations estimates, and statements about strategic plans, including future operations, future work programs, capital expenditures, discovery and production of minerals, price of gold and currency exchange rates, timing of geological reports and corporate and technical objectives. Forward-looking information is necessarily based upon a number of assumptions that, while considered reasonable, are subject to known and unknown risks, uncertainties, and other factors which may cause the actual results and future events to differ materially from those expressed or implied by such forward looking information, including the risks inherent to the mining industry, adverse economic and market developments and the risks identified in Premier’s annual information form under the heading “Risk Factors”. There can be no assurance that such information will prove to be accurate, as actual results and future events could differ materially from those anticipated in such information. Accordingly, readers should not place undue reliance on forward-looking information. All forward-looking information contained in this Presentation is given as of the date hereof and is based upon the opinions and estimates of management and information available to management as at the date hereof. Premier disclaims any intention or obligation to update or revise any forward-looking information, whether as a result of new information, future events or otherwise, except as required by law;



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Economic Analysis   Page 211 



Figure 19-2 Gold Production and Unit Costs (With Inferred)



LOGO

Figure 19-3 Cash Flow Waterfall Chart Including Pre-Construction Costs (With Inferred)



LOGO





 Practical Mining LLC   March 26, 2025 


 Page 212

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 19-4 Gold Production and Unit Costs (Without Inferred)



LOGO

Figure 19-5 Cash Flow Waterfall Chart Including Pre-Construction Costs (Without Inferred)



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Economic Analysis   Page 213 



Figure 19-6 NPV 5% Sensitivity



LOGO

Figure 19-7 Profitability Index 5% Sensitivity



LOGO





 Practical Mining LLC   March 26, 2025 


 Page 214

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Figure 19-8 IRR Sensitivity



LOGO



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Adjacent Properties   Page 215 



20. Adjacent Properties

There are no adjacent properties with a similar geologic setting to the McCoy/Cove project.





 Practical Mining LLC   March 26, 2025 


 Page 216

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



21. Other Relevant Data and Information

The authors are not aware of any other relevant technical data or information pertaining to the Cove Project necessary to make this Technical Report Summary understandable and not misleading.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Interpretation and Conclusions   Page 217 



22. Interpretation and Conclusions

The Cove Project is in a politically stable mining friendly jurisdiction with a long history of Mineral Resource extraction. The Project is potentially economic. Results from this IA indicate a post construction decision NPV 5% of $274M (excluding $17.3M pre-development capital) and an IRR of 30%. The project should proceed with the completion of environmental baseline studies, permitting activities, underground delineation diamond drilling, and feasibility study in support of a construction decision.

Metallurgical Testing



  1.

Head assays for the both the Helen Zone and Gap indicated that the gold in the two resources will likely be finely disseminated and not amenable to gravity gold recovery;



  2.

The mineralogy of the Helen and Gap resources differ in two significant areas, the first being that the Helen appears to be lower in arsenic content than the Gap resource and that the Gap resource appears to be lower on average in TCM and TOC than the Helen resource;



  3.

The Helen composite arsenic assays indicate the resource is lower in arsenic content that the Gap resource;



  4.

The Helen and Gap resources based on the composites tested appear to be doubly refractory to conventional cyanidation and require both sulfide oxidation and passivation of active carbonaceous mineralization to significantly increase gold extractions;



  5.

Based on the composites tested the Helen Zone appears to generally be more amenable to roasting and CIL processing;



  6.

Based on the composites tested, the Gap resource appears to generally be more amenable to pressure oxidation and CIL processing;



  7.

The data set was too small to establish any clear relations between mineralogy and metal head grade and extractions for either resource although it is clear that mineralogy factors such as arsenic content and TCM or TOC are influencing extractions using either roasting and calcine cyanidation or pressure oxidation and residue cyanidation.

Toll Processing



  1.

The feed specifications appear to be somewhat rigid and could preclude some material being sent to the toll processor. Blending may allow shipment of some off-specification material provided appropriate material is available for onsite blending prior to shipping to the toll processor;



  2.

The terms appear to be consistent and typical with those encountered in the industry; and





 Practical Mining LLC   March 26, 2025 


 Page 218

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



  3.

The recovery terms appear to be the result of analyzing the metallurgical data provided by i-80 Gold.

Mining and Infrastructure



  1.

Mining conditions typical for sedimentary deposits in the north-east Nevada extensional tectonic environments are anticipated;

  2.

Helen Zone dewatering will require five wells and reach pumping rates of 10,500 gpm; and

  3.

Gap Zone dewatering will require ten wells and reach pumping rates of 26,000 gpm for a total projected pumping rate of 36,500 gpm.

Financials

The financial analysis presented in this IA is an evaluation of the Cove Mineral Resource. Mineral Resources, which are not Mineral Reserves, do not have demonstrated economic viability. This financial analysis includes inferred mineral resources. Inferred mineral resources are too speculative to be classified as mineral reserves and the quantity or grade estimated may not be realized.



  1.

Capital requirements total $206.5M excluding $17.3M in pre-construction capital;

  2.

The project achieves NPV 5% of $273.7M and NPV 8% of $215.6M;

  3.

When including the pre-construction capital, the NPV 5% reduces to $255.9M and the NPV 8% is $197.8M; and,

  4.

The estimated payback period is 6.8 years with an IRR of 30%.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Interpretation and Conclusions   Page 219 





  22.1.

Risks and Opportunities

The authors have identified the following risks and opportunities to the project.

Table 22-1 Project Risks



Risks



Impact



Mitigation Measure


Agencies may identify deficiencies in the baseline environmental data   Project delays   Proceed with baseline data collection and engineering to support both possibilities

Dewatering rates may increase   Additional facilities required   Additional hydrology testing and modeling

Water quality levels above Tier I standards for infiltration   Water treatment required, increased capital costs   Geochemical study of RIBs to ascertain the possibility of attenuation

Water rights Availability   Project delays and increased costs   Continue water rights acquisition and seek agreements with local ranches

Table 22-2 Opportunities



Opportunities



Impact


Senior level government initiative to streamline the permitting process   Earlier production and increased NPV

Resource additions in the Gap Extension area   Increased ounce production and improved project economics

2201 Zone could add higher grade mineralization to the mine plan utilizing common infrastructure   Increased ounce production and improved project economics

Develop grade-thickness mineralization model   Optimize mine design



  22.2.

Work Program

Activities at Cove are structured to complete resource definition drilling to a level that will support the feasibility study. Secondly the program will advance the project to a record of decision on the environmental impact statement. Lastly the program will complete the feasibility study and make a recommendation on the construciton decision. Program costs are listed in Table 22-3.





 Practical Mining LLC   March 26, 2025 


 Page 220

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



Table 22-3 Work Program Estimated Costs (US$M)





Description

  2025     2026     2027     Total  


Environmental, Permitting and Feasibility

  4.0     2.0     1.0     7.0  


Preproduction Expense

  1.7     1.7     1.7     5.1  


Resource Conversion Drilling

  2.0     -          2.0  


Contingency

  1.7     0.9     0.7     3.3  



Program Total

  9.4     4.6     3.4     17.3  



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   Recommendations   Page 221 



23. Recommendations

The project pre-feasibility or feasibility study should address the following components. The work should be planned to minimize the permitting time required to achieve positive cash flow.

Resource Delineation and Exploration



  1.

Completion of the underground drilling program;

  2.

Update the resource model;

  3.

Expansion of the Gap and 2201 Zones could add high grade mineralization to the project which would be accessed through the planned Helen and Gap infrastructure.

Dewatering



  1.

Detailed review and selection of well locations, and;

  2.

Fine tune hydrogeologic model, pumping rates and drawdown rates.

Mining



  1.

A geotechnical characterization program should be implemented along with resource delineation:

  a.

The objectives of the program are to characterize the mining horizons using the Rock Mass Rating (RMR) system;

  b.

Collect downhole Acoustic Tele Viewer (ATV) drill logs to collect joint orientation data for mine designs and accurately estimate ground support requirements; and,

  c.

Collect full core samples for physical rock property testing.

  2.

Complete additional testing of potential back fill sources to optimize the Cemented Rock Fill (CRF) mix design;

  3.

Run trade off studies between aquifer pumping rates and alternative mining scenarios; and,

  4.

Complete a ventilation simulation to predict Diesel Particulate Matter (DPM), carbon monoxide, and other contaminate concentrations.

Metallurgical Testing



  1.

Additional metallurgical testing will be needed to thoroughly investigate the variability and viability of Helen and Gap resources to evaluate pressure oxidation with CIL cyanidation under Lone Tree conditions. Testing should also include baseline CIL tests and roasting testing as a comparison. Sampling objectives will include:





 Practical Mining LLC   March 26, 2025 


 Page 222

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 





Samples from GAP and Helen zones and their major lithological units; Favret, Panther Dolomite. The samples should also address spatial variability within each zone.





Sample intrusive formations in each zone.





Assess variability of the responses to roasting and calcine cyanidation across the resources;





Assess variability of the responses to pressure oxidation and residue cyanidation across the resources;





Testing should attempt to establish head grade and extraction relations for use in more detailed resource modelling;





Mineralogy impacts need to be established and geologic domains within each resource need to be determined, and;





Additional comminution data should be collected to assess hardness variability within the zones and any potential impacts on throughput in the Lone Tree process plant.



  2.

The resource model should be advanced to include arsenic, TCM, TOC, mercury, lead, zinc, total copper selenium, barium, cobalt, nickel, and cadmium as these will be important for predicting grades if toll process offsite is used and potentially for estimating extractions within the resources;

  3.

The estimated cost for the suggested next phase metallurgical program is to $850,000 based on current market pricing.

  5.

Development of a preliminary or conceptual onsite blending program is recommended to evaluate if on specification material can consistently be supplied to a toll processor; and,

Permitting and Development Decision



  1.

Baseline data collection in support of the Helen EA and GAP EIS should be done simultaneously to reduce the Project’s critical path and bring forward production; and.

  2.

The project should proceed directly with a feasibility study to support a construction decision.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   References   Page 223 



24. References

Amendment to Minerals Lease and Agreement between Newmont McCoy Cove Limited and Victoria Resources (US) Inc, September 29, 2008.

Briggs, D. F., McCoy-Cove Complex: Mining operations report prepared by Geomineinfo, 2001.

Canadian Institute of Mining, Metallurgy and Petroleum (CIM) Definition Standards for Mineral Resources and Mineral Reserves, adopted by the CIM Council on May 10, 2014.

Emmons, D. L., and Eng, T. L., Geology and Mineral Resources of the McCoy Mining District, Lander County, Nevada: Text to accompany Nevada Bureau of Mines Map 103, 1995.

Exhibit A to McCoy Cove Earn in Agreement between Premier Gold Mines Ltd. And Barrick Gold Corp., January 10, 2018

Hydrologic Consultants, Inc. 1990. Conceptual hydrogeologic model of Cove pit area as of June, 1990. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1992. Updated conceptual hydrogeologic model and estimates of future dewatering costs as of September 1992. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1993. Status report Cove pit dewatering program. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1994. Updated conceptual hydrogeologic model and estimate of future dewatering costs for Cove pit. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1995. Updated conceptual hydrogeologic model and estimate of future dewatering costs for Cove pit as of April 1995. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1997a. Hydrogeologic framework and numerical ground-water flow modeling of McCoy/Cove Mine, Lander county, Nevada. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1997b. Updated conceptual hydrogeologic model and predicted dewatering requirements for remaining life of McCoy/Cove mine. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 1999. 1999 update of hydrogeologic framework and numerical ground-water flow modeling of McCoy/Cove Mine, Lander County, Nevada. Hydrologic Consultants, Inc, Denver.

Hydrologic Consultants, Inc. 2001. 2001 update of numerical ground-water flow modeling for McCoy/Cove mine, Lander county, Nevada. Hydrologic Consultants, Inc, Denver.

Itasca 2016. Numerical groundwater model and predictions of Cove pit-lake infilling, McCoy Cove Mine. Itasca, Denver.

Johnston, M. K., Geology of the Cove Mine, Lander County, Nevada, and a Genetic Model for the McCoy-Cove Magmatic-Hydrothermal System, University of Nevada, Reno, Ph.D. dissertation, May 2003.





 Practical Mining LLC   March 26, 2025 


 Page 224

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



John, D.A., Henry, C.D., and Colgan, J.P., Magmatic and tectonic evolution of the Caetano caldera, north-central Nevada: A tilted, mid-Tertiary eruptive center and source of the Caetano Tuff, Geosphere, v.4, no. 1, 2008

Kappes Cassiday & Associates, Cove Project Report of Metallurgical Test Work, December 2008.

Kappes Cassiday & Associates, Cove Project Report of Metallurgical Test Work, August 2009.

Kappes Cassiday & Associates, Cove Project Report of Metallurgical Test Work, November 2009.

Kuyper, B. A., Mach, L. E., Streiff, R. E., and Brown, W. A., Geology of the Cove Gold-Silver Deposit: Society for Mining, Metallurgy, and Exploration, Inc., 1991.

Madrid, R. J., Anatomy of the Helen Gold System, a Carlin –Type Intersection Zone, McCoy-Cove Mining District, North Central Nevada. Victoria Resources, 2009.

McDonald, M.G, and A.W. Harbaugh 1988. Techniques of water-resources investigations of the United States Geological Survey, Chapter A1, A modular three-dimensional finite-difference ground-water flow model. USGS.

Memorandum of Agreement between Newmont Corporation and Victoria Resources (US) Inc., June 15, 2006.

Minerals Lease and Agreement between Newmont McCoy Cove Limited and Victoria Resources (US) Inc June 15, 2006.

Mining Deed from Echo Bay Exploration Inc. to Newmont Mining Corporation, February 7, 2003.

Mine Development Associates, Technical Report Cove Project Lander County, Nevada, U.S.A., October 24, 2008.

Montgomery and Associates, Report Summary of Field Program at Helen and Gap Deposits, Cove Helen Underground, April 10, 2020.

Montgomery and Associates 2023a. Baseline spring and seep survey. Montgomery and Associates, Reno. January 2023.

Montgomery and Associates 2023b. Flow modeling for the McCoy-Cove Project. Montgomery and Associates, Reno. December 2023.

Montgomery and Associates 2024a. 2023 Baseline seeps, springs, and streams survey report. Montgomery and Associates, April 2024.

Montgomery and Associates 2024b. Flow modeling for the Cove Gap/Helen Project. Montgomery and Associates Reno.

Montgomery and Associates 2024c. Analysis of 2023 long-term, multi-well aquifer test, October 2023 through November 2023. Montgomery and Associates, Reno. March 2024.



 Practical Mining LLC   March 26, 2025 


 i-80 Gold Corp   References   Page 225 



Montgomery and Associates 2025. 2024 Baseline seeps, springs, and streams survey report. Montgomery and Associates, January 2025.

Piteau Associates USA, Cove Helen Hydrogeologic Characterization, Numerical Model Update and Preliminary Dewatering Plan, Luther, A., March 23, 2018.

Quantum Electric, Cove Helen – Electrical System Report, Elquist, J. A. August 8, 2017.

Purchase Agreement Between Newmont USA Ltd. And Premier Gold Mines Ltd., July 31, 2014

Roscoe Postle Associates Inc., Preliminary Assessment of the Cove Project, Nevada, Prepared by Valliant, W., Evans, L., and Bergen, R.D., for Premier Gold Mines Limited, October 3, 2012.

Roscoe Postle Associates Inc., Technical Report on the McCoy-Cove Gold Project, Lander County, State of Nevada, U.S.A., Evans, L., and Tudorel, C., April 15, 2017.

Royalty Deed from The Howard Hughes Corporation to Echo Bay Inc., December 17, 2007.

Second Amendment to Minerals Lease and Agreement between Newmont McCoy Cove Limited and Victoria Resources (US) Inc, March 29, 2009.

Silberling, N. and Roberts, R.J., Pre-Tertiary stratigraphy and structure of northwestern Nevada: Geol. Soc. America Special Paper 72, 58 p., 1962

Struhsacker, D. W., Overview of Permitting Requirements for Mineral Projects in Nevada, July 2009.

United States Securities and Exchange Commission, Rule 1300 of Regulation S-K promulgated under the U.S. Securities Act of 1933, as amended, Federal Register, Vol. 83, No. 246, December 26, 2018.

Wolverson, N. J., Review of Cove-McCoy Drilling QA/QC and Procedures, December 9, 2007.





 Practical Mining LLC   March 26, 2025 


 Page 226

S-K1300 Initial Assessment & Technical Report

Summary for the Cove Project, Lander County,

Nevada

  i-80 Gold Corp 



25. Reliance on Information Provided by the Registrant

The Consultant’s opinion contained herein is based on information provided to the Consultants by i-80 throughout the course of the investigations. Table 24-1 of this section of the Technical Report Summary will:



  1)

Identify the categories of information provided by the registrant;

  2)

Identify the particular portions of the Technical Report Summary that were prepared in reliance on information provided by the registrant pursuant to Subpart 1302 (f)(1), and the extent of that reliance; and

  3)
